Summary of Contents for EarthQuake MiniMe DSP FF-12

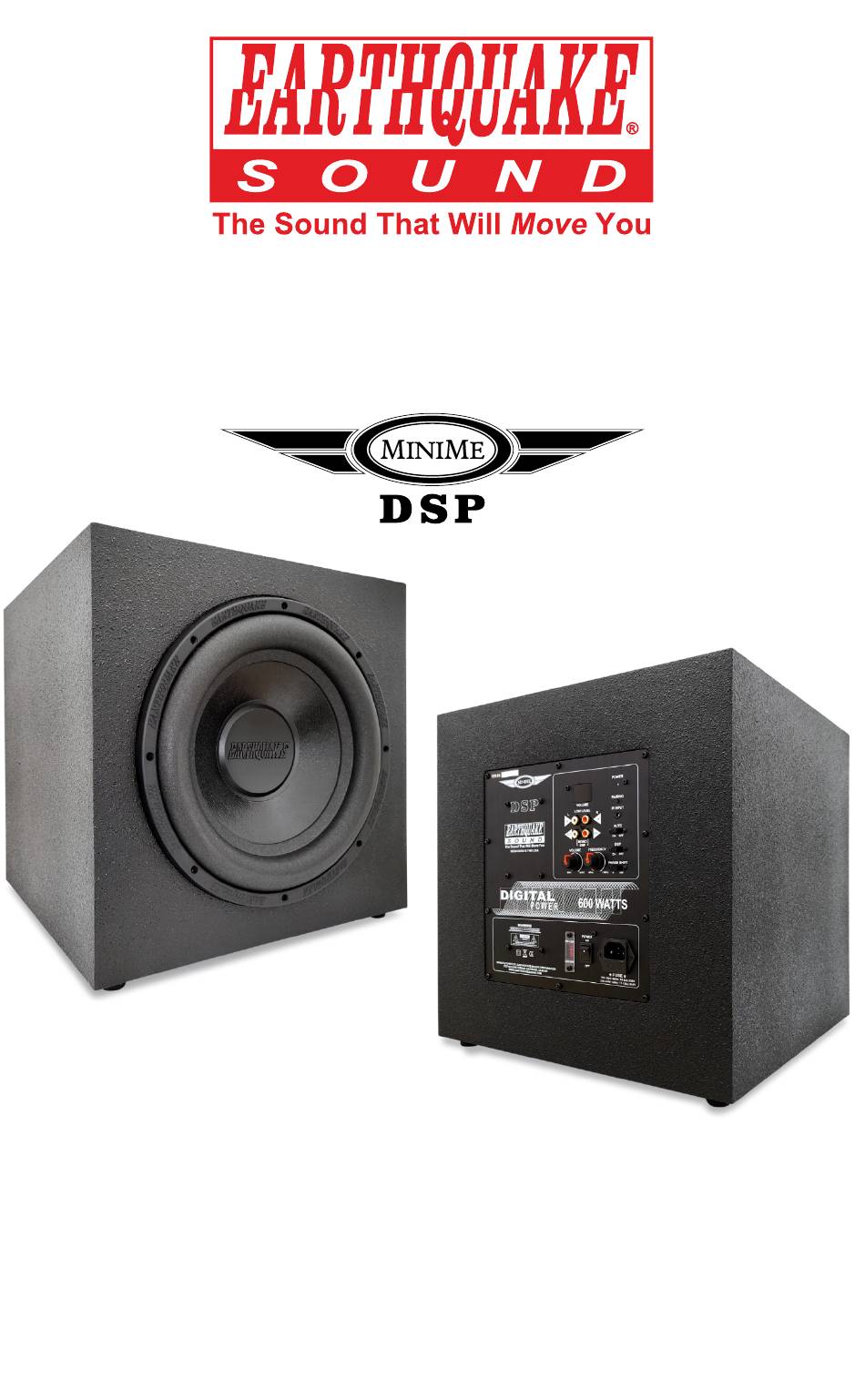

- Page 1 MiniMe DSP FF-12 USER MANUAL Earthquake Sound Corp. Phone: (510) 732-1000 www.earthquakesound.com www.earthquakesoundshop.com...
-
Page 2: Table Of Contents
Set your audio system to a comfortable loudness level. Earthquake Sound Corp. Does not assume liability for damages resulting from the direct use of Earthquake Sound audio product(s) and urges users to play volume at moderate levels. -
Page 3: About Earthquake Sound
He pushed technological boundaries to the limit to create the kind of subwoofer he could live with. Earthquake quickly created a name for itself in the car audio industry and became well known for its powerful subwoofers and amplifiers. In 1997, using his existing expertise in the audio industry, Joseph Sahyoun expanded his company to home audio production. -
Page 4: Safety & Handling
SAFETY INSTRUCTIONS SAFETY FIRST This document contains general safety, installation, and operating instructions for the MiniMe DSP subwoofer. It is important to read this user’s manual before attempting to use this product. Pay particular attention to the safety instructions. SYMBOLS EXPLAINED Appears on the component to indicate the presence of uninsulated, dan- gerous voltage inside the enclosure - that may be sufficient to constitute a risk of shock. - Page 5 We further suggest the following. • wear a back support belt if needed when carrying/lifting the MiniMe DSP FF-12. • If possible, get someone to help you move the MiniMe DSP FF-12 subwoofer.
-
Page 6: Unpacking Your Subwoofer
• Keep the original carton and packing materials for future shipment storage. • Check for any visual signs of damage. If you encounter any concealed damage, consult your Earthquake Sound dealer before proceeding with unit installation. • Retain the sales receipt as it establishes the duration of the limited warranty and provides information for insurance purposes. -
Page 7: Introduction
DSP module. Premium Long Throw Drivers The active driver installed in every MiniMe DSP FF-12 is specifically designed for accurate reproduction of bass and sub-bass frequencies. Built with TCT (Turbine Cooled Trans- ducer) technology, stitched tensile leads, anti-wobble cone construction, and reinforced dust cap, the MiniMe DSP driver effortlessly produces phenomenal bass with extremely low distortion while staying cool. -
Page 8: Amplifier Plate Overview
AUTO Sensing is on/off and whether signal is being fed to the amplifier). Note that this LED will only light up when the The MiniMe DSP FF-12 can operate in main power switch is in the ON position. both 110-120V or 220-240V environments. - Page 9 (11) Phase Shift Selector This 0–180º switch allows the user to syn- chronize the subwoofer to obtain a better and more precise bass response. MiniMe DSP FF-12 Manual 9...
-
Page 10: Placing Your Subwoofer(S)
PLACING YOUR SUBWOOFER(S) You often hear the term “subwoofers are The black arrows rep- non-directional.” This is not true. It is resent the sub-har- harder to choose subwoofer placement monic frequencies when low frequencies are crossed. The The gray arrows repre- wider the room, the more directional the subwoofer. -
Page 11: Connecting Your Subwoofers
CONNECTING THE MINIME DSP LOW LEVEL SETUP - SINGLE SUB This is the best way to drive an audio sig- nal to your MiniMe DSP FF-12 subwoofer. Today, all signal processors (5.1, 6.1, etc.) come equipped with built-in pre-ampli- MINIME DSP... - Page 12 LOW LEVEL SETUP - DUAL SUBS For a more realistic sound stage and Using another “Y” RCA cable, connect the greater theater experience, we suggest SUB PRE OUT 1 of the receiver to the LOW having two (2) subwoofers and running LEVEL INPUT of the right side MiniMe them in stereo.
-
Page 13: Room Tuning With Iwoofer™ App
• Preset Import/Export Features Main Menu • Room Correction* Once connected, the iWoofer™ applica- • SPL Meter* tion will automatically take you into the *iWoofer Pro Features Only main menu. The iWoofer™ menu features and options are listed. MiniMe DSP FF-12 Manual 13... - Page 14 Once selected, slide the band left or right ROOM TUNING WITH iWoofer™ to change the frequency and up or down to control the gain. You can also use two fin- gers in a zoom in and zoom out fashion to Main Menu Cont’d change the Q factor and PEQ bandwidth.
- Page 15 SPL and only compen- sates for the room reflection and not the woofer/box itself. The final reference, Linear, creates as flat as a response curve MiniMe DSP FF-12 Manual 15...
-
Page 16: Dimensions And Specifications
DIMENSIONS AND SPECIFICATIONS - MINIME DSP FF-12 15.56" ( 395mm ) 16.8" ( 427mm ) DIMENSIONS INCLUDE AMPLIFIER PROTRUSIONS FEET Sealed Front Firing ENCLOSURE TYPE 600 Watts MAX AMPLIFIER POWER 12" Long Throw Active Driver DRIVERS 18Hz–115Hz FREQUENCY RESPONSE 40Hz–160Hz... -
Page 17: Warranty Information
• Each product sent in for repair must be packaged in its original packaging. Otherwise, repackaging charges will apply in addition to the labor, parts, and shipping charges. (C) Earthquake agrees to repair or replace - at our discretion - all such defective products/parts subject to the following provisions: •... - Page 18 A copy of the original sales receipt must accompany the product(s) returned for service. Ship the product(s) to: Earthquake Sound Corporation. 2727 McCone Avenue. Hayward, CA 94545 The customer is responsible for the cost of shipping the product(s) to Earthquake Sound Corporation (G) Disputes Resolution: All disputes - between clients and Earthquake Sound Corporation - resulting from the one (1) year limited warranty policy must be resolved according to the laws &...
-
Page 19: For Your Records
FOR YOUR RECORDS Date of Purchase: __________________________________________ Authorized Dealer/Installer Info: Name: __________________________________________ Address: __________________________________________ __________________________________________ Phone: __________________________________________ Serial Number: Notes: MiniMe DSP FF-12 Manual 19... - Page 20 Earthquake Sound reserves the right to amend details of the specifications without notice @ Copyright Earthquake Sound Corporation www.earthquakesound.com www.earthquakesoundshop.com 2727 McCone Avenue, Hayward, CA 94545 USA Phone: 510-732-1000...
