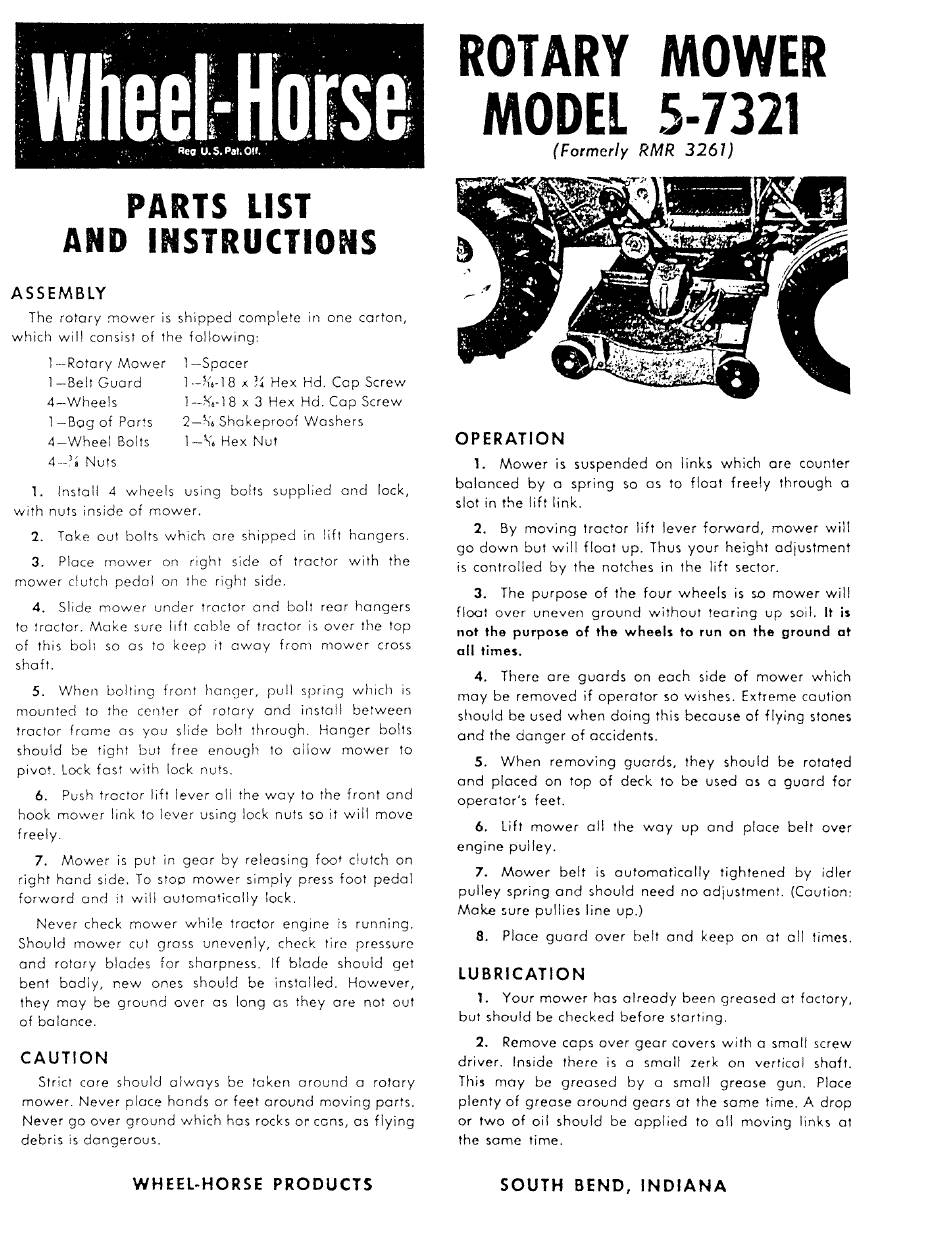

PARTS liST
AND INSTRUCTIONS
ASSEMBLY
The rotary mower is shipped complete in one carton,
which will consist of the following:
1-Rotary Mower
1-Belt Guard
4-Wheels
1-Bog of Parts
4-Wheel Bolts
4
~~)~
Nuts
1-Spacer
1·-:,,-1B x
~~
Hex Hd. Cop Screw
1
~-:{,-lB
x 3 Hex Hd. Cap Screw
2-\', Shakeproof Washers
1-1.{,
Hex Nut
1.
Install 4 wheels using bolts supplied and lock,
with nuts inside of mower.
2.
Toke out bolts which are shipped in lift hangers.
3.
Place mower on right side of tractor with the
mower clutch pedol on the right side.
4.
Slide mower under tractor and bolt rear hangers
to troctor. Make sure 11ft coble of troctor is over the top
of this bali so os to keep it owoy from mower cross
shaft.
5.
When bolting front honger, pull spring which is
mounted to the center of rotary ond instoll between
tractor frome os you slide bolt through. Honger bolts
should be tight but free enough to allow
mower
to
pivot. Lock fast with lock nuts.
6.
Push tractor lift lever all the woy to the front and
hook
mower
link to lever using lock nuts so it will move
freely.
7.
Mower is put in gear by releasing foot clutch on
right hond side. To stop mower simply press foot pedol
forward ono it will outomotically lock.
Never check mower while tractor engine is running.
Should mower cut grass unevenly, check tire rressure
and rotary blades for sharpness. If blade should get
bent badly, new ones should be installed. However,
they may be ground over as long as they are not out
of balance.
CAUTION
Strict core should always be token around a rotary
mower.
Never place hands or feet around moving parts.
Never go over ground which has rocks or cons, os flying
debris is dangerous.
WHEEL-HORSE PRODUCTS
ROTARY MOWER
MODEL 5-7321
(Formerly RMR
3261)
OPERATION
1.
Mower is suspended on links which are counter
balanced by a spring so os to floot freely through a
slot in
t~e
lift link.
2.
By moving tractor lift lever forward, mower will
go down but will float up. Thus your height adjustment
is controlled by the notches in the lift sector.
3.
The purpose of the four wheels is
s.o
mower will
floot over uneven ground without tearing up soil. It
is
not the purpose of the wheels to run on the ground at
all times.
4.
There are guards on each side of mower which
may be removed if operator so wishes. Extreme caution
should be used when doing this because of flying stones
and the danger
of
accidents.
5.
When removing guards, they should be rotated
and placed on top of deck to be used
m
a guard for
operator's feet.
6.
Lift mOwer all the way up and place belt over
engine pulley.
7.
Mower belt is automatically tightened by idler
pulley spring and should need no adjustment. (Caution:
Make sure pullies line up.)
S.
Place guard over belt and keep on at all times.
LUBRICATION
1.
Your
mower
has already been greased at factory,
but should be checked before starting.
2.
Remove caps over gear covers with a small screw
driver. Inside there is a small zerk on verticol shaft.
This may be greased by a small grease gun. Place
plenty of grease around gears at the same time. A drop
or two of oil should be applied to all moving linh at
the same time.
SOUTH BEND, INDIANA
