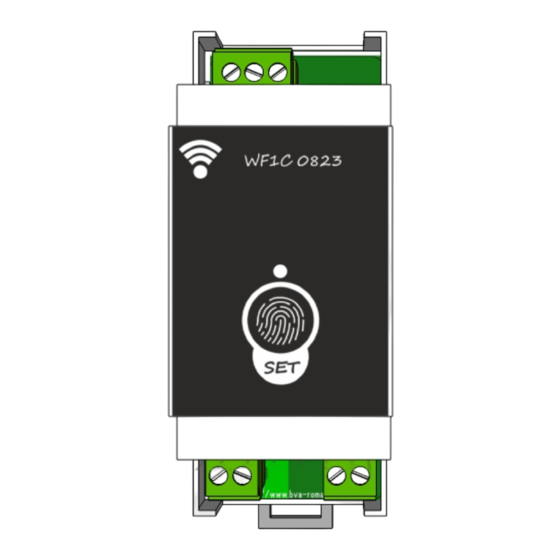

BVA WF1C 0823 User Manual

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
WF1C 0823
MANUAL DE UTILIZARE
2014/35/EU Low voltage Directive(LVD)
2014/30/EU Electromagnetic Compatibility Directive (EMC)
2011/65/EU Hazardous Substance Directive (ROHS)
Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF1C 0823 and is the answer not in the manual?

Questions and answers

Related Manuals for BVA WF1C 0823

Summary of Contents for BVA WF1C 0823

  • Page 1 WF1C 0823 MANUAL DE UTILIZARE 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com...
  • Page 2 WF1C 0823 PERICOL. Acest semn atrage atentia asupra unor posibile pericole/daune pentru persoane ATENTIE. Acest semn atrage atentia asupra unor posibile pericole/daune pentru mediu. ATENTIE. Acest semn atrage atentia asupra unor posibile pericole/daune pentru dispozitiv. Acest dispozitiv este conceput pentru controlul wireles prin intermediul internetului a diferitor echipamente de iluminat, pompe, ventilatoare, ETC.
  • Page 3 WF1C 0823 Montare: Dispozitivul se monteaza aplicat cu ajutorul sinei omega (sina DIN) in tablouri inchise / deschise, pe perete ori in orice alt loc care permite montarea acestui dispozitiv. Se vor respecta cerintele de mediu descrise in fisa tehnica.
  • Page 4 WF1C 0823 57.50mm 2.264in 36.30mm 1.429in 42.56mm 1.676in SECTIUNE A-A SECTIUNE B-B SCARA 1 : 1 SCARA 1 : 1 pag.4...
  • Page 5 0 ore si o min la 23 ore si 59 min cu repetare Setare scanarii smart permite integrarea intr-un scenariu smart cu alte dispozitive BVA, SONOFF, NEXTION. Partajare control permite partajarea controlului dispozitivului cu alti utilizatori.
  • Page 6 WF1C 0823 FISA TEHNICA Firmware PSF-B02 Cipul principal ESP8285 Tip de rețea fără fir STA/AP/STA+AP Mecanism de criptare WEP/WPA-PSK/WPA2-PSK Tipul de criptare WEP64/WEP128/TKIP/AES Actualizare firmware OTA Standard wireless IEEE 802.11b/g/n Gama de frecvente 2.412GHz-2.484GHz Puterea transmisiunii 802.11b: 20±2dBm (@11Mbps) 802.11g: 17±2dBm (@54Mbps) 802.11n: 14±2dBm (@HT 20, MCS 7)
  • Page 7 Imax 6A-230VAC, 300VDC . U1 V1 W1 U2 V2 W2 Pentru sarcini rezistive mai mari de 6A sau pentru sarcini inductive, folositi dispozitivul WF1C 0823 impreuna cu contactori de putere adecvati aplicatiei dvs. asa cum este exemplificat in schita de mai sus. pag.7...
  • Page 8 Pentru versiunea Android, trebuie să porniți WiFi pe telefon înainte de a adăuga un dispozitiv. Apăsați lung butonul „SET” (7 sec) pe dispozitivul WF1C 0823 până când indicatorul LED verde lumineaza intermitent (vezi fisa tehnica). Faceți clic pe pictograma Alegeti modul de Alegeti „adaugati un...
  • Page 9 WF1C 0823 INROLAREA DISPOZITIVELOR IN APLICATIA MOBILA Conectati-va la hotspotul ITEAD-XXXXXXXXXX si introduceti parola 12345678. Daca totul a decurs bine, dupa cateva secunde veti fi notificat despre inrolarea dispozitivului in aplicatie si veti putea continua cu configurarea dispozitivul. Un dispozitiv are un singur proprietar. Dacă ați adăugat cu succes un dispozitiv la contul dvs.,nu veti putea adăuga acest dispozitiv la alt cont decât dacă...
  • Page 10 WF1C 0823 Accesand dispozitivul nou Accesand meniul contextual Pentru stergerea inrolat in aplicatie, veti „cele trei puncte“ din dispozitivului derulati avea acces la comenzile coltul dreapta sus, veti pana in josul paginii. manuale, dar si la cele putea vizualiza informatii automatizate.
  • Page 11 WF1C 0823 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Fabricat in ROMANIA www.bva-romania.com / office@bva-romania.com / tel +40774685114 pag.11...
  • Page 12 WF1C 0823 USER MANUAL 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com...
  • Page 13 WF1C 0823 DANGER. This sign draws attention to possible dangers/damages for people CAREFUL. This sign draws attention to possible dangers/damages for the environment. CAREFUL. This sign draws attention to possible dangers/damages for the device. This device is designed for wireless control via the Internet a various lighting equipment, pumps, fans, ETC.
  • Page 14 WF1C 0823 Mounting: The device is mounted applied using the omega rail (DIN rail) in closed /open pannels, on the wall or in any other place that allows the installation of this device. The environmental requirements described in the technical sheet will be respected.
  • Page 15 WF1C 0823 57.50mm 2.264in 36.30mm 1.429in 42.56mm 1.676in SECTIUNE A-A SECTIUNE B-B SCARA 1 : 1 SCARA 1 : 1 pag.4...

  • Page 16: Data Sheet

    0 hours and one minute to 23 hours and 59 minutes with repetition Smart scan setting allows integration in a smart scenario with others BVA, SONOFF, NEXTION devices. Control sharing allows you to share control of your device with others users.
  • Page 17 WF1C 0823 DATA SHEET PSF-B02 firmware ESP8285 main chip Wireless network type STA/AP/STA+AP WEP/WPA-PSK/WPA2-PSK encryption mechanism Encryption type WEP64/WEP128/TKIP/AES OTA firmware update IEEE 802.11b/g/n wireless standard Frequency range 2.412GHz-2.484GHz Transmission power 802.11b: 20±2dBm (@11Mbps) 802.11g: 17±2dBm (@54Mbps) 802.11n: 14±2dBm (@HT 20, MCS 7) Reception sensitivity 802.11b: -91 dBm (@11 Mbps, CCK) 802.11g: -75 dBm (@54Mbps,...

  • Page 18: Connection Diagram

    Imax 6A-230VAC, 300VDC. U1 V1 W1 U2 V2 W2 For resistive loads greater than 6A or for inductive loads, use the WF1C 0823 device together with power contactors suitable for your application as exemplified in the sketch above. pag.7...
  • Page 19 For the Android version, you need to turn on WiFi on your phone before adding a device. Long press the "SET" button (7 sec) on the WF1C 0823 until the indicator Green LED flashes (SEE DATA SHEET). Click the icon Choose the mode of Choose "add a...
  • Page 20 WF1C 0823 REGISTRATION OF DEVICES IN THE MOBILE APPLICATION Connect to the ITEAD-XXXXXXXXX hotspot and enter the password 12345678. If everything went well, after a few seconds you will be notified about the enrollment of the device in the mobile application and you will be able to continue configuring the device.
  • Page 21 WF1C 0823 Accessing the new device Accessing the context menu For deletion enrolled in the application, "the three points" of device scroll down you will have access to the upper right corner, you will to the bottom of the manual commands,but also to have access to information page.
  • Page 22 WF1C 0823 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) made in ROMANIA www.bva-romania.com / office@bva-romania.com / tel +40774685114 pag.11...
