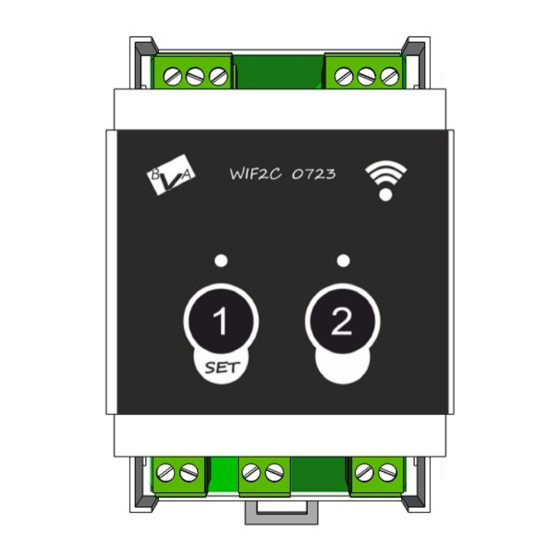

WF2C 0723
MANUAL DE UTILIZARE
2014/35/EU Low voltage Directive(LVD)
2014/30/EU Electromagnetic Compatibility Directive (EMC)
2011/65/EU Hazardous Substance Directive (ROHS)
Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF2C 0723 and is the answer not in the manual?

Questions and answers

Related Manuals for BVA WF2C 0723

Summary of Contents for BVA WF2C 0723

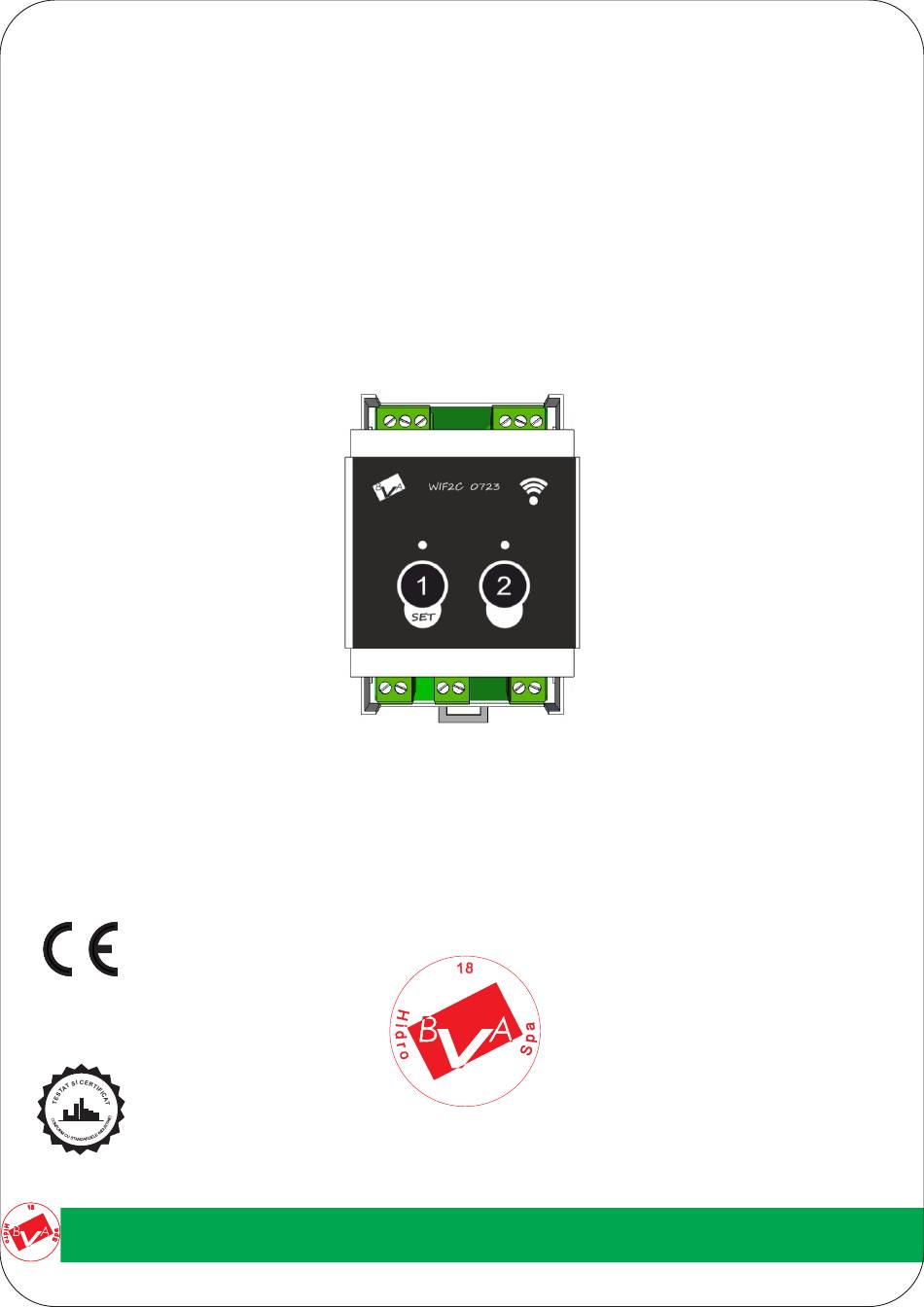

  • Page 1 WF2C 0723 MANUAL DE UTILIZARE 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com...
  • Page 2 WF2C 0723 PERICOL. Acest semn atrage atentia asupra unor posibile pericole/daune pentru persoane ATENTIE. Acest semn atrage atentia asupra unor posibile pericole/daune pentru mediu. ATENTIE. Acest semn atrage atentia asupra unor posibile pericole/daune pentru dispozitiv. Acest dispozitiv este conceput pentru controlul wireles prin intermediul internetului a diferitor echipamente de iluminat, pompe, ventilatoare, ETC.
  • Page 3 WF2C 0723 Montare: Dispozitivul se monteaza aplicat cu ajutorul sinei omega (sina DIN) in tablouri inchise / deschise, pe perete ori in orice alt loc care permite montarea acestui dispozitiv. Se vor respecta cerintele de mediu descrise in fisa tehnica.
  • Page 4 MV1121 57.50mm 2.264in 42.70mm 1.681in 53.30mm 2.098in SECTIUNEA B-B SCARA 1 : 1 SECTIUNEA A-A SCARA 1 : 1 pag.4...
  • Page 5 0 ore si o min la 23 ore si 59 min cu repetare Setare scanarii smart permite integrarea intr-un scenariu smart cu alte dispozitive BVA, SONOFF, NEXTION. Partajare control permite partajarea controlului dispozitivului cu alti utilizatori.
  • Page 6 WF2C 0723 FISA TEHNICA Firmware PSF-B04 Cipul principal ESP8285 Tip de rețea fără fir STA/AP/STA+AP Mecanism de criptare WEP/WPA-PSK/WPA2-PSK Tipul de criptare WEP64/WEP128/TKIP/AES Actualizare firmware OTA Standard wireless IEEE 802.11b/g/n Gama de frecvente 2.412GHz-2.484GHz Puterea transmisiunii 802.11b: 20±2dBm (@11Mbps) 802.11g: 17±2dBm (@54Mbps) 802.11n: 14±2dBm (@HT 20, MCS 7)
  • Page 7 U1 V1 W1 U2 V2 W2 U2 V2 W2 Pentru sarcini rezistive mai mari de 6A sau pentru sarcini inductive, folositi dispozitivul WF2C 0723 impreuna cu contactori de putere adecvati aplicatiei dvs. asa cum este exemplificat in schita de mai sus. pag.7...
  • Page 8 Adăugare dispozitive eWeLink: Pentru versiunea Android, trebuie să porniți WiFi pe telefon înainte de a adăuga un dispozitiv. Apăsați lung butonul „SET” (butonul de asociere) pe dispozitivul WF2C 0723 până când indicatorul LED verde clipește rapid. Faceți clic pe pictograma Alegeti modul de Alegeti „adaugati un...
  • Page 9 WF2C 0723 INROLAREA DISPOZITIVELOR IN APLICATIA MOBILA Conectati-va la hotspotul ITEAD-XXXXXXXXXX si introduceti parola 12345678. Daca totul a decurs bine, dupa cateva secunde veti fi notificat despre inrolarea dispozitivului in aplicatie si veti putea continua cu configurarea dispozitivul. Un dispozitiv are un singur proprietar. Dacă ați adăugat cu succes un dispozitiv la contul dvs.,nu veti putea adăuga acest dispozitiv la alt cont decât dacă...
  • Page 10 WF2C 0723 Accesand dispozitivul nou Accesand meniul contextual Pentru stergerea inrolat in aplicatie, veti „cele trei puncte“ din dispozitivului derulati avea acces la comenzile coltul dreapta sus, veti pana in josul paginii. manuale, dar si la cele putea vizualiza informatii automatizate.
  • Page 11 WF2C 0723 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Fabricat in ROMANIA www.bva-romania.com / office@bva-romania.com / tel +40774685114 pag.11...
  • Page 12 WF2C 0723 USER MANUAL 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) Automatizari B V A Fabricat in Brasov - Romania email: office@bva-romania.com web: www.bva-romania.com...
  • Page 13 WF2C 0723 DANGER. This sign draws attention to possible dangers/damages for people CAREFUL. This sign draws attention to possible dangers/damages for the environment. CAREFUL. This sign draws attention to possible dangers/damages for the device. This device is designed for wireless control via the Internet a various lighting equipment, pumps, fans, ETC.
  • Page 14 WF2C 0723 Mounting: The device is mounted applied using the omega rail (DIN rail) in closed /open pannels, on the wall or in any other place that allows the installation of this device. The environmental requirements described in the technical sheet will be respected.
  • Page 15 MV1121 57.50mm 2.264in 42.70mm 1.681in 53.30mm 2.098in SECTIUNEA B-B SCARA 1 : 1 SECTIUNEA A-A SCARA 1 : 1 pag.4...

  • Page 16: Data Sheet

    0 hours and one minute to 23 hours and 59 minutes with repetition Smart scan setting allows integration in a smart scenario with others BVA, SONOFF, NEXTION devices. Control sharing allows you to share control of your device with others users.
  • Page 17 WF2C 0723 DATA SHEET PSF-B04 firmware ESP8285 main chip Wireless network type STA/AP/STA+AP WEP/WPA-PSK/WPA2-PSK encryption mechanism Encryption type WEP64/WEP128/TKIP/AES OTA firmware update IEEE 802.11b/g/n wireless standard Frequency range 2.412GHz-2.484GHz Transmission power 802.11b: 20±2dBm (@11Mbps) 802.11g: 17±2dBm (@54Mbps) 802.11n: 14±2dBm (@HT 20, MCS 7) Reception sensitivity 802.11b: -91 dBm (@11 Mbps, CCK) 802.11g: -75 dBm (@54Mbps,...

  • Page 18: Connection Diagram

    U1 V1 W1 U1 V1 W1 U2 V2 W2 U2 V2 W2 For resistive loads greater than 6A or for inductive loads, use the WF2C 0723 device together with power contactors suitable for your application as exemplified in the sketch above. pag.7...
  • Page 19 For the Android version, you need to turn on WiFi on your phone before adding a device. Long press the "SET" button (pairing button) on the WF2C 0723 until the indicator Green LED flashes (SEE DATA SHEET). Click the icon Choose the mode of Choose "add a...
  • Page 20 WF2C 0723 REGISTRATION OF DEVICES IN THE MOBILE APPLICATION Connect to the ITEAD-XXXXXXXXX hotspot and enter the password 12345678. If everything went well, after a few seconds you will be notified about the enrollment of the device in the mobile application and you will be able to continue configuring the device.
  • Page 21 WF2C 0723 Accessing the new device Accessing the context menu For deletion enrolled in the application, "the three points" of device scroll down you will have access to the upper right corner, you will to the bottom of the manual commands,but also to have access to information page.
  • Page 22 WF2C 0723 2014/35/EU Low voltage Directive(LVD) 2014/30/EU Electromagnetic Compatibility Directive (EMC) 2011/65/EU Hazardous Substance Directive (ROHS) made in ROMANIA www.bva-romania.com / office@bva-romania.com / tel +40774685114 pag.11...
