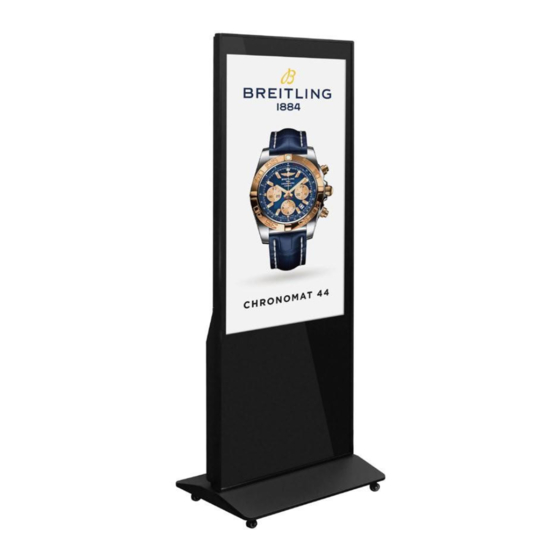

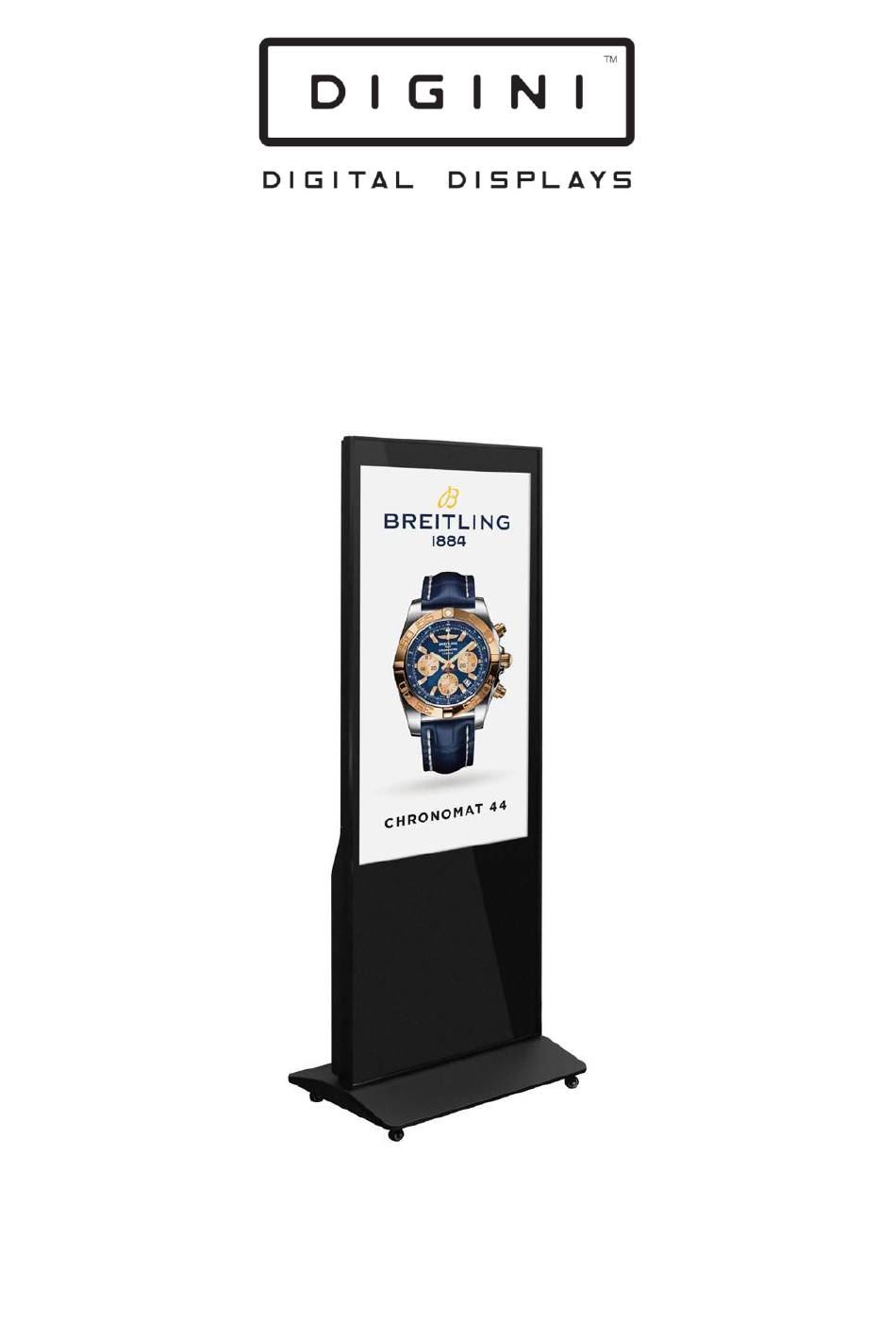

- Page 1 DDT Digital Display Totem User Manual...
-
Page 2: Table Of Contents
DDT User Manual Table of contents 1. Assembly guide ..............2 2. Remote control guide ............3 3. Updating content via USB ........... 4 4. Updating content via LedArt app ........7 5. System settings ..............18 6. Toolbox functions .............. 23 7. -
Page 3: Assembly Guide
DDT Instructions 1. Assembly guide Screw each of the four adjustable feet underneath the base Screw in the eight Allen screws to securely fix the screen and the base together Underneath base: 8 screws total... -
Page 4: Remote Control Guide
DDT Instructions 2. Remote control guide Enter the system settings by using a remote. The function of the remote control buttons is as follows:... - Page 5 DDT Instructions Press key to enter the system settings, the interface is as follows:...
-
Page 6: Updating Content Via Usb
DDT Instructions 3. Updating Content via USB 1） One area full screen playback Videos/images are stored in the root directory of your USB stick, and they will automatically play in a loop. → Create a "Playtask" folder in the root directory of the USB →... - Page 7 DDT Instructions It is divided into two areas "1" and "2", and the area "1" is played in full screen; the area 2 is superimposed and played on the area "1", X coordinate 86, Y coordinate 186, width 640, height 384. Finally, your video/image can be placed in the files "1"...
-
Page 8: Updating Content Via Ledart App
DDT Instructions 3. Updating content via LedArt mobile app Required phone system: Android 4.0 and above or iOS 7.0 and above LedArt installation Users can scan the QR code to download the LedArt app, or search for "LedArt" downloads in Google Play Store. After downloading the app to your phone, you can install it by default Wi-Fi connection (find device) - Page 9 DDT Instructions You can also connect to a Wi-Fi hotspot in your phone’s “Settings” WLAN. New program Select the "Programs" module, click "New Display", automatically search the online controller, select a controller, read back the controller screen size by default, and click "OK". If there is no online controller, you can edit offline and customize the screen width and height.
- Page 10 DDT Instructions After entering the program editing interface, click the "+" on the right to add a video area, then enlarge the video area in the analog display area, and then click the "+" below to add multiple videos. The video and video are played in a loop. Add pictures Similar to video, click the "+"...
- Page 11 DDT Instructions Click "+" on the right to add a text area, then enlarge the text area in the simulation display area, and then enter the text to be played in the text input box below. Below the text input box, you can modify the font type / size / color, text display duration, animation effects, and background color (swipe up to see).
- Page 12 DDT Instructions The bottom layer is added first, and the overlays added later are displayed on top. As shown in the figure below, the picture area is superimposed on the video area to play, and the text area is superimposed on the video and picture area to play. Features: •...
- Page 13 DDT Instructions Select "Program" on the left side of the program editing interface, and you can set the background music, broadcast date, broadcast time, broadcast week, and broadcast duration of the below . Send program...
- Page 14 DDT Instructions a) Single-program transmission After editing the program, click "Send" in the upper right corner to send the program. b) Multi-program sending Exit the program interface and return to the program list. You can add multiple programs and send multiple programs. Remote control...
- Page 15 DDT Instructions Select the "Device" module and click "Remote", you can use the remote control functions-switch on/off, previous/next program, pause/play, adjust volume and adjust brightness, etc. ON/OFF Home Select up or previous show Select down or next show Select up or previous program Select down or next program Confirm Play/Pause...
- Page 16 DDT Instructions Select the "Device" module and click "Time Correction" to correct the time. There are three time modes: • Automatic synchronization, if the controller is connected to the Internet, turn on this setting, the time can automatically synchronize the Internet time •...
- Page 17 DDT Instructions Select the "Device" module and click "Device Lock" to turn on the device lock. Each time you send a program, you need to enter the correct password to send it. System upgrade Select the "Device" module, click "System Upgrade", and select a version to upgrade the system Note: The version needs to be downloaded in "Download Management"...
-
Page 18: System Settings
DDT Instructions Select the "Device" module, click "Screen Parameter Setting", select a parameter, and import the parameter into the controller. Note: The version needs to be downloaded in "Download Management" in the "Settings" module. (Mobile phone needs internet) Other settings Select the "Settings"... - Page 19 DDT Instructions Network settings • Wireless network: The controller is bridged to other routers via Wi-Fi signals, and the IP address is automatically obtained from the router. It cannot be set to a fixed IP • Wired network: The controller is connected to other routers through a network cable. The IP address can be obtained automatically from the router or it can be set to a fixed System control •...
- Page 20 DDT Instructions Advanced options • Storage location: where the program is stored; (sending programs by app) • Screen rotation: support LCD screen rotation of 0°, 90°, 180° and 270° • Multi-machine synchronization: multiple LCD screens play the same content and play the same progress •...
- Page 21 DDT Instructions System mode • System mode: stand-alone mode and internet mode (internet mode is still under development and testing ...) • Storage location: where the program is stored • Playing time: the time of playing pictures in USB, 5S means playing each picture for 5 seconds (if sent by app, the playing time can be set on app) •...
- Page 22 DDT Instructions • Special effects: special effects for picture in USB - it has random, still display, pan left, pan right, etc. • Clear immediately: if On, the previous picture will be cleared, and then the next picture will appear; if Off, the next picture will gradually cover the previous picture •...
- Page 23 DDT Instructions System language There are two languages available: Chinese and English Play now Click once to exit the system settings and play the program immediately. Empty program Click to clear the content being played by the device Restart Press it twice to restart the controller. Network diagnosis...
- Page 24 DDT Instructions About Controller name, ID, version, capacity, and more.
-
Page 25: Toolbox Functions
DDT Instructions 6. Toolbox functions The toolbox includes the following functions: screen rotation, camera rotation, hidden status bar, hidden navigation bar, timing switch screen, timing on/off, and more settings. Screen rotation: supports LCD screen rotation of 0°, 90°, 180°, 270° (it will take effect only after the system is restarted after the setting is successful). - Page 26 DDT Instructions Hide status bar: hide or display the status bar at the top of the screen. Hide navigation bar: hide or display the navigation bar at the bottom of the screen. Timing switch screen: the time period can be set to control the display screen to open or close the display screen (note: this function is only the display screen, not the power-off of the display screen and controller).
- Page 27 DDT Instructions Timing switch on / off: set the time period control card for Magicplayer to power off and power on (note: with this function Magicplayer will power off and the display screen will not power off). The setting method is the same as that of "timing switch screen".
- Page 28 DDT Instructions 4) Power on logo: You can set the logo or picture displayed when unit is started. • Resolution: the resolution of the boot logo display screen • Frame count: Frames per second - switching speed of boot logo screen •...
-
Page 29: Unit Specifications
DDT Instructions 7. Unit Specifications Screen size 43” 55” Viewable area (W x H) 52.9cm x 94.1cm 67.9cm x 120.8cm Overall size (W x H x D) 62.3cm x 175cm x 46cm 77.8cm x 190cm x 46cm Base size 65cm x 40cm 77cm x 46cm Totem colour Black or white... -
Page 30: Faq
DDT Instructions Q: How can I convert my video to a compatible format? A: If the video file is not playing properly on the screen or it does not meet the requirements of the Supported Video Formats table, please use the following free Video Converter tool, Format Factory. Step 1: Download and install the free Video Converter software for Windows Vista/7/8/10/11 named “Format Factory”. - Page 31 DDT Instructions Step 3: On the left-hand window pane select ‘MP4’. Step 4: Select the ‘Add Files’.
- Page 32 DDT Instructions Step 5: Select the file you wish to convert and press ‘Open’. Step 6: Click ‘Output Setting’.
- Page 33 DDT Instructions Step 7: Make sure the ‘Video Encode’ is set as ‘MPEG(Xvid)’ for the best quality and to change the ‘Video Size’ to the recommended resolution is as shown on the Supported Video Formats table. Step 8: Select the ‘OK’ button once you are happy with this.
- Page 34 DDT Instructions Step 9: Select the ‘OK’ button again. Step 10: Select the ‘Start’ button to begin the conversion process. Step 11: Once the process is finished, select the folder icon to find your new converted video file.
