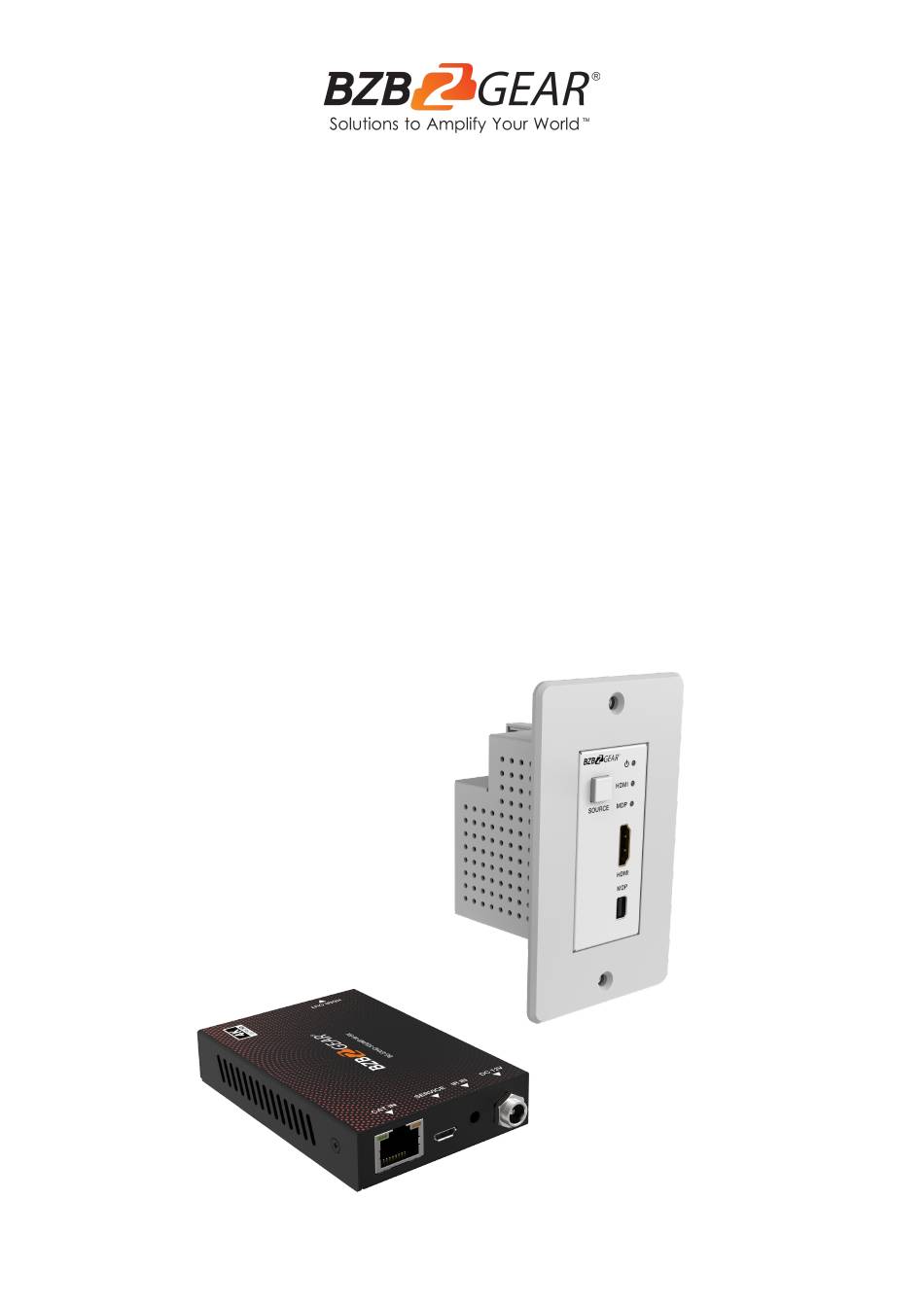

- Page 1 BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit with MDP/HDMI Wall Plate Transmitter & CAT6 to HDMI Receiver User Manual...
- Page 2 BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Product Dimensions Operation Controls and Functions Receiver Panel Connection Diagram Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Introduction Introducing the BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a solution engineered to enhance your audiovisual experience to new heights. This all-encompassing kit features a sophisticated MDP/HDMI Wall Plate Transmitter paired with a CAT6 to HDMI Receiver, meticulously crafted to deliver unrivaled performance and effortless integration. -
Page 6: Specifications
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Compliance Display Port 1.2a DP: 5.4 Gbps Video Bandwidth HDMI: 18 Gbps Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0... -
Page 7: Product Dimensions
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Product Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 8: Operation Controls And Functions
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Transmitter Panel Name Function Description The power LED indicator will illuminate in Power LED green when the product is powered on, and red when the product is on standby. -
Page 9: Receiver Panel
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Receiver Panel Name Function Description HDMI output port, connect to HDMI HDMI OUT display device such as TV or Projector with an HDMI cable. Connect to the CAT6 OUT port on the CAT IN transmitter with a CAT cable. -
Page 10: Connection Diagram
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Troubleshooting
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 12: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 13: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 14: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
