User Manual
Converts Speed and
Media Types
Extends Network Span for
up to 2 km/30 km
Easy Installation
Transparent to 802.1Q VLAN
Packets
Link Fault Signaling (LFS)
Notifies Down Link to Peers
Multiple Configurations via
DIP Switch Setting

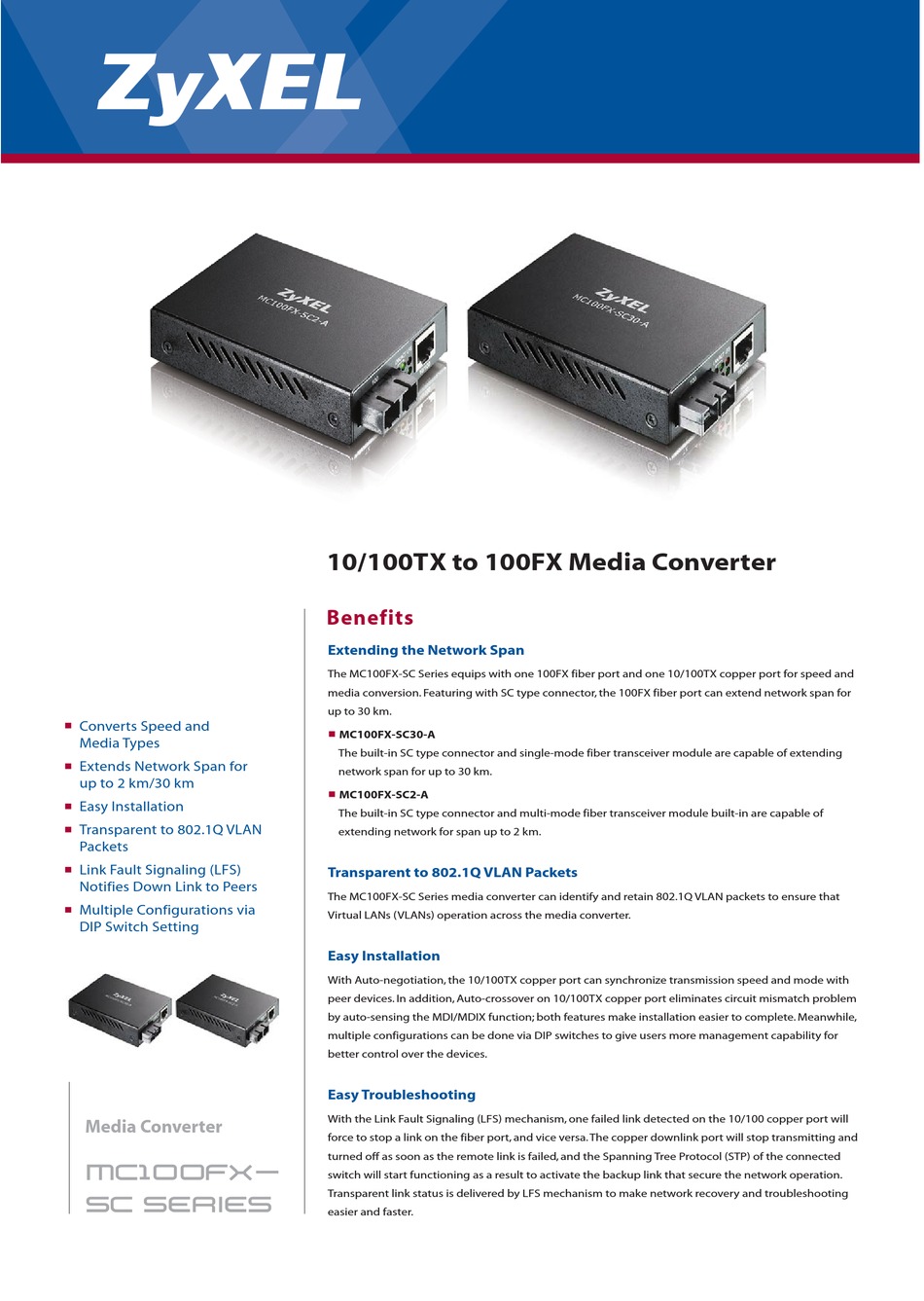

Media Converter
mc100fx-
sc series
10/100TX to 100FX Media Converter
Benefits
Extending the Network Span
The MC100FX-SC Series equips with one 100FX fiber port and one 10/100TX copper port for speed and
media conversion. Featuring with SC type connector, the 100FX fiber port can extend network span for
up to 30 km.
MC100FX-SC30-A
The built-in SC type connector and single-mode fiber transceiver module are capable of extending
network span for up to 30 km.
MC100FX-SC2-A
The built-in SC type connector and multi-mode fiber transceiver module built-in are capable of
extending network for span up to 2 km.
Transparent to 802.1Q VLAN Packets
The MC100FX-SC Series media converter can identify and retain 802.1Q VLAN packets to ensure that
Virtual LANs (VLANs) operation across the media converter.
Easy Installation
With Auto-negotiation, the 10/100TX copper port can synchronize transmission speed and mode with
peer devices. In addition, Auto-crossover on 10/100TX copper port eliminates circuit mismatch problem
by auto-sensing the MDI/MDIX function; both features make installation easier to complete. Meanwhile,
multiple configurations can be done via DIP switches to give users more management capability for
better control over the devices.
Easy Troubleshooting
With the Link Fault Signaling (LFS) mechanism, one failed link detected on the 10/100 copper port will
force to stop a link on the fiber port, and vice versa. The copper downlink port will stop transmitting and
turned off as soon as the remote link is failed, and the Spanning Tree Protocol (STP) of the connected
switch will start functioning as a result to activate the backup link that secure the network operation.
Transparent link status is delivered by LFS mechanism to make network recovery and troubleshooting
easier and faster.
