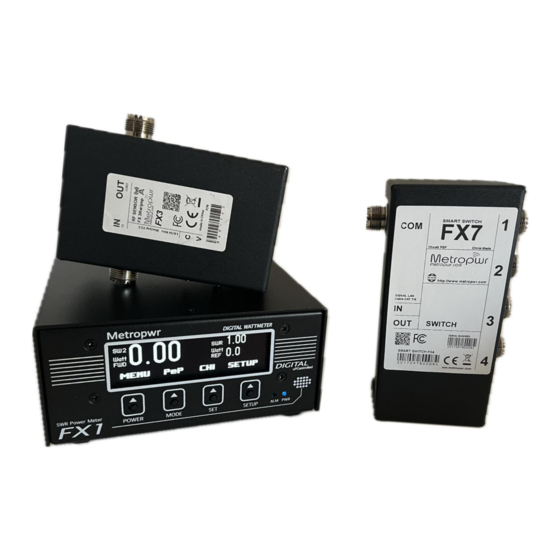

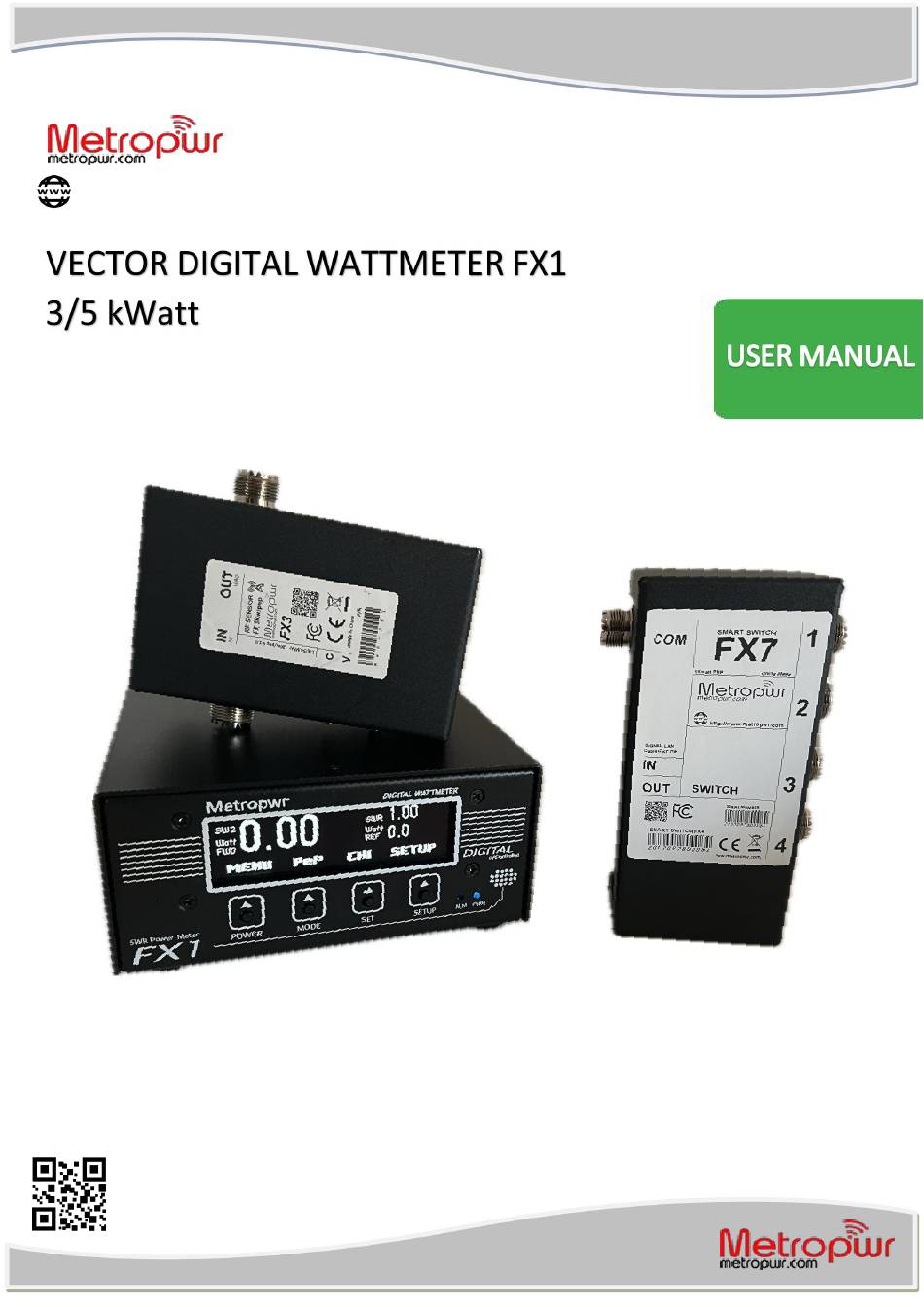

- Page 1 Ver. 1.0.5...
- Page 2 Dangerous situations to avoid in order to prevent all risks that are shown above. Never use the FX1 inappropriately, but only as described in the user manual. Not responsible for incorrect measurements or calibration problems.The Manufacturer...
- Page 3 3.1" OLED display. The update frequency of the measurements is very high and they are all in real time. The FX1 has an internal EEPROM memory where all the parameters are stored calibration parameters. Through a service menu it is possible to update the fw and recalibrate the wattmeter in a very simple way.
-
Page 4: Micro/Usb Port
Display OLED 3.1” POWER LED ALARM LED SET SWITCH SETUP SWITCH POWER ON/OFF MODE SWITCH Comm FX7 PORT* (don’t connect PC/LAN) MICRO/USB PORT PORT SENSOR A POWER 13,8V PORT SENSOR B Attention don’t connect PC or LAN Switch, use only to connect Antenna SWITCH FX7 (optional) . - Page 5 FWD Power (Watt) Antenna Switch Active REF Power (Watt) LED POWER/ALARM SETUP Power SET SW1/2 ON/OFF MODE - FWD Power, SWR and Active Switch. SWR - R - X graph Grap S11 (Returnloss) - Impedance, Resistance, Reactance, SWR displayed.
- Page 6 Smith chart on/off - Adjustment of the screen saver time of the display. After the set period the screen saver starts - Disable the function key beep. The display shows: - forward power - forward power - reflected power (default)
- Page 7 - Enable or disable the USB port. If the FX1 is interfaced to the PC, set USB ON. - SWR alarm protection intervention threshold. Once the set threshold is exceeded, a BEEP is heard and the Alarm LED lights up.
- Page 8 To CALIBRATE POWER: - Disconnect the power cord and while reconnecting, push the POWER button - Connect the Coupler as in the figure to a 50 Ohm dummy load - Transmit a precise power of 80Watt in CW - Save measurement with SAVE button - Repeat the operation for all bands 160 to 6mt.
- Page 9 To RESET device: - Disconnect the power cord and while reconnecting, push the SETUP button - Confirm EEPROM deletion with MODE button - After the reset, recalibrate the wattmeter. Erasing the EEPROM involves the loss of all calibration parameters. This is a service menu that displays the spectrum of V / I (voltage/current) signals taken from the measurement coupler.
-
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer’s: Metropwr di Ferrulli Antonio & C. Address: Via Cap.Locorriere 32 70025 Grumo Appula (Italy) Product Moldel: Metroprw FX773 Date 1/1/2024 REFERENCE N. TITLE EDITION DATE EN 61326.1:2006 Radio disturbance 2006 EN55011 class B characteristics - Limits... -
Page 11: Upgrade Firmware
NodeMCU PyFlasher utility UPGRADE FIRMWARE - SET Baudrate 115200 - Flash mode Quad I/O - Erase Flash No - Set your SerialPort - Browse --> LIBUS.BIN - Push button Flash NodeMCU - Reboot FX1 Do not disconnect power while updating firmware. - Page 12 Software X64 for Pc The FX1 Wattmeter can be completely remoted via USB through its software. It is compatible with Windows X64 and soon also with Mac OS. It is possible to view all parameters except the frequency and the buttons of the second antenna switch.
- Page 13 Fx7 Antenna/Radio Switch Coverage 1.8/55 MHz 160/6mt Power 1kW PeP 1X4 Positions So259 Flatness 0.1 dB In/out EXP Bus (Not Lan) Max Distance to Wattmeter 2mt No need ext. supply FX3 HF/50MHz Coupler Coverage 1.8/55 MHz 160/6mt ...
- Page 14 Metropwr FX1 Technical Features Coverage 1.8/55 MHz Display Oled 3.1″ 4 multifunction switch 8 SMA input to connect 2 Coupler Measurament R, Z, |X|, SWR Autoranging Power Meter P&P,AVG,dBm Calibration SWR,Power menu Accuracy SWR <5%* ...
