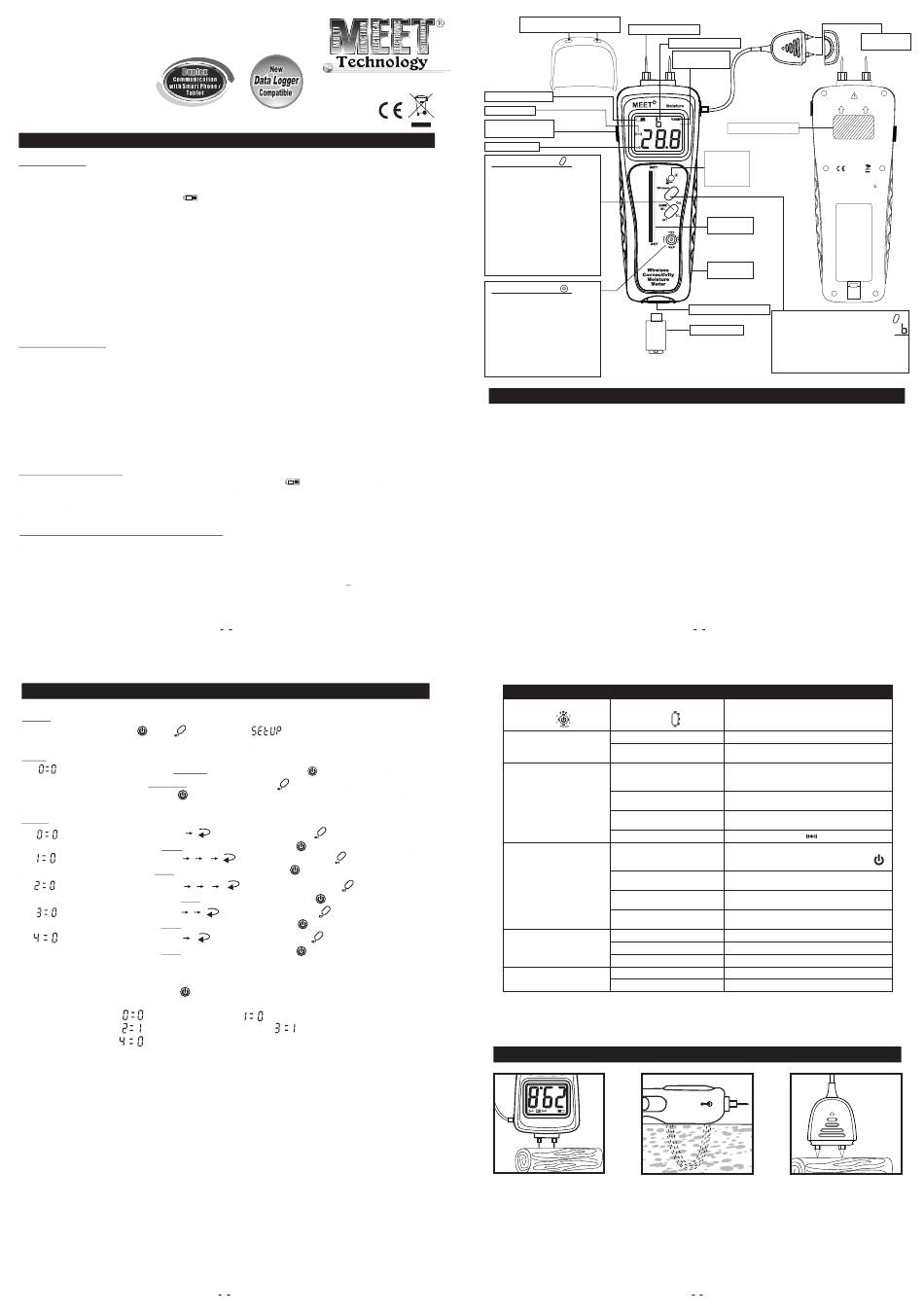

MEET Technology MS-W98U3 Operation Manual

Wireless Connectivity Moisture Meter
( Pin + Remote Pin + Pinless Type )
Model no: MS-W98U3
OPERATION MANUAL
Specifications
- Operating voltage: 1 x 9V (6F22 / 6LR61 / 1604)
- Operating current: < 70mA max.
- Low battery indication: < 6.5V, an icon '
- Extreme low battery: Auto Power Off when below 5.5V within < 10 secs.
- Display: a) Large 0- 99.9 LCD with backlight display
b) Green; Yellow; Red Tri-Color dot LED display
- Resolution: a) 0.1% (LCD)
b) 32 dot (LED)
- Accuracy: a) Pin Probe mode: ±(5% rdg +5 digits)
b) Pinless mode: Relative reading (REL)
- Measuring range: 6.0-87.6 (%WME) or 0.1-99.9 (REL)
- Operating temperature: 0 °C ~50 ºC (32 ºF ~ 122 ºF)
- Operating humidity: 80% RH max.
- Non-destructive measuring depth: 100mm / 4.0 inches max.
Advanced features
- Selectable measurement '% WME' or 'REL'
- User Pre-set selectable mode. ie. APO, Alarm etc.
- Dual display LCD+LED
- Measure wood / concrete moisture
- Standalone mode (without wireless module)
- Wireless connectivity transmit data to Smart phone / Tablet with iOS APPS or Android APPS
(require wireless module, sold separately)
- Data logger compatible (require wireless with memory module MS-WMBM1, sold separately)
- Patented / Patent pending removable wireless module
How to replace battery
Replace 9V alkaline block type battery when low battery warning '
Remove the battery cover and replace a fresh battery.
To avoid chemical leakage from the battery, remove the battery if you are intended not to use the meter
in short time
Using external mini USB input power supply
- For long duration operation / monitoring / data logging, use an external power adaptor or battery power
bank which have output 5.0V / 0.5A DC and with mini USB plug.
- External power input automatically cut-off the internal battery source of the meter.
- For long duration operation / monitoring / data logging, set the 'APO' (Auto Power Off) selection option
to 'OFF'. Please refer to 'User Set-up Options' and set 'OPTION' 2 with 'Setting' 0 .
B E F O R E
Step 1.
- Press and hold both button ' ' and ' ' until scrolling '
- Follow up 'User Set-Up Options' to set up desired function.
Notes:
1. ' ' Left hand digit indicates as 'OPTION' function, use the button '
Right hand digit indicates as 'SETTING' mode. use the button '
2. Without pressing the confirm button ' ' the meter goes to measuring mode after 30 seconds.
Step 2.
a) ' ' Right hand digit changes from 0 1
selected the desired number, you must press the confirmation button '
b) ' ' Right hand digit changes from 0 1
selected the desired number, you must press the confirmation button '
c) ' ' Right hand digit changes from 0 1
After selected the desired number, you must press the confirmation button '
d) ' ' Right hand digit changes from 0 1 2
selected the desired number, you must press the confirmation button '
e) ' ' Right hand digit changes from 0 1
selected the desired number, you must press the confirmation button '
f) You have 30 seconds to confirm each option setting, meter automatically exit to measuring
mode after 30 seconds.
g) After confirmed by pressing the button ' ', the meter is ready for use.
h) Factory default setting:
(Factory default setting);
(Selected OFF after 3 minutes) ;
(Selected manual calibration);
' display
' indicates on LCD.
1
O P E R A T I O N
' display on screen and with short beep.
' as confirmation.
' as selection.
when pressing the button ' ' each time. After
' to confirm the SETTING.
2 3 when pressing the button' ' each time. After
' to confirm the SETTING.
2 3 when pressing the button ' ' each time.
' to confirm the SETTING.
when pressing the button ' ' each time. After
' to confirm the SETTING.
when pressing the button ' ' each time. After
' to confirm the SETTING.
( Selected beeper starts from 17.0 / 17.0%);
(Selected backlight ON) (1 Min.);
3
Self -calibration check point
for pin type only Pin probe, replaceable
Low battery indication
R
Audible sound
T
Mini USB port R
for 5V / 0.5A DC input
Hold /Freeze icon
MS-W98U3
USAGE OF MODE KEY
1) For zero calibration
'CAL'
(Simultaneously press
and hold with 'PWR' button)
'%WME'
2) Pin type measuring (press
once)
'REL'
3) Pinless type measuring
'B.L.'
(press once)
4) Backlight ON/OFF (press
and hold for 3 secs.)
'SET'
5) User 'set-up options' mode
(after Power OFF,
simultaneously press and
hold with 'PWR' button)
USAGE OF POWER KEY
1) Power ON/OFF (press and
'PWR'
hold for 3 secs.)
'CAL'
2) For 'Zero' calibration
(Simultaneously press and
hold with 'MODE' button )
'HOLD'
3) Freeze the reading (press
once for hold and release)
'SET'
4) User 'set-up options' mode
(after Power OFF, press and
hold with 'mode' key)
MEET's Wireless connectivity moisture meter MS-W98U3 integrated with pin type and non-destructive type
sensor also a wired remote pin type sensor.
Usage of non-destructive type sensor is the only choice for estimating the moisture on surface
and depth penetrate upto 4 inches of the wood or building materials by 'Relative' 'REL' readings.
If accurate readings are important, the remote pin type sensor measure the surface moisture (marred by
pinholes, specially finished wood) by 'wood moisture equivalent' '%WME' readings.
The meter is designed for use in wide applications, such as:
- For building construction, home / office / factory renovation, water damage restoration, such as locating water
leaks behind walls, above ceilings, below floors, measuring content on bricks, concrete, wood before sealing,
treating, painting, wall papering. Check for moisture on or below the surface of carpet, or sub-flooring.
- For wood working, measure moisture content before finishing, painting processing.
- For textile industries, regular check moisture content on fabrics, clothes, leather, quality check to prevent
mold.
- For printing industries, check moisture content on paper before printing.
One of the most advance features of MS-W98U3 is 'Wireless Connectivity' to Smart phone / device. The meter
works as 'standalone' mode when without wireless module. Also, works with wireless by using wireless module.
The meter transmit or receive the data from / to Smart phone / Tablet / PC
separately) through free download iOS or Android APPS.
Extra feature of data logger is also compatible when using 'Wireless with memory module ' MS-WMBM1
User Set-Up Options
SETTING Mode
OPTION Function
Setting by
Setting by ' E A ' button
0
(Default setting)
1
(Beeper)
2
(Auto power off)
3
(Backlight)
4
(Calibration option)
Usage of moisture sensor
Pin type sense Non-destructive deep
penetrate from the surface
to measure moisture in
Wireless connected
Measurement mode
%WME / REL
REL
Non-destructive sensor
> READ INSTRUCTIONS<
Blue LED
keeps ON
when wireless
Wireless
enable
Connected
Tri-color
bargraph LED
Battery
compartment
Wireless module input slot
USAGE OF WIRELESS CONNECTIVITY KEY
Wireless module
1) Enable Wireless Connectivity (press once)
2) Disable Wireless Connectivity (press once)
Note : Before enable wireless function,
you must insert the wireless
module first
Introduction
(Require different modules, sold
2
CAL
%WME
Set up information
" " button
REL
B.L.
SET
0 Factory default loaded
User default setting loaded.
1
Back light turns ON for 30 secs.
Beeper beeps with increasing frequency
from nominal 17.0 value in REL mode
0
and 17.0% WME in Measure mode.
Beeper beeps with increasing frequency
1
when start measuring.
Beeper beeps when switching from one
2
operational mode to the other.
Beeper is OFF. NO " " display
3
Auto switch OFF is not active, meter
can only be switched OFF by pressing "
0
and holding it for 3 seconds.
Auto switch OFF is active, meter
1
switches OFF after 3 minutes.
Auto switch OFF is active, meter
2
switches OFF after 5 minutes.
Auto switch OFF is active, meter
3
switches OFF after 10 minutes.
0 Backlight OFF.
Backlight ON.(1 min.)
1
Backlight always ON.
2
0 Manual calibration.
Auto Calibration after power ON.
1
Remote pin type
sense, moisture
'% WME' reading
'REL' reading.
4
Remote pin type
sensor
BEFORE USE
T
R
"
