The PowerEdge R250 system is a 1U server that supports:
● One Intel Xeon E-2300 series processor with up to 8 + 2 execution cores per processor or Intel Pentium processor with 2
cores
● Four DDR4 DIMM slots
● One cabled AC power supply unit
● Up to four 3.5-inch SAS/SATA hot-plug drives or up to four 3.5-inch SATA cabled drives.
NOTE: All instances of SAS, SATA drives are referred to as drives in this document, unless specified otherwise.
NOTE: For more information, see the Dell EMCPowerEdgeR250 Technical Specifications on the product documentation
page.
Topics:
•

Front view of the system

• Rear view of the system
• Inside the system
• System information label
• Rail sizing and rack compatibility matrix
• Locating the Express Service Code and Service Tag
Front view of the system

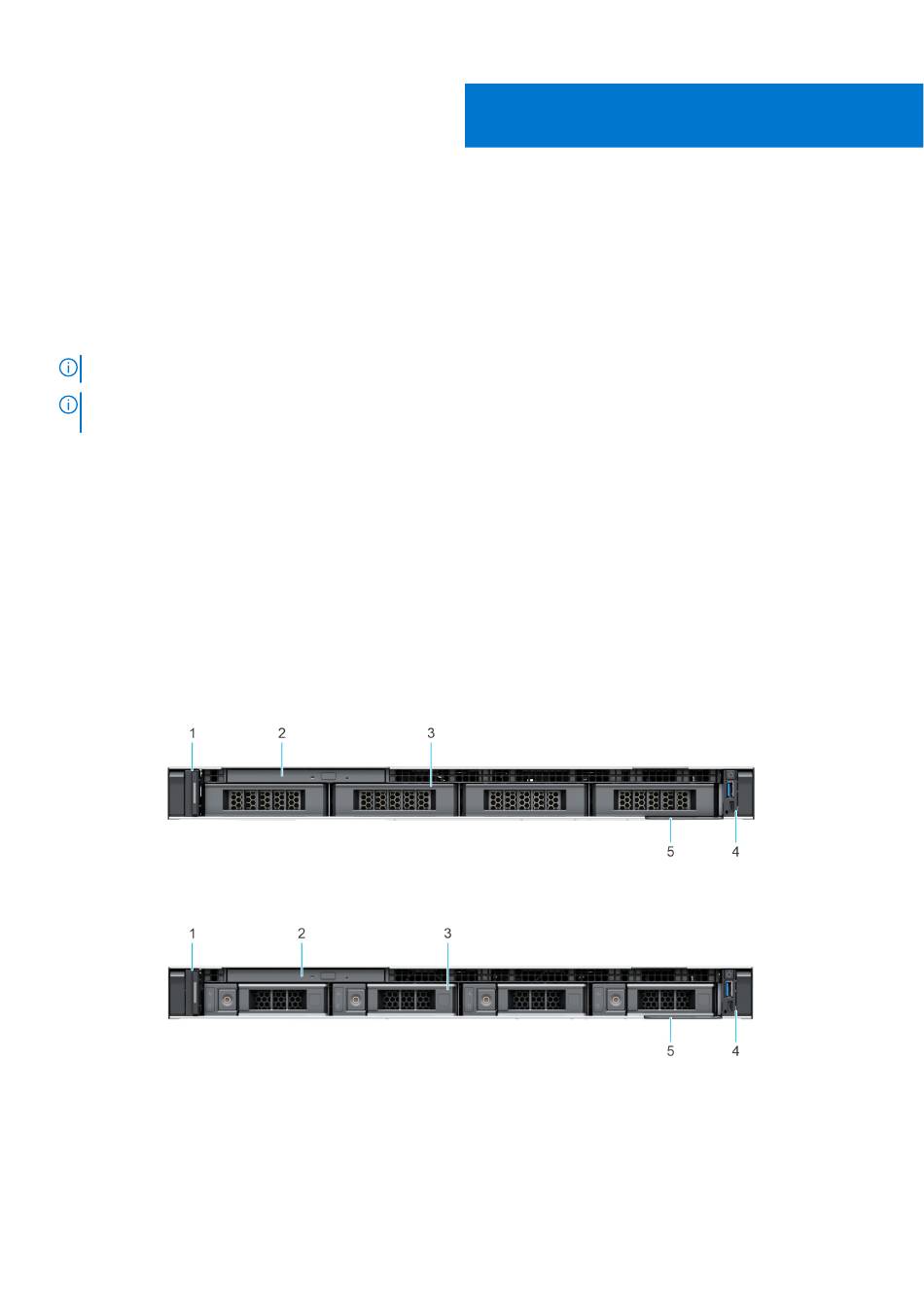

Figure 1. Front view of 4 x 3.5-inch cabled SAS/SATA drive system
Figure 2. Front view of 4 x 3.5-inch SAS/SATA hot-swap drive system
Figure 3. Front view of 2 x 3.5-inch cabled SAS/SATA drive system
