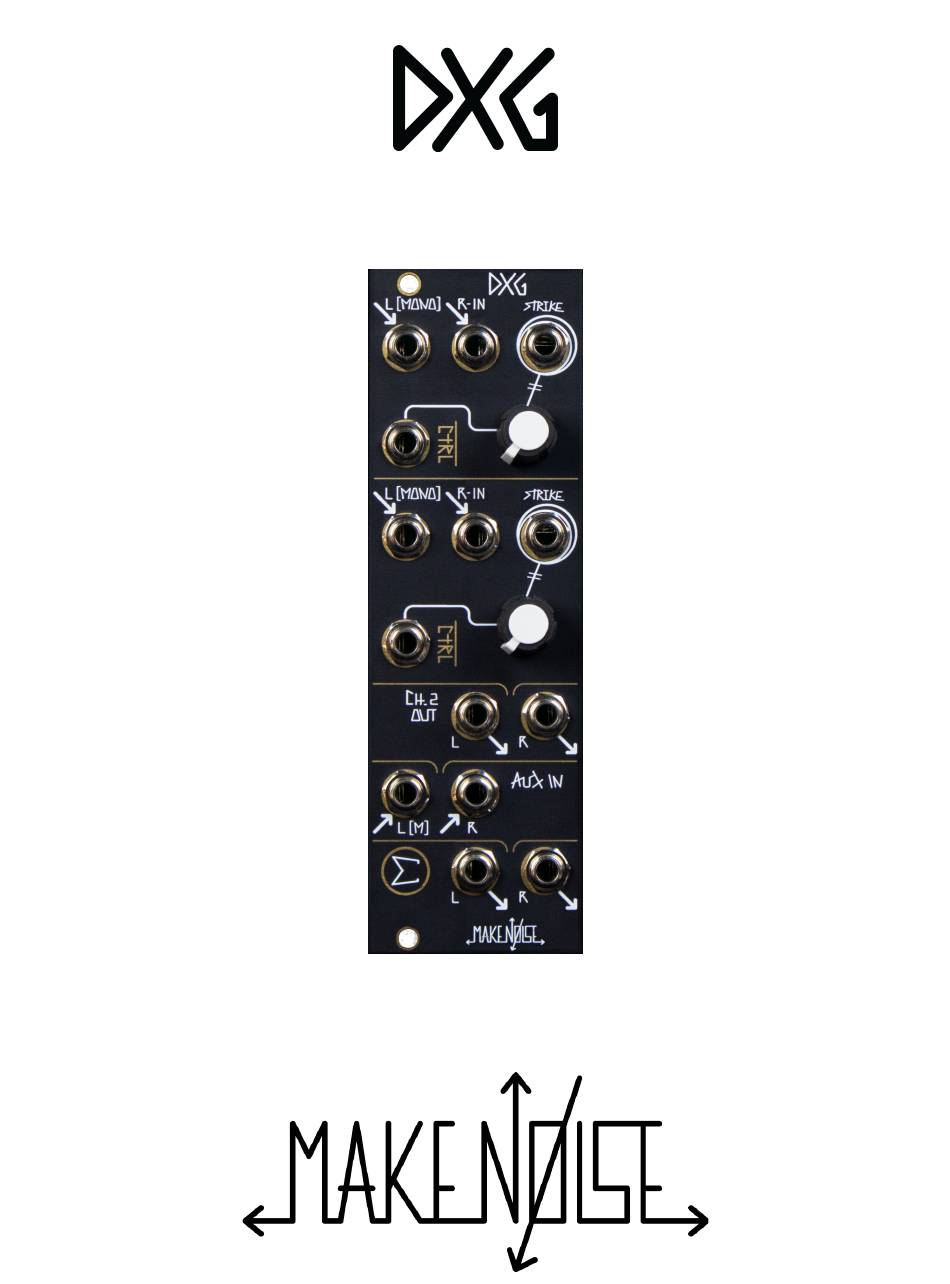

Make Noise DXG Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DXG and is the answer not in the manual?

Questions and answers

Related Manuals for Make Noise DXG

Summary of Contents for Make Noise DXG

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LIMITED WARRANTY INSTALLATION INTRODUCTION PANEL CONTROLS OVERVIEW STEREO USE AND MIXING TIPS & TRICKS PATCH IDEAS...

  • Page 3: Limited Warranty

    LIMITED WARRANTY Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product, removing knobs, changing faceplates, or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 4: Installation

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.

  • Page 5: Introduction

    XPO, QPAS, Morphagene, Mimeophon, and other stereo modules by Make Noise or others. Unique to the DXG is a new low pass gate circuit that does not use vactrols. This circuit is 100% analog and its response was arrived at after many months tailoring it to meet or exceed the expectations that have been set by all the vactrol low pass gates that Make Noise has created over the years.

  • Page 6: Panel Controls

    PANEL CONTROLS Left and Right Inputs: Signal Inputs for low pass gate. Expects 10v peak-to-peak modular level signal. Use Left (Mono) input alone for Mono sound sources. STRIKE Input. Gate input for “striking” the low pass gate. Reacts to 5V, 8V, or 10V gates. CTRL Input.
  • Page 7 Manual manipulation of the controls will not well display this phenomenon. A fast/ short envelope (control signal) of around +8V will provide a beautiful example of the DXG’s ability to produce acoustic-like Attack & Decay transients. The processed signal will seem to ring, not unlike a struck drum, piano string or xylophone bar.

  • Page 8: Stereo Use And Mixing

    STEREO USE AND MIXING Each channel of the DXG is actually two Low Pass Gates that are controlled by the same CTRL input. This allows for the gating and mixing of stereo signals. Channel 2 also has an individual channel output set.

  • Page 9: Tips & Tricks

    The Channel 2 outputs can be great for parallel processing. For example, band pass filter or ring modulate your gated sound, run it through a delay or reverb, then mix the result back into the DXG via the Aux inputs.

  • Page 10: Patch Ideas

    PATCH IDEAS STEREO BONGO By Walker XPO VariTimbre Left and Right to DXG Ch1 Left and MATHS or Function set RISE CCW, FALL 9:00 Right Inputs 7. XPO Freq 10:00 STO Sine to XPO LinFM Input 8. XPO Lin FM Index 12:00 3.
  • Page 11 6. Set SPECTRAPHON OSC A CV to TRI LFO 10. TEMPI x4 clock to RENÉ CLK in. 7. Send LFO to MODULATE on XPO and CTRL on Ch1 of DXG. 11. RENÉ CV OUT to XPO V/OCT in. 8. Set DXG Ch1 CTRL knob to 2 o'clock.
  • Page 12 STEREOPHONIC ETHEREAL WOODLAND SPACE DRONE By Ryan XPO vari-timbre outs to QPAS. 6. MATHS Ch1 UNITY out to XPO Modulate L and DXG Ch1 2. QPAS LP and BP to DXG Ch1 and Ch2, respectively. CTRL in. 3. DXG L/R out to Mimeophon L/R in.
  • Page 13 5. MATHS Ch1 unity out to DXG Ch1 CTRL input. BONUS: Flutter variation Mult a x16 TEMPI clock to both DXG Ch1 and Ch2 STRIKE inputs. Use TEMPI’s mute function to turn the flutter on and off.
