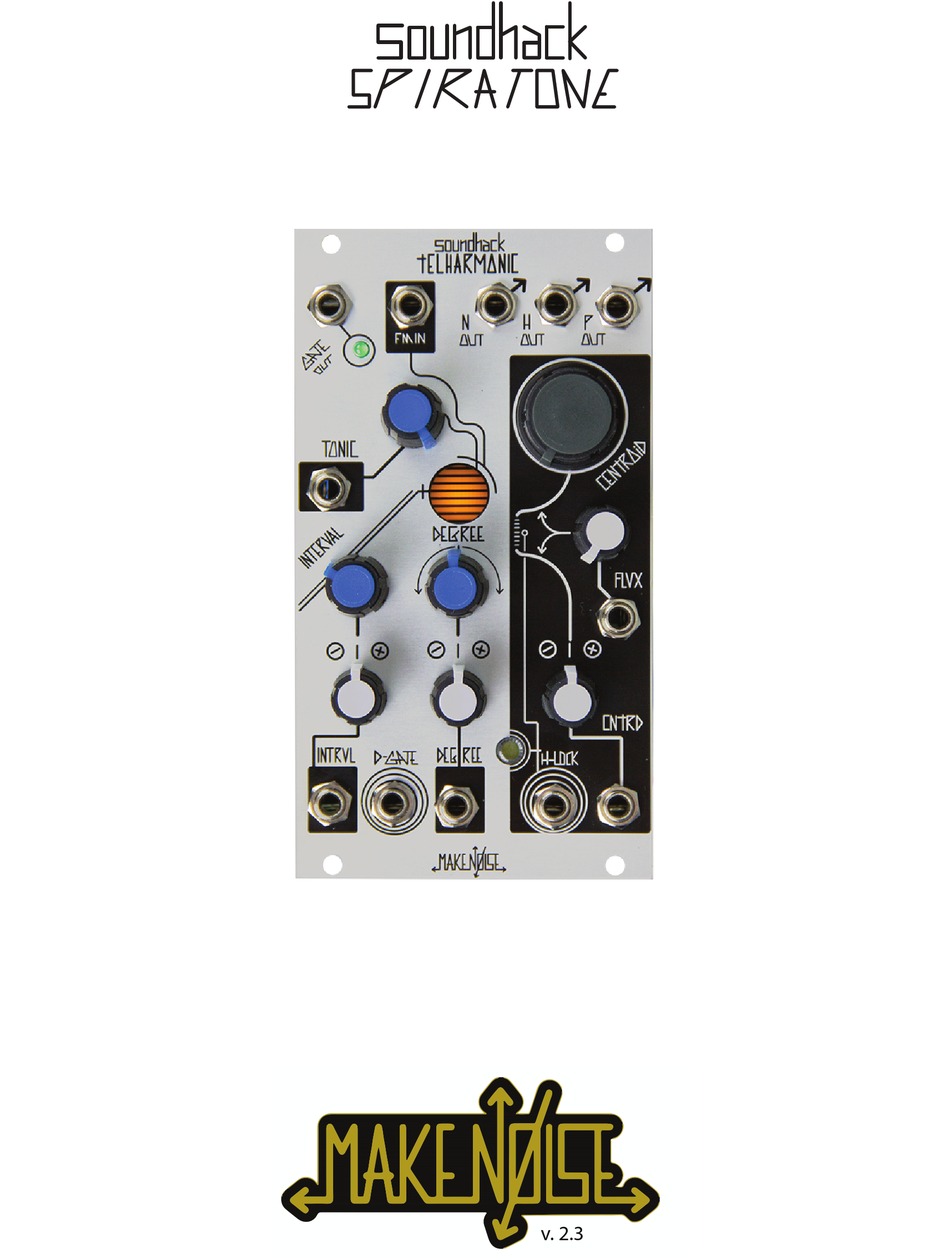

- Page 1 SpirA tone v. 2.3...
- Page 2 Spiratone FCC: -------------------------------------------------------------------2 Limited Warranty: ----------------------------------------------------3 Installation: ---------------------------------------------------------4 Spiratone Overview: ---------------------------------------------5 Panel Controls: -----------------------------------------6 Patch Examples: --------------------------------------------------8...
- Page 3 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. makenoisemusic.com Make Noise Co., 414 Haywood Road, Asheville, NC 28806...
- Page 4 Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.
- Page 5 Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.
- Page 6 Spiratone Overview: The {Spiratone} is a form of Shepard Tone generator. It is a sonic barber pole that creates the auditory illusion of a tone that continually ascends or descends in pitch, yet ultimately seems to get no higher or lower.
- Page 7 {Spiratone} Panel Controls 1. GATE OUT: outputs Gate signal at each change in DEGREE. DC-coupled, 10V Gate. 2. GATE LED: visual indication of activity at GATE OUTput. 3. FM IN: NOT UTILIZED 4. N OUT: output for the single-voice Noise Algorithm. 5.
- Page 8 {Spiratone} Panel Controls (Cont’d) 7. TONIC Panel Control: adjusts the pitch of all oscillators. 8. TONIC CV IN: unity, 1V/ Octave pitch control INput. Not quantized. Range 0V to 6V. 9. INTERVAL Panel Control: Sets internal modulation speed, no modulation at NOON, modulates up CW from NOON, and down CCW from NOON.
- Page 9 {Spiratone} Panel Controls (Cont’d) 17. CENTROID Panel Control: Sets the spacing of the oscillators from one octave to a very narrow pitch 18. CENTROID CV Attenuator: bi-polar attenuator for CENTROID CV INput. 19. CENTROID CV IN: control signal INput for CENTROID. Range 0V to 8V. 20.
- Page 10 Patch Example: Sentient Bottle Rocket (Thanks, Tony!): Press any pad on the Pressure Points to ignite the Sentient Bottle Rocket. Patch Example: Arti cial De-Celleration (Thanks, Tony!): Brie y turn on MATHS Ch. 1 Cycling and wait for Ch. 4 to be triggered via EOR. At which point, press the Ch.1 CYCLE Button again in order to disengage cycling, allowing the trigger loop to continue inde nitely.
- Page 11 Patch Example: Stereo Spiralgraph (Thanks, Tony!): RATE AND INTERVAL CONTROL MASTER VOLUME CONTROL Note: Stereo Patch. Must use a stereo/TRS cable for monitoring.
