- Page 1 MWD5 USER MANUAL Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385...

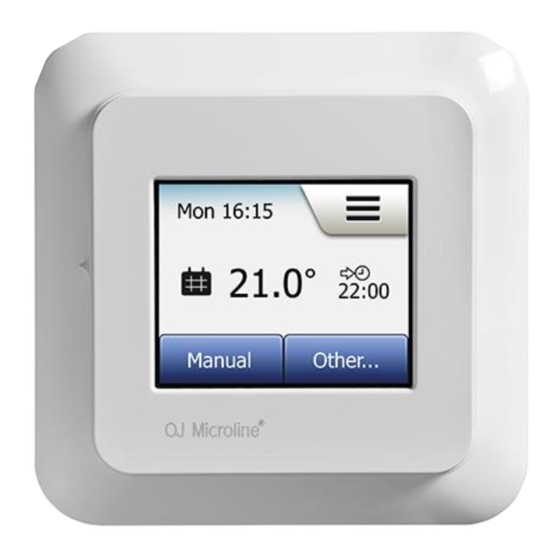

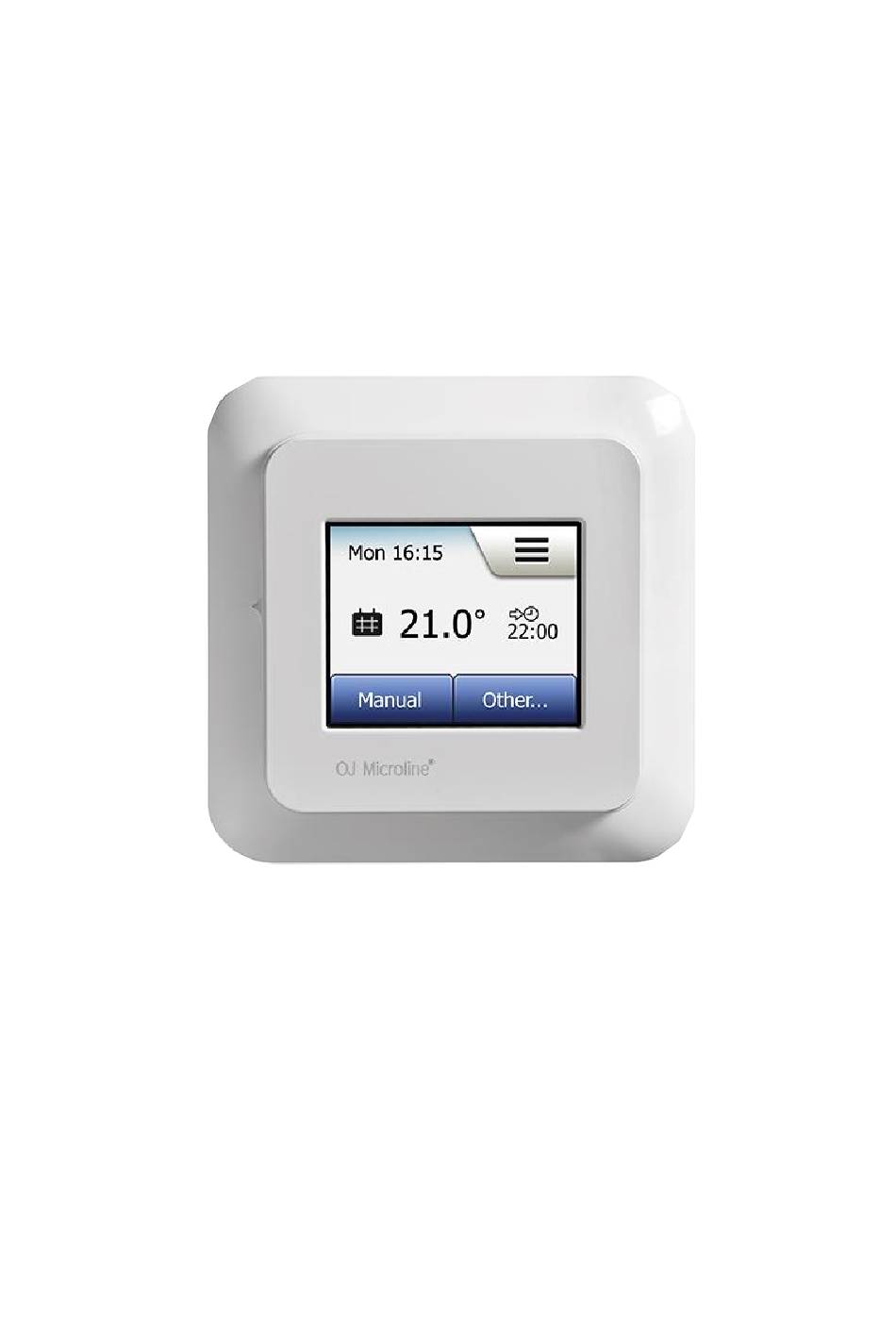

- Page 2 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au MWD5 Wi-Fi Thermostat Speedheat Underfloor heating has been installed in your floor. A floor sensor and thermostat have been installed to ensure optimum temperature control. These items control your floor heating which warms your rooms from the ground up.
- Page 3 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au When your display is red, this indicates the floor is heating. Once the desired temperature is reached, your thermostat will go back to black. Technical Data MWD5 Supply Voltage 240V AC, 50/60hz...
- Page 4 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au Step 5: Floor Type There are two choices you can select: Tile: floors made of TILE or STONE. Soft Floor: WOODEN or other engineered floors. Confirm with a ✓.
- Page 5 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au Programming your heating schedule Start by selecting MENU, the select HEATING SCHEDULE. There are a few different paths you can take from here.
- Page 6 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au Selecting the WEEK TYPE button, you can select from either work days / home days OR all days different. Confirm with a ✓. Once pressing the back arrow, you can select the EVENTS PER DAY menu and select either 4 events per day or 6 events per day.
- Page 7 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au MENU > User Settings > Energy Tariff > Price per kWh You can now set your price. Confirm with a ✓. Moving forward, you will be able to view your energy use levels via energy use. Should you require to troubleshoot your thermometer;...
- Page 8 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au following the following: Step 1: Tap your screen and you will see THREE DOTS displayed. Step 2: Draw the letter “L” on the screen in a single stroke without lifting your finger from the screen.
- Page 9 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au 1. Make sure you are logged into your SWATT OJ App. 2. Make sure each thermostat you have is connected to the WiFi network. 3. If there is no WiFi connection available, try turning your router off and on. The thermostats might be too far away from the router to join the WiFi network.
- Page 10 Speedheat Melbourne Suite 1, 542 Hawthorn Road CAULFIELD SOUTH VIC 3162 (03) 9596 9385 info@speedheat.com.au Important Data Speedheat Installer Name Date of Installation Room Load Resistance Thermostat The above data is important to record as you will need the information for any future upgrades to your electricity supply.
