Summary of Contents for SPEED HEAT MWD5
- Page 1 MWD5 USER MANUAL...

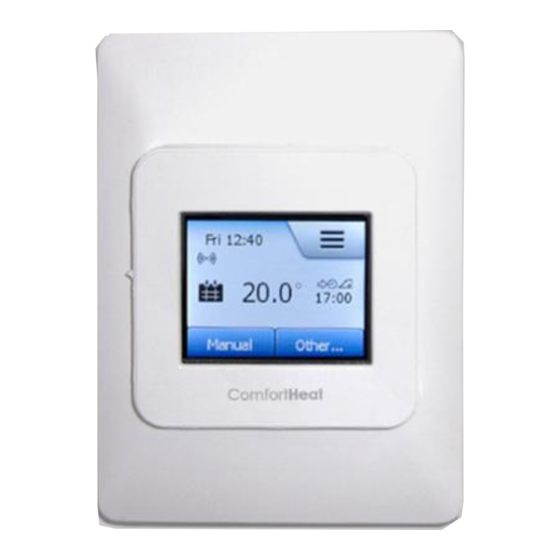

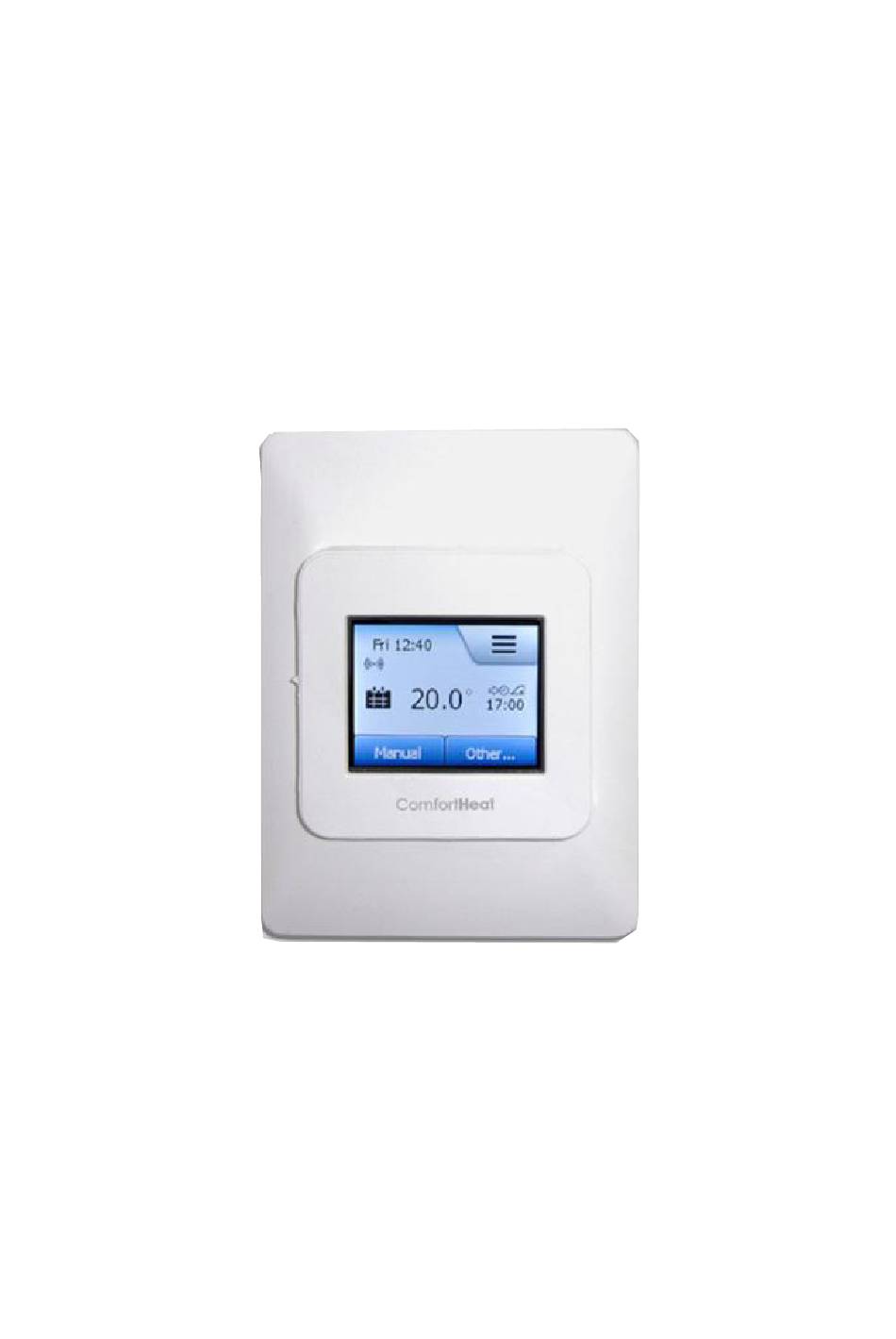

- Page 2 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au MWD5 Wi-Fi Thermostat Speedheat Underfloor heating has been installed in your floor. A floor sensor and thermostat have been installed to ensure optimum temperature control. These items control your floor heating which warms your rooms from the ground up.
- Page 3 (03) 9596 9385 info@speedheat.com.au When your display is red, this indicates the floor is heating. Once the desired temperature is reached, your thermostat will go back to black. Technical Data MWD5 Supply Voltage 240V AC, 50/60hz Output Relay 16A SPST, 3600W max Switching 0.4°C...
- Page 4 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au Step 5: Floor Type There are two choices you can select: Tile: floors made of TILE or STONE. Soft Floor: WOODEN or other engineered floors. Confirm with a ✓. Following the completion of these steps, your underfloor heating is ready for use and will operate according to the pre-set heating schedule.
- Page 5 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au Programming your heating schedule Start by selecting MENU, the select HEATING SCHEDULE. There are a few different paths you can take from here.
- Page 6 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au Selecting the WEEK TYPE button, you can select from either work days / home days OR all days different. Confirm with a ✓. Once pressing the back arrow, you can select the EVENTS PER DAY menu and select either 4 events per day or 6 events per day.
- Page 7 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au MENU > User Settings > Energy Tariff > Price per kWh You can now set your price. Confirm with a ✓. Moving forward, you will be able to view your energy use levels via energy use. Should you require to troubleshoot your thermometer;...
- Page 8 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au following the following: Step 1: Tap your screen and you will see THREE DOTS displayed. Step 2: Draw the letter “L” on the screen in a single stroke without lifting your finger from the screen.
- Page 9 Bathroom and the zone name Home. Each zone is presented on a list and shows the thermostats within that zone. MWD5 Menu on the App On the App, you have the following functions to choose from: Set up schedule: Allows you to programme individual heating schedules for each of your zones.
- Page 10 Speedheat Melbourne (03) 9596 9385 info@speedheat.com.au Important Data Speedheat Installer Name Date of Installation Room Load Resistance Thermostat The above data is important to record as you will need the information for any future upgrades to your electricity supply. Please record in the tables above and keep in a safe place. The electrical resistance can be found on a white tag and can be recorded above as well.
