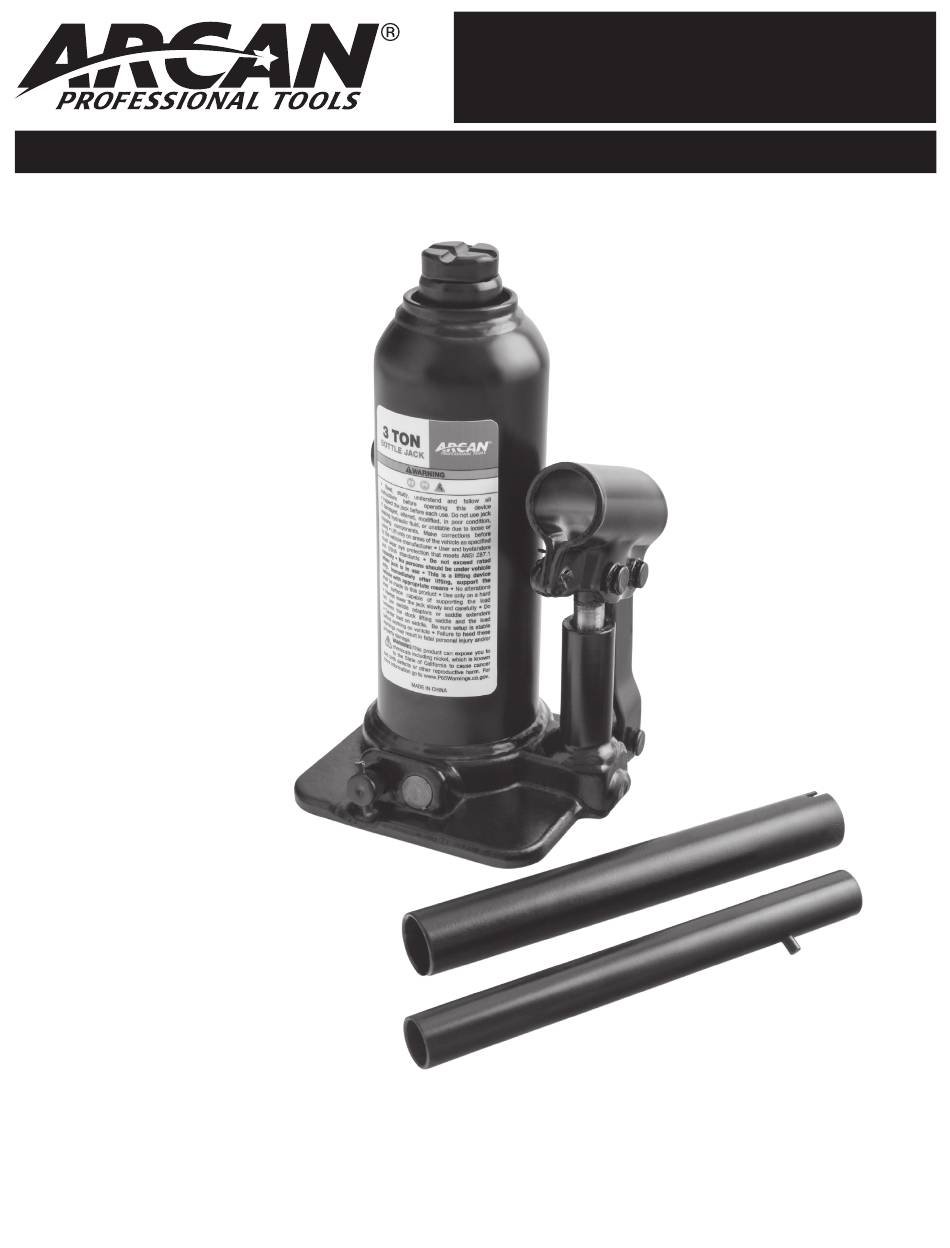

- Page 1 Model ARBJ3000 3 Ton Bottle Jack For Technical Questions, Call: 1-888-355-7371 OWNER'S MANUAL Manufactured to comply with the © Copyright 2022, Arcan Professional Tools ® ASME PASE-2019 Safety Standard ARBJ3000 03/21/2022...
-
Page 2: Warning Information
If the manual or product labels are lost or not legible, contact Arcan for replacements. If the operator is not fluent in English, the product and safety instructions shall be read to and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator comprehends its contents. -
Page 3: Setup Instructions
Model ARBJ3000 3 Ton Bottle Jack For Technical Questions, Call: 1-888-355-7371 OWNER'S MANUAL SETUP INSTRUCTIONS This is the safety alert symbol used for the ASSEMBLY section of this manual to alert you to potential personal injury hazards. Obey all instructions to avoid possible injury or death. -
Page 4: Troubleshooting
4. Handle tends to raise up while the unit is under rated load. Pump the handle rapidly several times to push oil past ball valves in power unit. 5. Unit still does not operate. Contact Arcan authorized hydraulic service center. ARBJ3000 03/21/2022... - Page 5 Long linkage pin Overload spring Short linkage pin Adjustment screw Y-ring O-ring Snap ring Cover screw Pump plunger Check ball Handle socket Safety valve cover RS440428 Rear handle O-ring RS440429 Front handle Backup ring not shown RSARBJ3000PLK Product Label Kit ARBJ3000 03/21/2022...
-
Page 6: Specifications
Model ARBJ3000 3 Ton Bottle Jack For Technical Questions, Call: 1-888-355-7371 SPECIFICATIONS Capacity: 3 Ton (2,721 kgs.) Minimum Lift Height: 7.6 in. (193 mm) Maximum Lift Height: 14.69 in. (373 mm) Lifting Range: 7.09 in. (180 mm) Screw Extension Height: 2.36 in.
