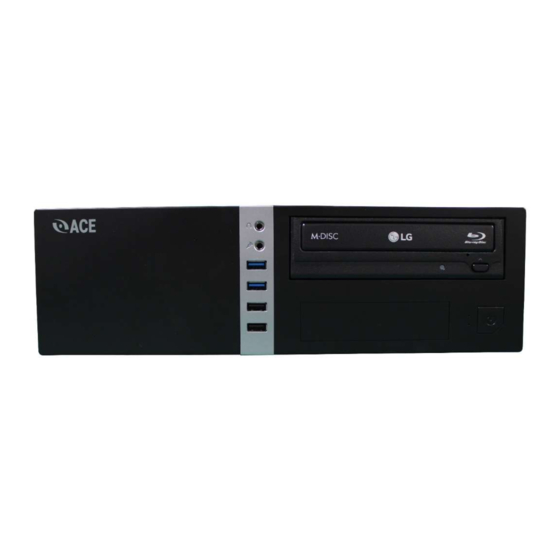

ACE COMPUTERS VS-S660I Technical Reference Manual
  1. Manuals
  2. Brands
  3. ACE COMPUTERS Manuals
  4. Desktop
  5. VS-S660I
  6. Technical reference manual

ACE COMPUTERS VS-S660I Technical Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TECHNICAL REFERENCE GUIDE
ACE VISION SERIES
MODEL: VS-S660I
1
ACE146

Advertisement

Table of Contents
loading

Related Manuals for ACE COMPUTERS VS-S660I

Summary of Contents for ACE COMPUTERS VS-S660I

  • Page 1 TECHNICAL REFERENCE GUIDE ACE VISION SERIES MODEL: VS-S660I ACE146...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DISCLOSURES ..........................3 INTRODUCTION ..........................4 ENEGY STAR AND POWER MANAGEMENT ..................5 ILLUSTRATED SYSTEM DISASSEMBLY/REASSEMBLY INSTRUCTIONS ..........7 TROUBLESHOOTING YOUR PC ...................... 33 MAINTENANCE ..........................35 SOFTWARE UPDATES ........................36 REMOVAL OF PERSONAL DATA ..................... 37 UPGRADES, SERVICE, AND REPAIR ....................

  • Page 3: Disclosures

    Ace Computer’s total liability for all claims will not exceed the price paid for the hardware product. The products sold by Ace Computers are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

  • Page 4: Introduction

    If you have any questions regarding this manual or computer system, please contact our support team through Ace Computers Support page at support.acecomputers.com This manual may be periodically updated without notice. Please check the Ace Computers website for possible updates to the manual revision level. ACE146...

  • Page 5: Enegy Star And Power Management

     Reduced Power Plant Emissions and Carbon Footprint  Wide Selection, Rebates, and Convenience VS-S660I Power Management Settings “As Shipped” The default Power Management settings have been selected for compliance with Energy Star and are recommended by the Energy Star program for optimal energy savings.
  • Page 6 Wake Management Capable of both remote (via network) and scheduled (via real time clock) wake events from Sleep Mode. Provide clients with the ability to centrally manage (via vendor tools) any wake management settings that are configured through hardware settings if the manufacturer has control over such features.

  • Page 7: Illustrated System Disassembly/Reassembly Instructions

    If you are uncertain about replacement or upgrade of your computers, the Ace Computers technical support team does offer “depot” services for on-site system repair and upgrade. Please contact the Ace Computers Technical Support team for additional information and pricing.
  • Page 8 Representative Desktop Component Layout Please note the illustration below is a representative sample of the VS-S660I, your PC may include additional components or variations of this family configuration. Case Fan HDD Storage Device Optical Drive Memory (2- 4 DIMMs) Heat Sink...
  • Page 9 Exploded View of Representative Sample of VS-S660I Model Exploded Diagram 1 Exploded Diagram 1 Legend Component Description Power Supply Chassis Optical Drive (optional) Motherboard Chassis Fan ACE146...
  • Page 10 Exploded Diagram 2 Exploded Diagram 2 Legend Component Description Motherboard Memory M.2 SSD Heatsink ACE146...
  • Page 11 Chassis Cover Removal Location: In order to access the internal components of your system, you will need to remove the left cover of the chassis. Type and number of fastenings: Two thumb screws Tools required: Thumb screws Procedure: Step 1: Ensure the desktop is off, unplugged, and any potential energy is dissipated. Step 2: Unfasten the two (2) thumb screws on the rear panel of the chassis.
  • Page 12 Data Storage Devices Location: The VS-S660I desktop series has the option to utilize both spinning hard drives (HDD) and M.2 SSD storage devices. The storage devices are located as indicated in Figure 1. Type and number of fastenings: HDD = (4) Phillips screws, M.2 SSD = (1) Phillips screw.
  • Page 13 Reinstallation Step 7: Ensure the desktop is off, unplugged, and any potential energy is dissipated. Step 8: Remove the top panel from the chassis as indicated in the “Chassis Cover” section of this manual. Step 9: Follow the steps in the removal section above to lift the chassis carriage and gain access to the hard drive trays.
  • Page 14 M.2 SSD Step 1: Ensure the desktop is off, unplugged, and any potential energy is dissipated. Step 2: Remove the top panel from the chassis as indicated in the “Chassis Cover” section of this manual. Step 3: Identify the M.2 SSD on the motherboard, refer to Figure 1 for additional help.
  • Page 15 Memory Location: The VS-S660I model can contain up to 4 DIMMs of memory. The memory modules are found on the motherboard to the right of the heat sink fan, refer to Figure 1 for additional guidance. Type and number of fastenings: Two (2) latches per memory module.
  • Page 16 Heatsink and Processor Location: The processor is found on the motherboard underneath the heatsink fan. Refer to Figure 1 for additional guidance. The VS-S660I motherboard only accepts a single processor. Type and number of fastenings: Heatsink: 4x Philips screws Processor: Carriage mechanism...
  • Page 17 Heatsink with push pin Step 1: Ensure the desktop is off, unplugged, and any potential energy is dissipated. Step 2: Remove the side panel from the chassis as indicated in the “Chassis Cover” section of this manual. Step 3: Remove the fan connector from the fan header.
  • Page 18 Processor The removal and reinstallation of the CPU is a very delicate process and if not done with care the CPU socket could be damaged and thus leave the motherboard unusable. Step 1: Ensure the desktop is off, unplugged, and any potential energy is dissipated. Step 2: Remove the side panel from the chassis as indicated in the “Chassis Cover”...
  • Page 19 For specific details on reinstallation of the motherboard and any peripheral components of the motherboard refer to the motherboard user manual for ASUS Pro B660M-C D4- CSM. For re-installation of a processor specifically, ensure to utilize a thermal paste between the top of the process and the bottom of the heat sink, this allows for the best thermal heat transfer and effective cooling.
  • Page 20 Location: Certain configurations of desktops may include expansion and/or graphics cards. These can be found in the rear of the chassis, on the opposite side of the power supply for the VS-S660I configuration. The cards are electrically connected to the motherboard via PCIe slots, and physically connected to the case.
  • Page 21 Designated area for additional Expansion Cards/ Graphics Cards For specific details on reinstallation of the motherboard and any peripheral components of the motherboard refer to the motherboard user manual for ASUS Pro B660M-C D4- CSM. Disposal: Selective Treatment/Special Handling Per Annex VII, Directive 2012/19/EU: Graphics and add on expansion cards, contain a printed circuit board of greater than 10 sq.
  • Page 22 Power Supply Module Location: The power supply module is located in the rear of the chassis. Type and number of fastenings: Three (3) Phillips Screws per module. Tools required: Screwdriver Procedure Step 1: Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated.
  • Page 23 Step 9: Reconnect the required power cables. Depending on the configuration of the system this may vary, but the basic system required connection of the following:  24 Pin ATX_PWR (see motherboard diagram below for location)  8 Pin ATX_12V (see motherboard diagram below for location) ...
  • Page 24 Motherboard The motherboard is equipped with a lithium metal battery. The battery must be removed separately from the motherboard and shall be disposed or recovered in compliance with Directive 2008/98/EC. Refer to the “Battery” section of this manual for additional guidance. Location: The motherboard is generally centrally located within the unit.
  • Page 25 Step 9: Use the same screws (8) that were removed from the uninstallation of the motherboard and replace them into the new motherboard based on the pictorial schematic noted above. Step 10: Repopulate all peripheral components based on the various supporting sections listed in this Technical Reference Guide.
  • Page 26 Battery Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.
  • Page 27 Fans Location: The chassis fan in the VS-S660I model is located at the front of the chassis underneath the SATA bays. Type and number of fastenings: Four (4) rubber mounting pins Tools required: None Procedure Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated.
  • Page 28 Speaker Location: The speaker is located on the motherboard near the bottom right-hand corner. Type and number of fastenings: 4 pin connectors Tools required: None Procedure Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated. Step 2: Remove the top panel from the chassis as indicated in the “Chassis Cover”...
  • Page 29 I/O Connections Location: There are three locations on the VS-S660I that have I/O connections. (1) The rear of the chassis (integrated into the motherboard) (2) The front of the chassis (integrated into the chassis front panel) (3) The rear of the chassis (integrated into the graphics card, as applicable)
  • Page 30 Optical Drive (optional) Location: The optical drive is an optional add on for this model. The optical drive is located in the front top portion of the system. Type and number of fastenings: One (1) Phillips screw. Tools required: Screwdriver with PH2 bit. Procedure Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated.
  • Page 31 Reinstallation Step 6: To reinstall the Optical Drive, follow the uninstallation steps backwards. Step 7: Slide optical drive into the front drive bay in the desired location. Step 8: Insert (2) screws on the left side of the chassis (when looking from the front) and (1) screw on the right side of the chassis (when looking from the front).
  • Page 32 External Power Cable Location: The inlet to the power cable is located on the externally facing portion of the power supply. Type and number of fastenings: None, direct pressure connection method. Tools required: None. Procedure: Step 1: Turn the computer off via the operating system. Step 2: Disconnect the external power cable from the main desktop assembly.

  • Page 33: Troubleshooting Your Pc

    TROUBLESHOOTING YOUR PC If your computer will not power on, try the following steps: 1. Make sure the power cord is fully connected to the power supply and to the wall outlet. 2. Make sure the power supply is switched to “ON” (switch located next to the power cord on the back panel of your PC.
  • Page 34 If your computer freezes or crashes during boot, try the following steps: 1. If Windows seems to boot fine but hangs halfway or blue screens and restarts, it may be a software or hardware problem. Try the following steps: 2. Attempt to boot into safe mode. If the computer is stable in safe mode, try uninstalling any recently installed hardware drivers, perform a system restore, and scan for malware.

  • Page 35: Maintenance

    MAINTENANCE Removing Dust Build Up Dust buildup may lead to overheating and could potentially cause serious damage to your PC components. If fans get clogged with dust, they may begin to turn at a slower RPM reducing the effectiveness of the fan and leading to overheating of the PC. The issue of dust build up is applicable to all fans within the system (e.g.

  • Page 36: Software Updates

    For the ASUS Pro B660M-C D4-CSM motherboard, the drivers can be found at https://www.asus.com/motherboards-components/motherboards/csm/pro-b660m-c-d4- csm/helpdesk_bios/?model2Name=Pro-B660M-C-D4-CSM Contact Ace Computers Support Desk for help Ace Computers staffs a technical support desk and is always ready to help. You can contact the team at support@acecomputers.com - or-...

  • Page 37: Removal Of Personal Data

    REMOVAL OF PERSONAL DATA Be sure to back up all information that you desire to keep on alternative drives before deleting data as this process cannot be reversed. Digitally Erasing Information Resetting your PC may be done for various reasons, but one reason may be to remove all your personal information and return the PC to the original settings.
  • Page 38 Option What it Does Remove everything Reinstalls Windows 10/11 and  removes your personal files. Removes apps you installed.  Removes changes you made to  settings. Removes any apps your PC  manufacturer installed. Remove everything > Change settings gives you two options. Data erasure On removes files and cleans the drive.
  • Page 39 Mechanically Destroying Storage Devices – Hard Drive It is important to use proper personal protection equipment (eg. Safety glasses, gloves, etc.) when working with tools, power tools, or using blunt force to destroy an HDD. Use good judgment and caution! HDD: There are several ways to disable/destroy a hard drive mechanically/physically, but these directions will discuss how to do it with commonly available tools.

  • Page 40: Upgrades, Service, And Repair

    UPGRADES, SERVICE, AND REPAIR The following table is a list of all included hardware features, and a few hardware features that could be added as an upgrade option. Note: all add on hardware features do not fall within the original scope of this product and void all certifications/regulatory compliance attestations.
  • Page 41 Ordering Parts, Requesting Repair, or Talking to Technical Support The Ace Computers technical support team is ready and available to help in providing replacement parts, helping to identify compatible upgrades, or to answer software questions. Please have your serial number available for reference when contacting Ace Computers.

  • Page 42: Product Take Back, End Of Life Processing, And E-Waste Program

    Nation Wide Take Back Services If your PC has reached its end of life or is no longer useable, Ace Computers is excited to offer a Nation-Wide take back service. We will work with you to get the product back and will ensure it is proper disposed of with a certified R2 electronics recycling facility.

  • Page 43: Revision History

    REVISION HISTORY Release Date Changes 9.8.2022 Initial Release ACE146...
