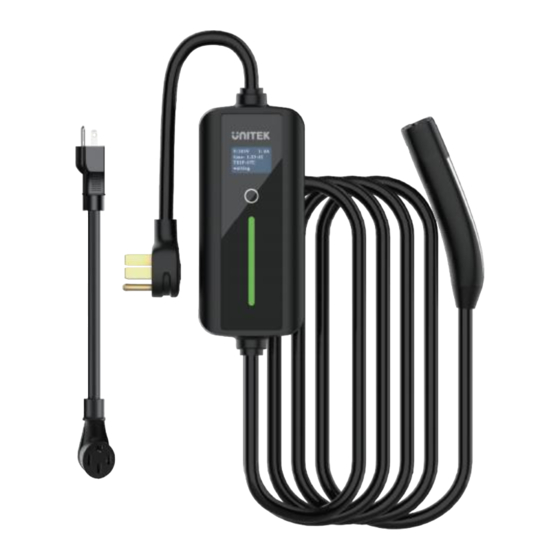

- Page 1 32Amp Portable EV Charger Compatible with Tesla User Manual...
-
Page 2: Product Overview
English Thank you for choosing Unitek 32Amp Portable EV Charger for Tesla. Please read the user manual carefully before use and save them. If you need any help, please contact our professional customer service team at: support_us@unitek-products.com. Product Overview Package Content:... -
Page 3: Product Specification
Product Specification... -
Page 4: Key Description
Key Description Please press the button for 2s to enter adjustment mode, with [CUR] and [APPT] are optional, respectively for adjusting the charging current and setting the charging appointment time. Shortly press the button to switch options, Press 2s the button to enter the corresponding setting option. - Page 5 Short Press Long Press Long Press 8A 16A 24A 32A Long Press V: 236V I: 32A V: 236V I: 8A time: 1:23:45 time: 1:23:45 TEMP: 34℃ TEMP: 34℃ Charging Charging Setting Charging Appointment After entering the charging time setting mode, short-press the button to adjust the scheduled charging time.
-
Page 6: How To Use
Adjustable Appointment Time How to Use 1. Insert the power plug into the power outlet. NEMA 6-20 NEMA 14-50 Level 2 240V NEMA 14-50 2. At a distance of less than 1M, long press the button for 2s and the charging cover on the car pops open automatically. - Page 7 3. Insert the charging head into the charging port of car. 4. Wait for the charging indicator turn green. Q: Is this charger waterproof? A: The charging gun can reach IP54 in working condition, while the protection level of the control box can reach IP66 in unworking condition, it is not suggested to use the charger in extreme environments and avoid the control box from rain.
- Page 8 to select [CUR]. Then short press to select current 8A/16A/24A/32A, long press to confirm setting current. Q: How to set a scheduled charging time? A: Long press the button for 2s to enter adjustment mode, and long press to select [APPT]. Then short press to select the scheduled charging time, from 0-12 hours.
- Page 9 pressing the button, it will automatically connect again for charging after 10 seconds. Warning 1. Please read the instructions before use, if not used following the instructions it may cause fire, electric shock, or serious injury. 2. It is strictly prohibited to disassemble or tamper with this charger, and strictly prohibited from repairing this charger from non-professional workers.
- Page 10 3 Over-current error: 4 Leakage error: 5 Communication abnormality error: 6 Not grounded error: 7 LN short circuit Download User Manual Please download User Manual by scanning QR code or visiting website: www.unitek-products.com/pages/usermanual www.unitek-products.com/ pages/usermanual Search it P1512A P1512A...
