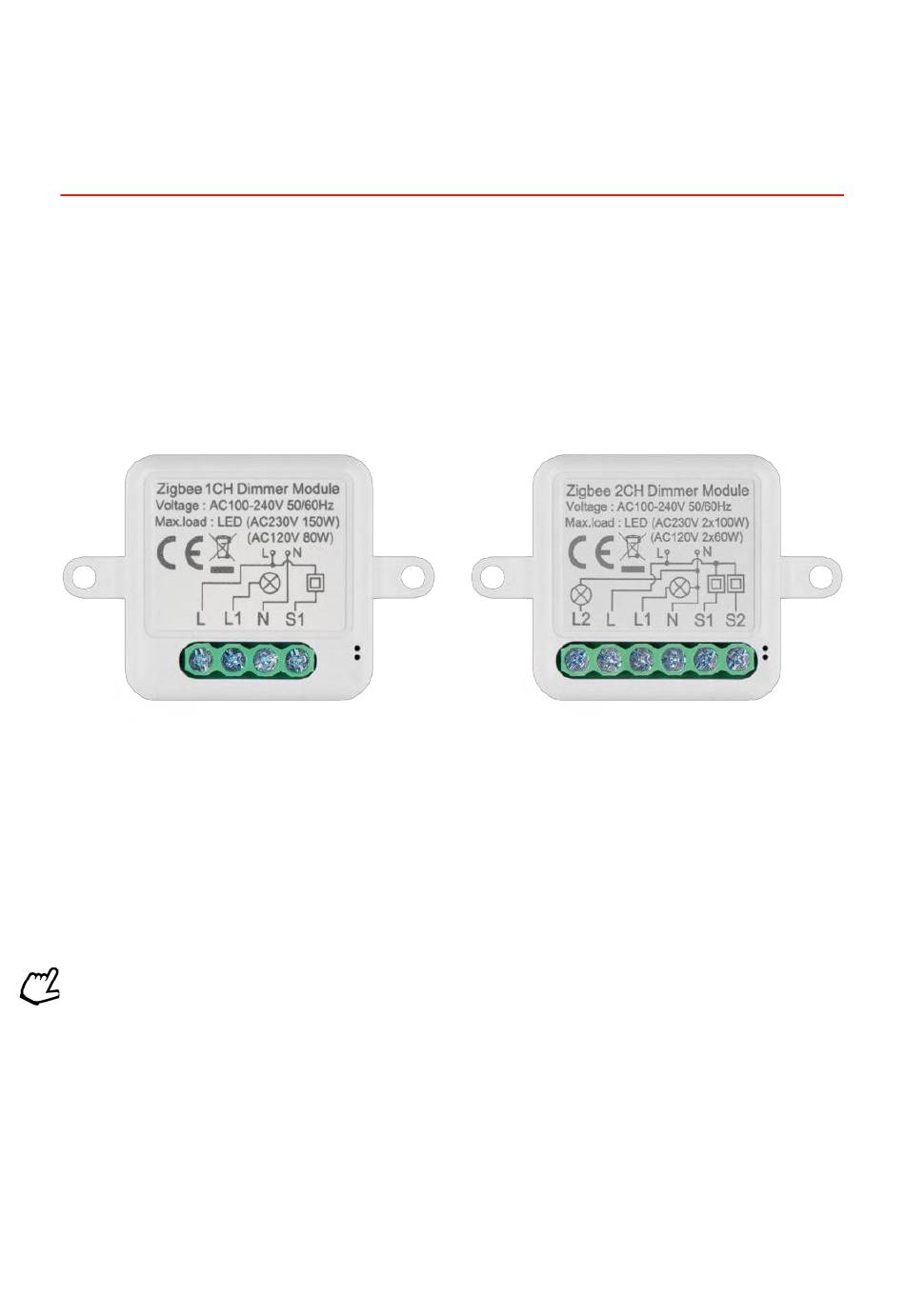

H5107 | H5108
GoSmart ZigBee dimming module
Table of Contents
Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 3
Description of the device ....................................................................................................... 4
Installation and assembly ....................................................................................................... 5
Controls and functions ........................................................................................................... 9
Troubleshooting FAQ ........................................................................................................... 10
1
Advertisement
Table of Contents
Related Manuals for GoSmart H5107l H5108
Summary of Contents for GoSmart H5107l H5108
-
Page 1: Table Of Contents
H5107 | H5108 GoSmart ZigBee dimming module Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................3 Description of the device ....................... 4 Installation and assembly ....................... 5 Controls and functions ......................9... -
Page 2: Safety Instructions And Warnings
Safety instructions and warnings Before using the device, read the instructions for use. Observe the safety instructions in this manual. EMOS spol. s r.o. declares that the products H5107, H5108 are in conformity with the essential requirements and other relevant provisions of the directives. The equipment can be freely operated in the EU. The Declaration of Conformity can be found on the website http://www.emos.eu/download. -
Page 3: Contents Of The Package
Package contents Switching module Manual Technical specifications Power supply: AC 100-240 V 50/60 Hz Dimension: 40 × 40 × 18 mm Net weight: 30 g EMOS GoSmart app for Android and iOS Communication protocol: ZigBee 3.0 (2402~2480 MHz) -
Page 4: Description Of The Device
Description of the device 1 - RESET button 2 - Holes for mounting 3 - Wiring diagram of the relevant module 4 - LED status light • Flashing blue - Device is in pairing mode/ disconnected from the network • Illuminated blue - Device is in operating mode 5 - Terminal block for wiring connection Notice It is strongly recommended that the Smart Switch Module be installed by a person with electrical installation... -
Page 5: Installation And Assembly
Installation and assembly Place the connected module in the installation box under a switch or socket. Thanks to the possibility of fixing, the module can also be installed in various other places (e.g. under plasterboard, in the ceiling...) The wiring diagram can be found below. - Page 6 Wiring diagrams for ZigBee dimming modules 1 channel dimmer - Without switch1 channel dimmer - With two switches 1 channel dimmer - With one switch2 channel dimmer - Without switch 2 channel dimmer - With two switches2 channel dimmer - With one switch...
- Page 7 • The app is available for Android and iOS via Google play and the App Store. • Please scan the QR code to download the app. Open the EMOS GoSmart app and confirm the privacy policy and click I agree. Select the registration option. Enter the name of a valid email address and choose a password.
- Page 8 Reset the module by holding down the RESET button for 5 seconds or by flipping the physical switch 6 times (6 times on-off) and checking that the LED is flashing. Enter the name and password of your Wi-Fi network. This information remains encrypted and is used to allow the module to communicate with your mobile device remotely.
-
Page 9: Controls And Functions
Controls and functions Icons and indicator lights 1 - Advanced settings (described in more detail in the following chapter) 2 - Switch button (ON/OFF) 3 - Brightness settings 4 - Minimum and maximum brightness settings 5 - Choosing the type of light source 6 - Timer (turns on/off after the selected time) 7 - Planning 8 - Module settings... -
Page 10: Troubleshooting Faq
Troubleshooting FAQ I can't get the devices to pair. What can I do? • Make sure you are using a 2.4 GHz wifi network and have a strong enough signal • Allow the app all permissions in the settings • Make sure you are using the latest version of the mobile operating system and the latest version of the app What should I do if I change my WIFI network or password? •...
