- Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Installing M.2 PCIe x4 / SATA SSD module -----------------------------------------------------------11 Setting up your ZOTAC ZBOX ------------------------------------------------------------------------------12 Positioning the ZOTAC ZBOX ------------------------------------------------------------------------------14 Mounting the ZOTAC ZBOX to an LCD monitor ----------------------------------------------------14 Installing drivers and software -----------------------------------------------------------------------------16 Using your ZOTAC ZBOX ------------------------------------------------------------------------------------16 Configuring a wireless connection ----------------------------------------------------------------------16... -
Page 4: Product Specifications
ZOTAC ZBOX Product specifications Processor • Intel Alder Lake N100 (quad core, 0.8 GHz, up to 3.4 GHz) Onboard graphics • Intel UHD Graphics • HDMI 2.0 (max resolution: 4096×2160 @60Hz) • DP 1.4 (max resolution: 4096×2160 @60Hz) • DP output via USB-C (max 3 output) Memory support •... -
Page 5: Safety Information
ZOTAC ZBOX Safety information Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for information tech- nology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before operating your system. -
Page 6: Welcome
ZOTAC ZBOX Welcome Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items are damaged or missing, contact your retailer. Package contents • 1 x ZOTAC ZBOX •... -
Page 7: Getting To Know Your Zotac Zbox

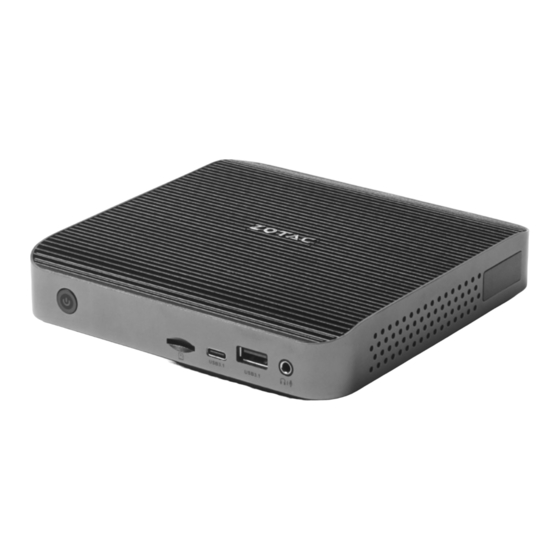

ZOTAC ZBOX Getting to know your ZOTAC ZBOX Front view Refer to the diagram below to identify the components on the front of the ZBOX. 1. Power button The power button turns the system ON and OFF. 2. MicroSD memory card slot The built-in memory card reader supports Micro SDHC/SDXC cards to expand the storage capabilities of the ZOTAC ZBOX. -
Page 8: Rear View
ZOTAC ZBOX Rear view Refer to the diagram below to identify the components on the back of the system. 1. WiFi antenna connector The WiFi antenna connector supports the included WiFi antenna. 2. Ethernet ports The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area networks (LAN) with speeds of 10/100/1000Mbps. -
Page 9: Customizing The Zotac Zbox
ZOTAC ZBOX Customizing the ZOTAC ZBOX Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX . 1. Loosen the 4 screws securing the bottom cover. 2. Remove the bottom cover. -
Page 10: Installing A Memory Module
ZOTAC ZBOX Installing a memory module 1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle. 2. Gently press down on the memory module until it locks into place by the arms of the... -
Page 11: Removing The Memory Module
ZOTAC ZBOX Removing the memory module 1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module. 2. Remove the memory module from the slot at a 45-degree angle. -
Page 12: Installing M.2 Pcie X4 / Sata Ssd Module
ZOTAC ZBOX Installing M.2 PCIe x4 / SATA SSD module 1. Locate the M.2 SSD slot and remove the screw. 2. Attach the screw to the M.2 SSD module, and insert the M.2 SSD module into the slot. 3. Install the screw on board. -
Page 13: Setting Up Your Zotac Zbox
ZOTAC ZBOX Setting up your ZOTAC ZBOX Please connect your peripherals before using your ZOTAC ZBOX 1. Connecting the WiFi antenna Connect the WiFi antenna to the WiFi antenna connector. 2. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router. - Page 14 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the AC outlet to conserve power.
-
Page 15: Positioning The Zotac Zbox
ZOTAC ZBOX Positioning the ZOTAC ZBOX • Do not position the ZOTAC ZBOX where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZOTAC ZBOX mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference. - Page 16 ZOTAC ZBOX 3. Align the ZOTAC ZBOX mounting holes to the VESA mount attachment pegs, and gently press down to secure the ZBOX to the mount. 4. Connect the ZOTAC ZBOX to your LCD monitor with an HDMI/DP cable.
-
Page 17: Installing Drivers And Software
ZOTAC ZBOX Installing drivers and software The ZOTAC ZBOX barebone version does not ship with an operating system preinstalled and driver. The user should download the devices driver from ZOTAC website. Using your ZOTAC ZBOX Configuring a wireless connection Please follow the instructions below to connect to a wireless network:...
