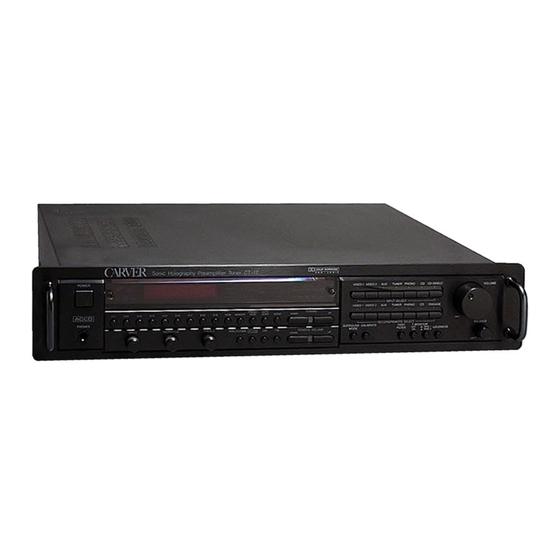

Carver CT-17 Service Manual

i
:
|
}
i
4
4
2
4
q
i
a
|
4
lo
4
ae GSN) AR LT Aaceaae O

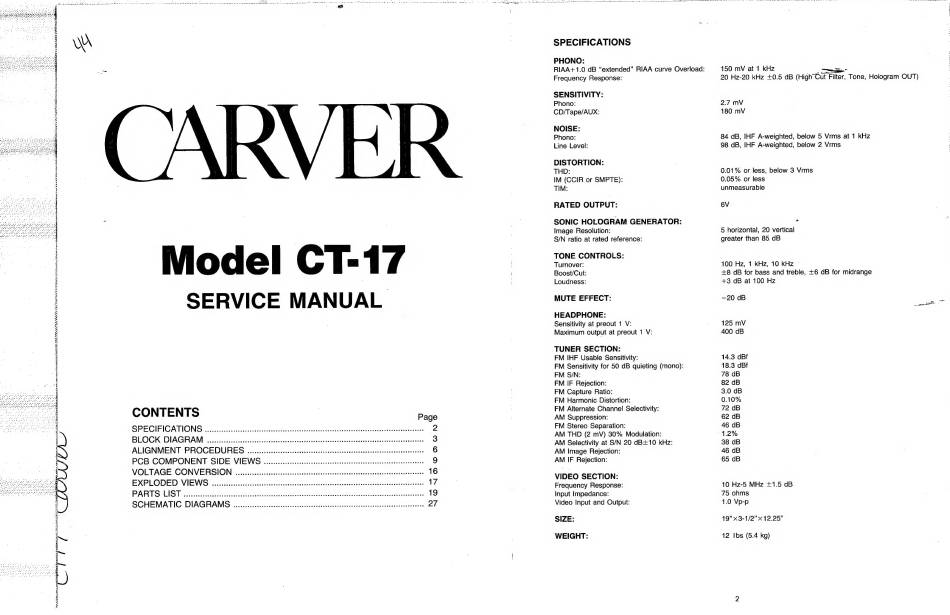

Model CT-17
SERVICE MANUAL
CONTENTS Page
SPECIFICATIONS «65, oatestenciadys cigsenecieeebeamceabiavd Aco eeacentnaierg ceapaecanvinviasesaaneegecss 2
BUOGK, DIAGRAM eeesisieicscnissuacuseessotghitons tatshine ieusee getoutencenenasvidel Wetheerlesveanaeensiat 3
ALIGNMENT PROGEDURES sctssiccssccccasinsasiedentaucsrscsvevevesnecnedennsnstasetcessscesseienes 6
PCB COMPONENT. SIDE: VIEWS: cise cscctscccssoscavessssannaxecdecasiaseatansedeneabdonetypicats 9
VOLTAGE CONVERSION?! vccessszideseescicnctictcvcssersensesnueaiocesmesnnevtingninisassadsdsoseanevysy 16
EXPLODED "VIB Wish cusezes. 2usessconcisense cee niwntevenn fav plabioureleninctrata deat ties 17
PARTS EIST sisiececiciccctiiuntectacteercbobssuvcc tesahosnsnninrasuuctmeiegeasessnnsensucensteebaveenbevenest 19
SGHEMATIC-DIAGRAMS tescccssccescacicetaitatessciivies ssaileeeinbethnaanexaacon ce ieaedaieanancdaseneets 27
SPECIFICATIONS
PHONO:
RIAA+1.0 dB "extended" RIAA curve Overload:
Frequency Response:
SENSITIVITY:
Phono:
CD/Tape/AUX:
NOISE:
Phono:
Line Level:
DISTORTION:
THD:
IM (CCIR or SMPTE):
TIM:
RATED OUTPUT:
SONIC HOLOGRAM GENERATOR:
Image Resolution:
S/N ratio at rated reference:
TONE CONTROLS:
Turnover:
Boost/Cut:
Loudness:
MUTE EFFECT:
HEADPHONE:
Sensitivity at preout 1 V:
Maximum output at preout 1 V:
TUNER SECTION:
FM IHF Usable Sensitivity:
FM Sensitivity for 50 dB quieting (mono):
FM S/N:
FM IF Rejection:
FM Capture Ratio:
FM Harmonic Distortion:
FM Alternate Channel Selectivity:
AM Suppression:
FM Stereo Separation:
AM THD (2 mV) 30% Modulation:
AM Selectivity at S/N 20 dB+10 kHz:
AM Image Rejection:
AM IF Rejection:
VIDEO SECTION:
Frequency Response:
Input Impedance:
Video Input and Output:
SIZE:
WEIGHT:
150 mV at 1 kHz x
: . =
20 Hz-20 kHz +0.5 dB (High Cut Filter, Tone, Hologram OUT)
2.7 mV
180 mV
84 dB, IHF A-weighted, below 5 Vrms at 1 kHz
98 dB, IHF A-weighted, below 2 Vrms
0.01% or less, below 3 Vrms
0.05% or less
unmeasurable
6V
5 horizontal, 20 vertical
greater than 85 dB
100 Hz, 1 kHz, 10 kHz
+8 dB for bass and treble, +6 dB for midrange
+3 dB at 100 Hz
—20 dB
125 mV
400 dB
14.3 dBf
18.3 dBi
78 dB
82 dB
3.0 dB
0.10%
72 dB
62 dB
46 dB
1.2%
38 dB
46 dB
65 dB
10 Hz-5 MHz +1.5 dB
75 ohms
1.0 Vp-p
19" X3-1/2" 12.25"
12 Ibs (5.4 kg)
