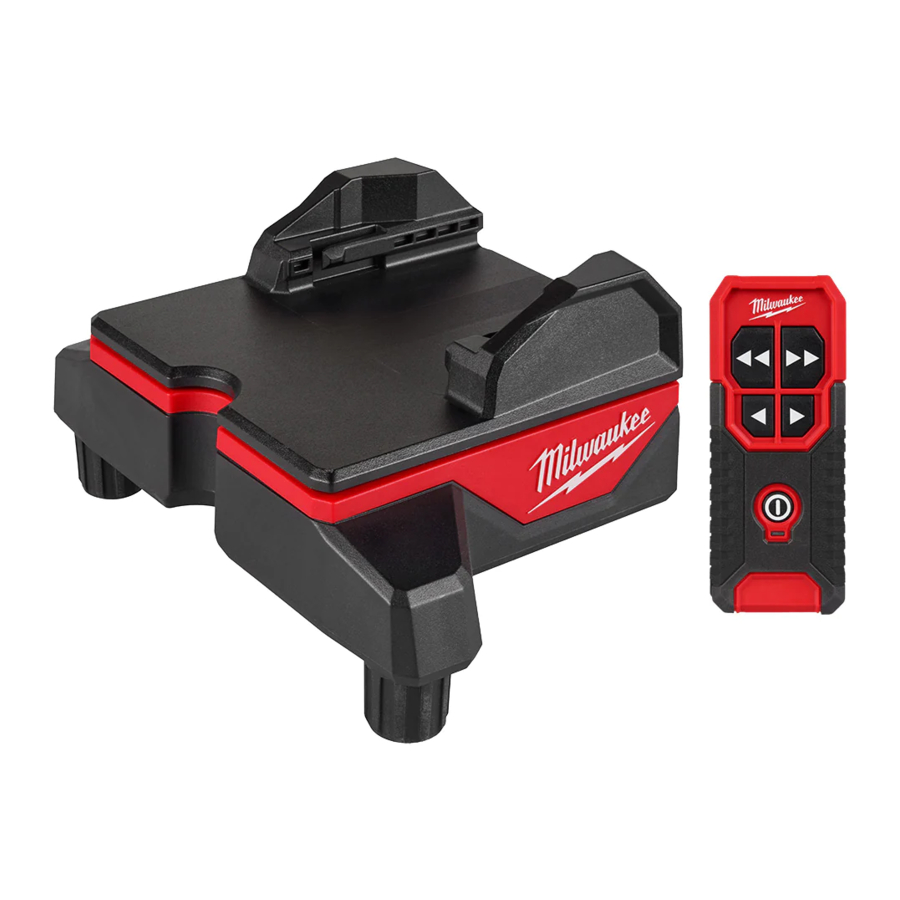

Milwaukee 48-35-1314 - LASER ALIGNMENT BASE W/REMOTE Manual

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all instructions. Failure to follow all instructions may result in electric shock, fire and/or serious personal injury. Save these instructions.

• This tool is designed to be powered by AA batteries properly inserted into the tool. Do not attempt to use with any other voltage or power supply. Do not use zinc-carbon batteries.
•
  Chemical Burn Hazard. A new or used battery can cause severe internal burns and lead to death in as little as 2 hours if swallowed or enters the body. Keep away from children. If you think batteries may have been swallowed or entered the body, seek immediate medical attention.
• Do not mix new and used batteries. Do not mix brands (or types within brands) of batteries.
• Do not mix rechargeable and non-rechargeable batteries.
• Install batteries according to polarity (+ / –) diagrams. Do not install batteries backwards. Batteries can explode or leak.
• Do not crush, drop, damage, or expose batteries to high temperature. Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
• Do not incinerate or dismantle batteries. Properly dispose of used batteries immediately.
• For indoor use.

FUNCTIONAL DESCRIPTION

SPECIFICATIONS

SYMBOLOGY

	Volts
	Direct Current

ASSEMBLY

Attaching Laser to the Unit

The alignment base can be used with MILWAUKEE M12, MILWAUKEE REDLITHIUM USB, and alkaline lasers.

• To attach, align the grooves on the pivot bracket with the laser adapter features on the rotating top plate. Slide the laser back until latched in place.
• To remove, carefully slide the pivot bracket on the laser out of the base of the mount.

Changing Batteries

Only use recommended batteries. If the tool will not be used for a long time, remove the batteries as a protection against corrosion. Change batteries when the base and/or remote light is red.

To change the batteries:

1. Remove the laser from the wireless laser alignment base.
2. Unscrew and lift latch to open battery door.
3. Insert 3-AA batteries according to the +/- polarity marked in the compartment.
4. Install the battery door and fasten securely.

OPERATION

Pairing Remote to the Unit

The remote control is not intended to be unpaired from the alignment base.

• If the remote becomes unpaired, hold the power button on remote control for 3 seconds, then hold power button on base for 3 seconds to repair.

Turning ON/OFF the Device

The alignment base can be used with MILWAUKEE M12, MILWAUKEE REDLITHIUM USB, and alkaline lasers. Ensure the alignment base is powered on, and the LED is solid green.

• To turn ON, press the power button, the LED will turn green.
• To turn OFF, press the power button until the LED turns off completely.

Using the Remote Control

The remote control can only be used with one alignment base at a given time. To avoid interference with other alignments bases on the same jobsite, space out the tools from one another. The alignment base and remote control have three modes; macro-sweep, micro-sweep, and micro-step.

• To turn ON, press the power button on the remote control.

To adjust the alignment base, use the arrow buttons on the remote control:

• To macro adjust, use the buttons with two triangles on it. This can be used in either left or right directions.
• To micro adjust, use the buttons with one triangle on it. This can be used in either left or right directions.
• To sweep, long hold the button, this can be done be with macro and micro buttons on the remote control.
• To turn OFF, press the power button until the LED turns off completely on the alignment base.

Low Battery for the Unit and Remote Control

The alignment base uses alkaline batteries, please see below instructions for each LED status colors.

• For normal operation, the LED will be green, unless the remote control is unpaired, then the LED will be red.
• For low battery status, the LED will be solid red.
• If the batteries are depleted and the power button is pressed, the LED will pulse red for 1 second, then the alignment base will turn off.

MAINTENANCE

Cleaning
Clean dust and debris from vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

SERVICE

UNITED STATES

1-800-SAWDUST (1.800.729.3878)
Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

CANADA

Milwaukee Tool (Canada) Ltd 1.877.948.2360
Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a MILWAUKEE power tool.
