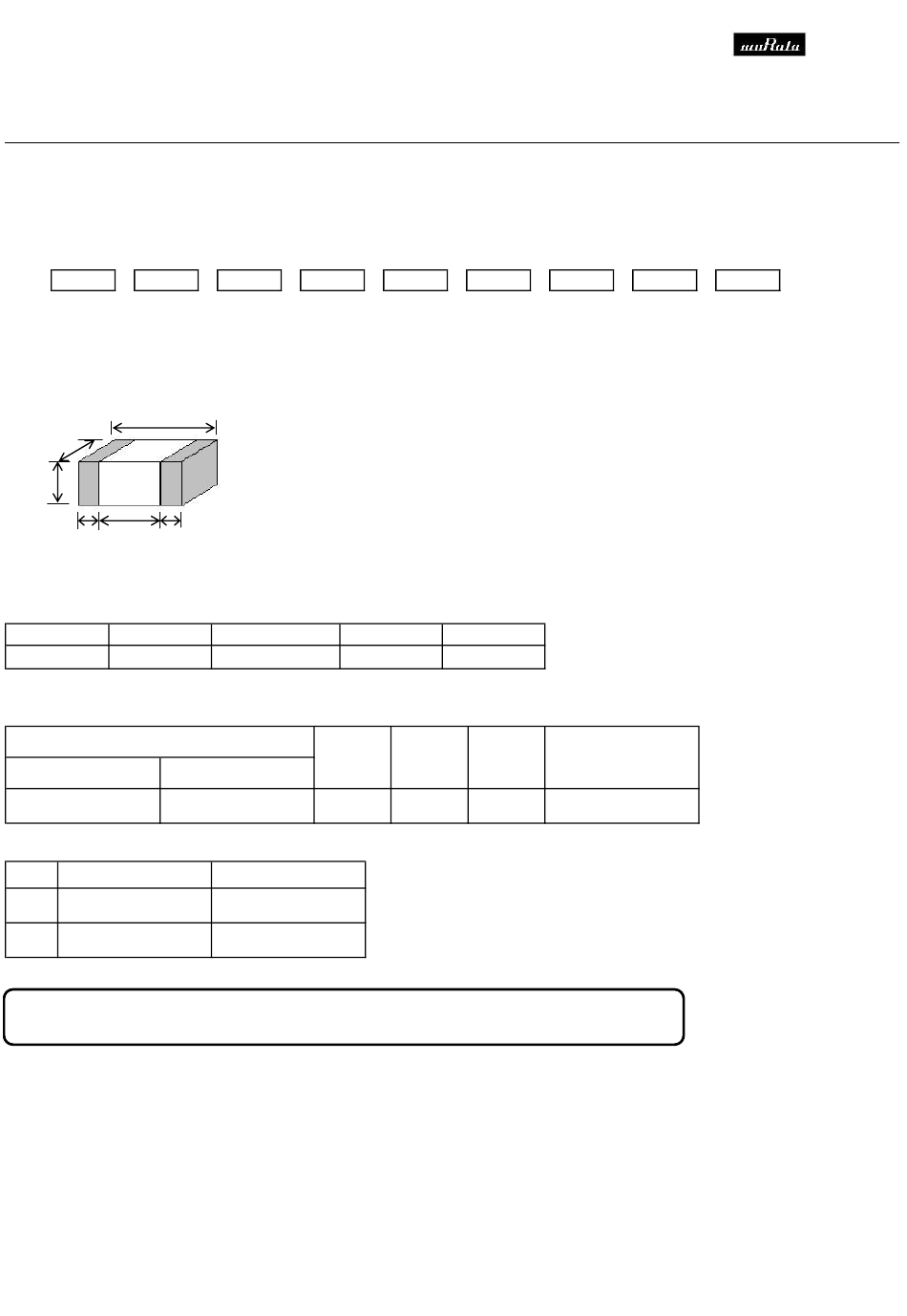

Murata GCJ32ER71C226KE01 Series Reference Sheet

Only reflow soldering chip monolithic ceramic capacitor soft termination type for automotive
Hide thumbs

Advertisement

Quick Links

Download this manual
Only Reflow Soldering
CHIP MONOLITHIC CERAMIC CAPACITOR SOFT TERMINATION TYPE FOR AUTOMOTIVE
GCJ32ER71C226KE01_ (1210, X7R, 22uF, 16Vdc)
_: packaging code
1.Scope
This product specification is applied to Chip Monolithic Ceramic Capacitor Soft Termination Type used for Automotive
Electronic equipment.
This product is applied for Only Reflow Soldering.
　　
2.MURATA Part NO. System
(Ex.)
GCJ
32
(1)L/W
Dimensions
3. Type & Dimensions
L
W
T
e
g
e
(1)-1 L
(1)-2 W
3.2±0.4
2.5±0.3
4.Rated value
(3) Temperature Characteristics
(Public STD Code):X7R(EIA)
Temp. coeff
or　Cap. Change
-15 to 15 %
5.Package
mark
(8) Packaging
f180mm Reel
L
EMBOSSED W8P4
f330mm Reel
K
EMBOSSED W8P4
Product specifications in this catalog are as of Jun.12,2013,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
GCJ32ER71C226KE01-01
E
R7
(2)T
(3)Temperature
Dimensions
Characteristics
(2) T
2.5±0.3
0.3 min.
(4)
DC Rated
Temp. Range
Voltage
(Ref.Temp.)
-55 to 125 °C
16 Vdc
(25 °C)
Packaging Unit
1000 pcs./Reel
4000 pcs./Reel
1C
226
(6)Capacitance
(4)DC Rated
(5)Nominal
Tolerance
Voltage
Capacitance
(Unit:mm)
e
g
1.0 min.
(6)
(5) Nominal
Capacitance
Capacitance
Tolerance
22 uF
±10 %
1
Reference Sheet
K
E01
(7)Murata's
(8)Packaging
Control Code
Specifications and Test
Methods
(Operating
Temp. Range)
-55 to 125 °C
L
Code

Advertisement

loading
Need help?

Need help?

Do you have a question about the GCJ32ER71C226KE01 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Murata GCJ32ER71C226KE01 Series

Summary of Contents for Murata GCJ32ER71C226KE01 Series

  • Page 1 Reference Sheet 1.Scope This product specification is applied to Chip Monolithic Ceramic Capacitor Soft Termination Type used for Automotive Electronic equipment. This product is applied for Only Reflow Soldering. 　　 2.MURATA Part NO. System (Ex.) (7)Murata’s (2)T (6)Capacitance (8)Packaging (1)L/W...
  • Page 2 ■AEC-Q200 Murata Standard Specification and Test Methods AEC-Q200 Test Item Specification. AEC-Q200 Test Method Pre-and Post-Stress Electrical Test 2 High Temperature The measured and observed characteristics should satisfy the Set the capacitor for 1000±12 hours at 150±3℃. Set for Exposure (Storage) specifications in the following table.
  • Page 3 ■AEC-Q200 Murata Standard Specification and Test Methods AEC-Q200 Test Item Specification. AEC-Q200 Test Method The measured and observed characteristics should satisfy the 7 Operational Life Apply 150% of the rated voltage for 1000±12 hours at 125±3℃. specifications in the following table.
  • Page 4 ■AEC-Q200 Murata Standard Specification and Test Methods AEC-Q200 Test Item Specification. AEC-Q200 Test Method 14 Thermal Shock The measured and observed characteristics shall satisfy the Fix the capacitor to the supporting jig in the same manner and under specifications in the following table.
  • Page 5 ■AEC-Q200 Murata Standard Specification and Test Methods AEC-Q200 Test Method AEC-Q200 Test Item Specification. 18 Board Flex Appearance No marking defects Solder the capacitor on the test jig (glass epoxy board) shown in Fig1 using a eutectic solder. Then apply a force in the direction shown in Fig 2 for 5±1sec.
  • Page 6 ■AEC-Q200 Murata Standard Specification and Test Methods AEC-Q200 Test Item Specification. AEC-Q200 Test Method 21 Capacitance Capacitance R7 : Within ±15% The capacitance change should be measured after 5 min. at 　　　　　　　(-55℃ to +125℃) each specified temperature stage. Temperature Change Characteristics The ranges of capacitance change compared with the above 25℃...
  • Page 7 Ｐａｃｋａｇe ＧＣＪ　Ｔｙｐｅ 1.Tape Carrier Packaging(Packaging Code:D/E/F/L/J/K) 1.1 Minimum Quantity(pcs./reel) φ180mm reel φ330mm reel Type Paper Tape Plastic Tape Paper Tape Plastic Tape Code:D/E Code:L Code:F/J Code:K GCJ18 4000 10000 4000 10000 GCJ21 4000 10000 3000 10000 3000 10000 GCJ31 3000 10000 2000 6000...
  • Page 8 Ｐａｃｋａｇe ＧＣＪ　Ｔｙｐｅ 　(2)GCJ21/31/32 T:0.85 min. (in:mm) 0.25±0.1(T≦1.80mm) 4.0±0.1 4.0±0.1 0.3±0.1(T：2.5mm) 2.0±0.1 +0.1 φ1.5 Ａ ＊4 1.7 max.(T≦1.25mm) 2.5 max. (T:1.35/1.6mm) 3.0 max. (T:1.8/2.0mm) 3.7 max. (T≧2.5mm) ＊4 Code GCJ21 GCJ31 GCJ32 1.45±0.2 1.9±0.2 2.8±0.2 2.25±0.2 3.5±0.2 3.5±0.2 JEMCGP-01896...
  • Page 9 め状態 ( 単位： mm) Ｐａｃｋａｇe ＧＣＪ　Ｔｙｐｅ (in:mm) Fig.1 Package Chips Chip Fig.2 Dimensions of Reel 2.0±0.5 φ21±0.8 ｗ Fig.3 Taping Diagram GCJ32 max. 16.5 max. 10±1.5 Top Tape : Thickness 0.06 Feeding Hole :As specified in 1.2. Hole for Chip : As specified in 1.2. Bottom Tape :Thickness 0.05 (Only a bottom tape existence ) Base Tape : As specified in 1.2.
  • Page 10 Ｐａｃｋａｇe ＧＣＪ　Ｔｙｐｅ ﾁｯﾌﾟ詰め状態 ( 単位： mm) 1.3 Tapes for capacitors are wound clockwise shown in Fig.3. (The sprocket holes are to the right as the tape is pulled toward the user.) 1.4 Part of the leader and part of the vacant section are attached as follows. (in:mm) Tail vacant Section Chip-mounting Unit...

  • Page 11: Limitation Of Use
