Instruction Manual
DLED49287FHDCNTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLED49287FHDCNTD and is the answer not in the manual?

Questions and answers

Related Manuals for Bush DLED49287FHDCNTD

Summary of Contents for Bush DLED49287FHDCNTD

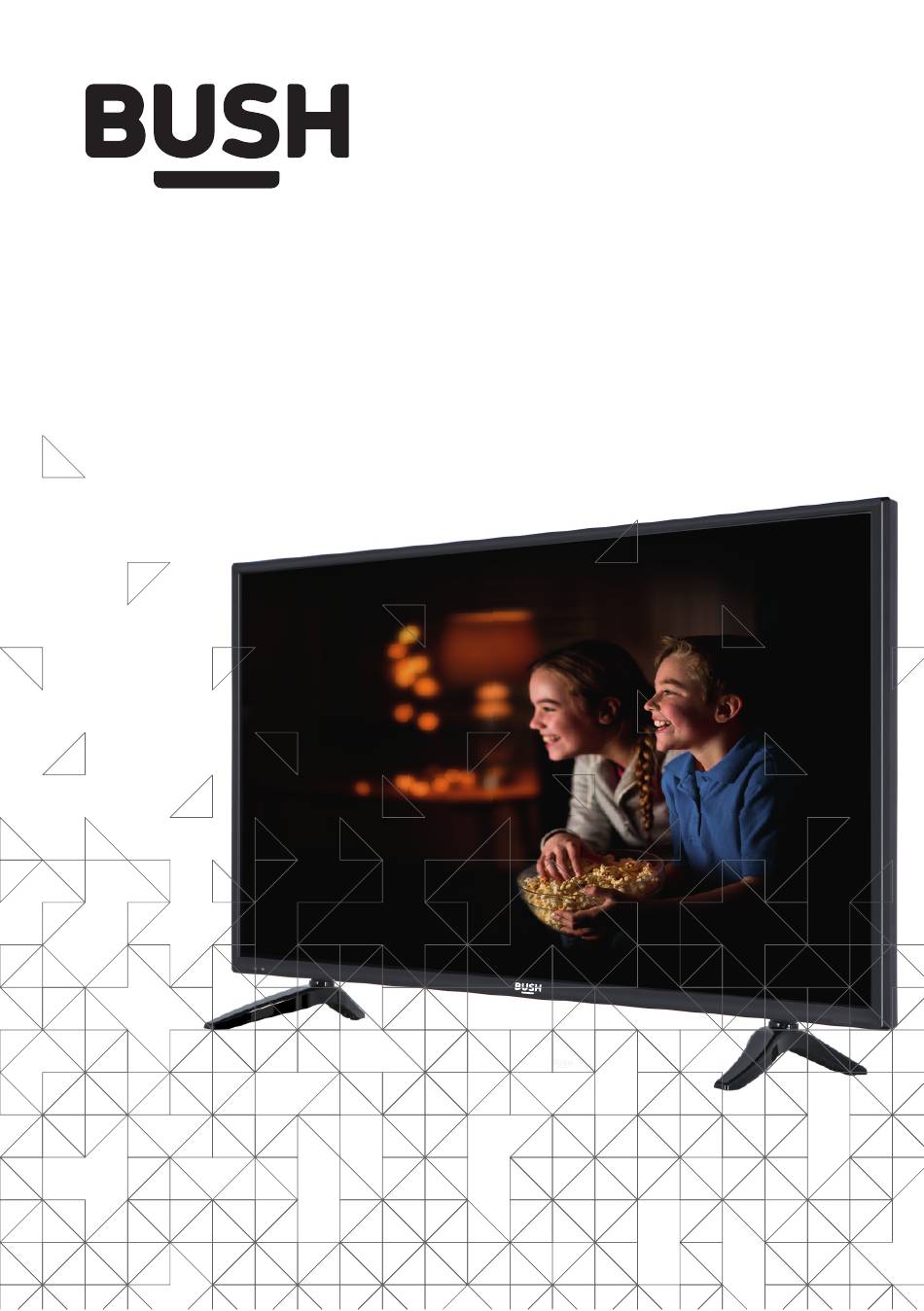

  • Page 1 Instruction Manual DLED49287FHDCNTD...

  • Page 2: Table Of Contents

    Contents Support ..............6 Environmental Information........7 Features ..............7 Accessories Included..........7 Standby Notifications ..........7 TV Control Switch & Operation.......8 Inserting the Batteries into the Remote ....8 Connect Power ............8 Antenna Connection ..........8 Notification ..............8 Disposal information ..........9 Specification ............9 Remote Control ............10 Connections............
  • Page 3 Important safety precautions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to CAUTION alert the user to the presence of uninsulated “dangerous voltage” within the product’s RISK OF ELECTRIC SHOCK enclosure that may be of sufficient magnitude DO NOT OPEN to constitute a risk of electric shock of persons.
  • Page 4 equipment. High temperatures can melt plastic and holding its neck, as this could result in damage to the lead to fires. plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet DON’T use makeshift stands and NEVER fix legs with hands as this could cause a short circuit or electric wood screws - to ensure complete safety always fit...
  • Page 5 Wall Mounting (optional) NOTE: The TV set should be stored in a dry and • To prevent injury, this TV must be securely attached to dust-free room. the wall in accordance with the installation instructions Connection to a Television Distribution (if the option is available).
  • Page 6 Symbols in this Instruction Book The following symbols are used in the Instruction Book as a marker for restrictions and precautions and safety instructions. Note such information for security reasons. WARNING If you do not pay attention to such a marked warning, it can cause serious injury or death.

  • Page 7: Support

    Support Technical experts are available 7 days a week • Simple help and advice on setting up your digital equipment (image). • Guidance on connecting other devices to your television such as a DVD player, Sky, home cinema system or a games console. •...

  • Page 8: Environmental Information

    • PC input Environmental Information • Game Mode (Optional) This television is designed to be environment friendly. To reduce energy consumption, you can follow these • Picture off function steps: • Ethernet (LAN) for Internet connectivity and service If you set the Energy Saving to Minimum, Medium, •...

  • Page 9: Tv Control Switch & Operation

    Changing Channels and Volume TV Control Switch & Operation You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote. Inserting the Batteries into the Remote Lift the cover on the back of the remote gently. Insert two AAA batteries.

  • Page 10: Disposal Information

    For DTS patents, see http://patents.dts.com. Specification Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol PAL BG/DK/II’ TV Broadcasting together are registered trademarks, and DTS SECAM BG/DK TruSurround is a trademark of DTS, Inc. DTS, Inc.

  • Page 11: Remote Control

    Remote Control Standby: Switches On / Off the TV TV: Displays channel list / Switches to TV Source Volume +/- Menu: Displays TV menu OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode) Back/Return: Returns to previous screen, opens index page (in TXT mode) Internet: Opens the portal page, where you can reach many web based applications...

  • Page 12: Connections

    Connections Connector Type Cables Device NOTE: When connecting a device via the YPbPr or Side Scart AV input, you must use the Connection connection cables to enable (back) connection. See the illustrations on the left side. | You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA Connection...

  • Page 13: Switching On/Off

    Press OK button on the remote control to continue Switching On/Off and the Network/Internet Settings menu will be To Switch the TV On displayed. Please refer to Connectivity section to Connect the power cord to a power source such as a configure a wired or a wireless connection.

  • Page 14: Media Browser Menu

    other cables between the TV and the audio system Media Browser Menu (A/V receiver or speaker system). You can play photo, music and movie files stored on a When ARC is active, TV does not mute its other audio USB disk by connecting it to your TV. Connect a USB outputs automatically.

  • Page 15: Tv Menu Contents

    TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode Mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen.
  • Page 16 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
  • Page 17 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
  • Page 18 This setting configures the power up mode preference. Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.

  • Page 19: General Tv Operation

    Internet Lock: If this option is set to ON, the open General TV Operation browser application in the portal will be disabled. Set Using the Channel List to OFF to release the application again. The TV sorts all stored stations in the Channel List. Set PIN: Defines a new PIN number.

  • Page 20: Teletext Services

    Now/Next Schedule Software upgrade search via user interface Navigate (Directional buttons): Press the On the main menu select System>Settings and then Directional buttons to navigate through the channels More. Navigate to Software upgrade and press the and events. OK button. In Upgrade options menu select Scan Options (OK button): Displays event options.

  • Page 21: To Program Your Sky Remote For Your Tv

    Input sources - can not be selected PC Input Typical Display Modes • If you cannot select an input source, it is possible The following table is an illustration of some of the that no device is connected. If not; typical video display modes.

  • Page 22: Av And Hdmi Signal Compatibility

    AV and HDMI Signal Compatibility Source Supported Signals Available SECAM NTSC4.43 (SCART) NTSC3.58 RGB 50/60 SECAM Side AV NTSC4.43 NTSC3.58 480i, 480p 60Hz 576i, 576p 50Hz YPbPr 720p 50Hz,60Hz 1080i 50Hz,60Hz 480i, 480p 60Hz 576i, 576p 50Hz 720p 50Hz,60Hz HDMI1 1080i 50Hz,60Hz HDMI2...

  • Page 23: Supported Video File Formats For Usb Mode

    Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps AVS, MVC .mp4, .mov,...

  • Page 24: Supported Audio File Formats For Usb Mode

    Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3...

  • Page 25: Supported Subtitle File Formats For Usb Mode

    Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3...

  • Page 26: Supported Dvi Resolutions

    Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x400 þ 640x480 þ þ þ...
  • Page 27 Connectivity network wall socket Wired Connectivity To Connect to a Wired Network • You must have a modem/router connected to an active broadband connection. • Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). See “Nero Media Home Installation”...
  • Page 28 Note: If the modem supports N mode, you should set N mode settings. Broadband If the selected network is protected with a password, please enter the correct key by using the virtual connection keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.
  • Page 29 Then press the Source button on the remote and If the wireless network does not function properly, try switch to Wireless Display source. using the wired network in your home. Refer to the Wired Connectivity section for more information on A screen appears stating that the TV is ready for the process.
  • Page 30 This standard allows you to view and play photos, music For best home network streaming with this TV, the Nero software should be installed. and videos stored in the media server connected to your home network. Nero MediaHome Installation 1. Nero Media Home Installation To install Nero MediaHome, please proceed as The Audio Video Sharing feature cannot be used if the follows:...

  • Page 31: Internet Portal

    Internet Portal HINT: A broadband internet connection is required for high quality viewing. You must set the country option accordingly in the First Time Installation for proper operation of the internet portal. Portal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection.
  • Page 32 Internet Browser To use the internet browser, please select the internet browser logo from the portal section. (*)The appearance of the browser logo may change Refresh Home Page Address Bar History Bookmarks Zoom Previous Next Settings Remote control shortcuts Quick Access (Zoom in-out/Back/Home) •...
  • Page 33 Note: Internet connection is required for WEB based EPG Smart Centre informations. Smart Centre is a mobile application running on iOS PORTAL: This tab displays the Portal applications in and Android platforms. With your tablet or phone, scrollable view. Unless FollowMeTV (if available) is you can easily stream your favourite live shows and active, the selected application will be displayed on programmes from your smart TV.

  • Page 34: Dvb-T Functionality Information

    Voice Recognation Bush is not responsible for any of the content or You can tap on the Microphone( ) widget and services and does not warrant the availability of or manage your application, giving voice commands access to such content or services.

  • Page 35: Guarantee

    Guarantee Product Guarantee This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.
  • Page 36 Product fiche Commercial Brand: BUSH Product No. 10100629 Model No. DLED49287FHDCNTD Energy efficiency class Visible screen size 49 inches / 124 cm (diagonal,approx.) (inch/cm) On mode average power 71 W consumption (Watt) Annual energy consumption 103 kWh (kWh/annum) Standby power consumption...
  • Page 37 BUSH DLED49287FHDCNTD 50331668 Standby Power Consumption (approx.) 0,5 W Screen Resolution 1920 x 1080 English - 36 - For any help concerning set up and use of your TV please call the Customer Helpline: 0345 604 0105...

  • Page 38: Important Instructions

    Important Instructions For your own safety read the following instructions carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN &...
  • Page 39 Home Retail Group 489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes MK9 2NW...
