Summary of Contents for SXblue GPS NET20 PRO

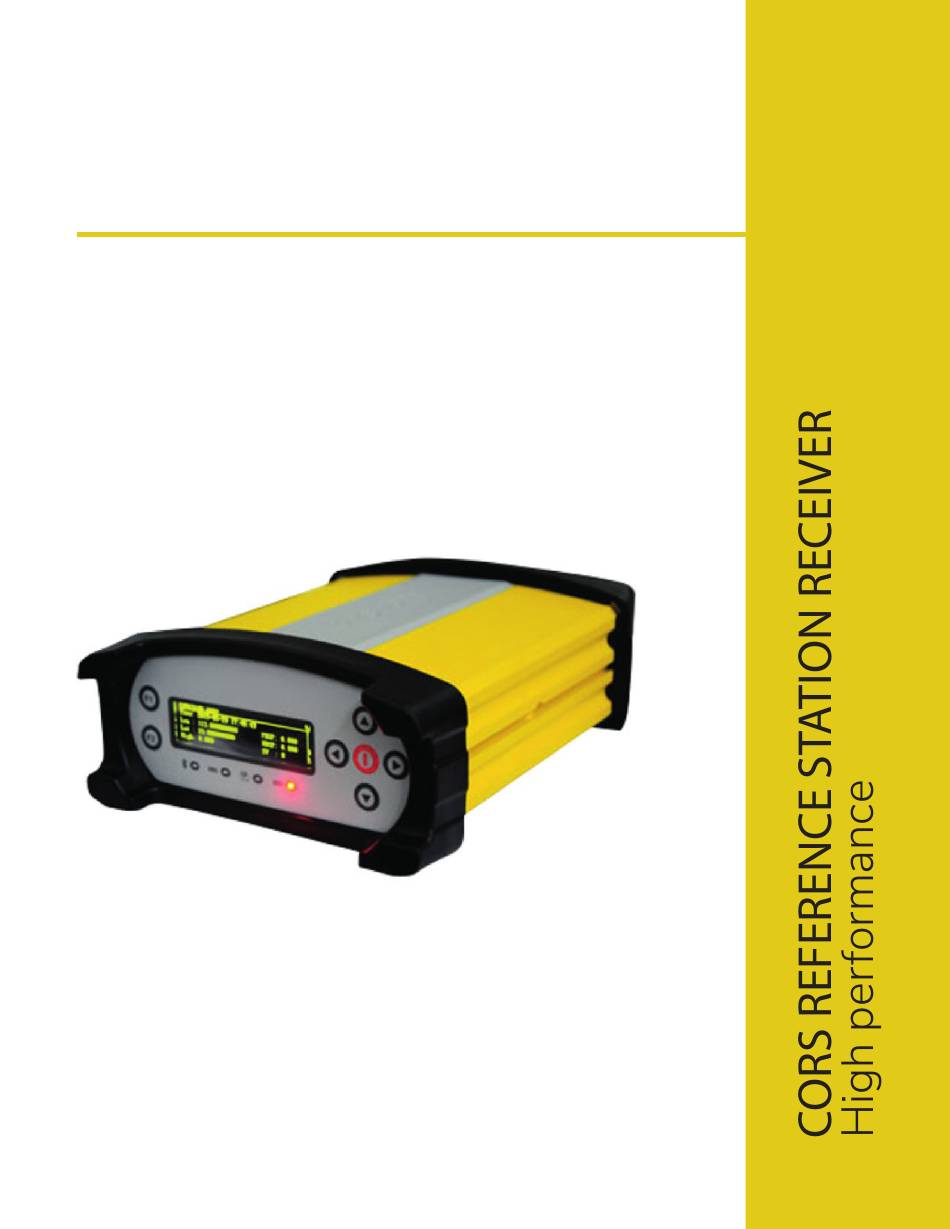

  • Page 1 NET20 PRO User Manual...
  • Page 2 Statement Please read carefully : The final interpretation of this user manual belong to Geneq. This user manual is only for your reference. If your receiver does not match the case in user manual, the actual situation of the receiver shall prevail. Information in this document is subject to change without notice;...

  • Page 3: Table Of Contents

    Content 1 Technical Specification ....................5 1.1 Overview .................................... 5 1.2 Main features ..................................5 1.3 Technical Specification ..............................5 1.3.1 Physical .................................. 5 1.3.2 Environmental ..............................5 1.3.3 Electrical ................................. 5 1.3.4 GNSS ..................................6 1.3.5 Ports ..................................7 1.3.6 Data and Storage ..............................
  • Page 4 3.4 Download ..................................23 3.5 System Management ..............................24 3.6 Help ..................................... 24 4 Operation ......................... 25 4.1 Power on .................................... 25 4.2 Quick setting ..................................26 5 Accessories ........................32...

  • Page 5: Technical Specification

    1 Technical Specification 1.1 Overview NET20 PLUS is a high-precision CORS reference station receiver. LINUX system as its development platform, and it support for secondary development. It has powerful and stable function, and can be used in many fields. 1.2 Main features •...

  • Page 6: Gnss

    1.3.4 GNSS Channels : Tracking signals : • GPS : L1 C/A, L1C, L2C, L2P, L5 • GLONASS : L1 C/A, L2C, L2P, L3, L5 • BeiDou : B1, B2, B3 • Galileo : E1, E5 AltBOC, E5a, E5b, E6 •...

  • Page 7: Ports

    1.3.5 Ports 3 RS232 serial ports(DB9 and 2 LEMO 5pin). 1 RJ45 Ethernet port. 1 power port. 1 USB port. 1 4G LTE antenna port. 1 UHF antenna port.(Optional) 1 EVENT port. 1 1PPS port. 1 SIM card slot. (10) 1 GNSS antenna port.

  • Page 8: Hardware Structure

    2 Hardware Structure 2.1 Receiver appearance Figure 2-1 2.1.1 Front panel The front panel of NET20 PLUS receiver includes seven buttons, four LED indicators, and one OLED display. Figure 2-2 After switching ON NET20 PLUS receiver, current time information, GPS status displayed in the main interface.
  • Page 9 Table 2-1 Function table Name Function Save the current setup and return to the previous menu Enter the main menu Move the cursor up and down, modify parameters when entering modify items Move the cursor left and right Switch on/off the receiver and confirmation key Power key Press once until “Shut Down”...

  • Page 10: Back Panel

    2.1.2 Back panel NET20 PLUS receiver provides a variety of communication interfaces to facilitate users in different application scenarios. Figure 2-3 Back panel Table 2-2 Interface function table Name Function Receiver power supply interface, input voltage DC 9V-28V. USB interface COM1 RS232 serial port COM2...

  • Page 11: Structural Drawings / Mounting Dimensions

    2.2 Structural drawings / mounting dimensions Figure 2-4...

  • Page 12: Web Ui

    3 WEB UI There are two ways to login the WEB interface, which are Ethernet port login and WIFI login. The WEB interface content of the two login modes is same. (1) Ethernet port login : Connect the RJ45 network port with the computer host, and enter the IP on the NET20 PLUS display in the browser for NET20 PLUS access.

  • Page 13: System Information

    3.2 System Information 3.2.1 System Information In the system information screen will display the station name, device model, body number, system version, application version information, built-in OEM board models, and network parameter information. Figure 3-2 3.2.2 GPS Status Status page displays the current NET20 PLUS positioned state, the base station coordinates and antenna type usage.

  • Page 14: Satellites

    3.2.3 Satellites This page shows the satellite signal-to-noise ratio of the current search, elevation mask angle, azimuth and other information. The information of GPS, BEIDOU, Galileo and GLONASS are displayed separately. Figure 3-4 3.2.4 Data Transmission After setting up the data transmission, the user can see the current data transfer status on the page as shown in figure 3-5.

  • Page 15: Data Recording

    3.2.5 Data Recording In this page, the user can see the specific data record information as shown in figure 3-6. Click [Edit], the user could modify the parameters like path type, file name, interval, duration time, etc. As shown in figure 3-7. Figure 3-6 Figure 3-7...

  • Page 16: Configuration

    3.3 Configuration 3.3.1 Reference Station This page mainly sets the reference station, antenna, and reference station parameters, as shown in figure 3-8. Figure 3-8 Reference station coordinates : If you do not need a known coordinate to start reference station, then click the “Load Current Position”...

  • Page 17: Gnss Configuration

    3.3.2 GNSS configuration This page is mainly set for the satellite systems and the cutoff angle, as shown in figure 3-9. Figure 3-9 3.3.3 Tracking satellites In this page, the user can select the satellites they want to track, as shown in figure 3-10. Figure 3-10...

  • Page 18: Network

    3.3.4 Network This page is mainly set for the data link method used by NET20 PLUS, as shown in figure 3-11. DHCP : If the model DHCP is enable, the NET20 PLUS receiver will auto get IP address, otherwise it uses the static IP.

  • Page 19: Ntrip Server

    anonymous access is turned off, you need permission to enter the user name and password. After using the FTP tool to connect NET20 PLUS, the data appears as follows : Figure 3-12 3.3.5 Ntrip Server In this page, the user could set the transmission content and the server for the NET20 PLUS reference station.

  • Page 20: Recording

    Note : The password in this page can be entered arbitrarily, but not empty. When the [Auto Connect] is chose, after the network is disconnected, the data transmission will be automatically connected, otherwise the transmission will need to be initiated artificially. Before setting parameters, please back to the page of reference station and make sure the base station coordinate is correct or not.

  • Page 21: Port Configuration

    Table 3-1 The rule of Static record file name File name Annotation YYYYMMDDhhmmss.dat Date and when, minute and second YYYYMMDDhhmm.dat Date and when, minute DOYhhmm.dat Day of year, hour and minute YYYYDOY?.dat Year, day of year, period of time ssssdddf.yyt Station name, day of year, period of time Rinex302.dat Named by rinex3.02 standard...

  • Page 22: Alerts

    Figure 3-15 3.3.8 Alerts When NET20 PLUS system or program exception occurs, NET20 PLUS will use e-mail or cell phone text message to notify manager in time for maintenance. Figure 3-16...

  • Page 23: Registration

    3.3.9 Registration When NET20 PLUS receiver expires, you need to register it. And you just need to input the registration code and click Submit, then instrument register will be completed. Figure 3-17 3.4 Download Download data stored in the NET20 PLUS receiver by the way of the network connection. Alternatively, you can connect to NET20 PLUS receiver for copying data via USB cable.

  • Page 24: System Management

    3.5 System Management The users can upgrade online, view logs, secure login, and recycle storage. Note : 1. Log view part are abnormal operation of storage systems and procedures of a record; 2. When setting the security login, the admin account is the manage account and the guest account can only view the information.

  • Page 25: Operation

    4 Operation 4.1 Power on Press the red power button on the panel, and until the initialization is completed, you can see the main menu display on OLED screen as shown in figure 4-1. Figure 4-1 Press left or right soft key to view the current IP information of Ethernet, WIFI, and GPRS. Figure 4-2...

  • Page 26: Quick Setting

    Figure 4-3 Figure 4-4 4.2 Quick setting You can quick set the receiver by the panel key. It includes six parts : start record, transmit the data, network set, antenna set, other set, and device information. Start Record : In the main interface, lightly press F2 key shown in figure 4-5. Figure 4-5...
  • Page 27 Lightly press power key to confirm, then enter into “Start Record”, you can see the page shown in figure 4-6. Figure 4-6 When the static is stopped, the cursor stops at the row of “Start Record” Transmit Data : When you transmit data by the panel, first you need to set the transmission parameters in the WEB UI page, then you can operate the panel.
  • Page 28 Figure 4-8 Network Settings : NET20 PLUS network settings can be set to automatically obtain the IP or choose a static IP mode. Figure 4-9 Figure 4-10...
  • Page 29 Figure 4-11 Figure 4-12 Antenna settings : Not support for the moment. Figure 4-13...
  • Page 30 Figure 4-14 Other settings : Other settings could set the OLED language display, OLED brightness, OLED turned off interval. Figure 4-15 Figure 4-16 Device information : In this page, you can get the information of device model, device serial, hardware version and BOOT version.
  • Page 31 Figure 4-17 Figure 4-18 Figure 4-19...

  • Page 32: Accessories

    5 Accessories Table 5-1 Accessories of NET20 PLUS Categories Model Description Quantity Standard accessories HX-CSX601A GNSS survey antenna Antenna Geo10-35-01 Cable for survey antenna (35 m) Cable PSAA30R-150-2P Power Adaptor with 4 plugs (US, Adaptor UK, AU and EU), 15V/2A, 2PIN TC.GK428.ABL Lemo 7 to USB Cable...
  • Page 36 NET20 PRO December 2018...
