SXblue GPS NET20 PRO User Manual

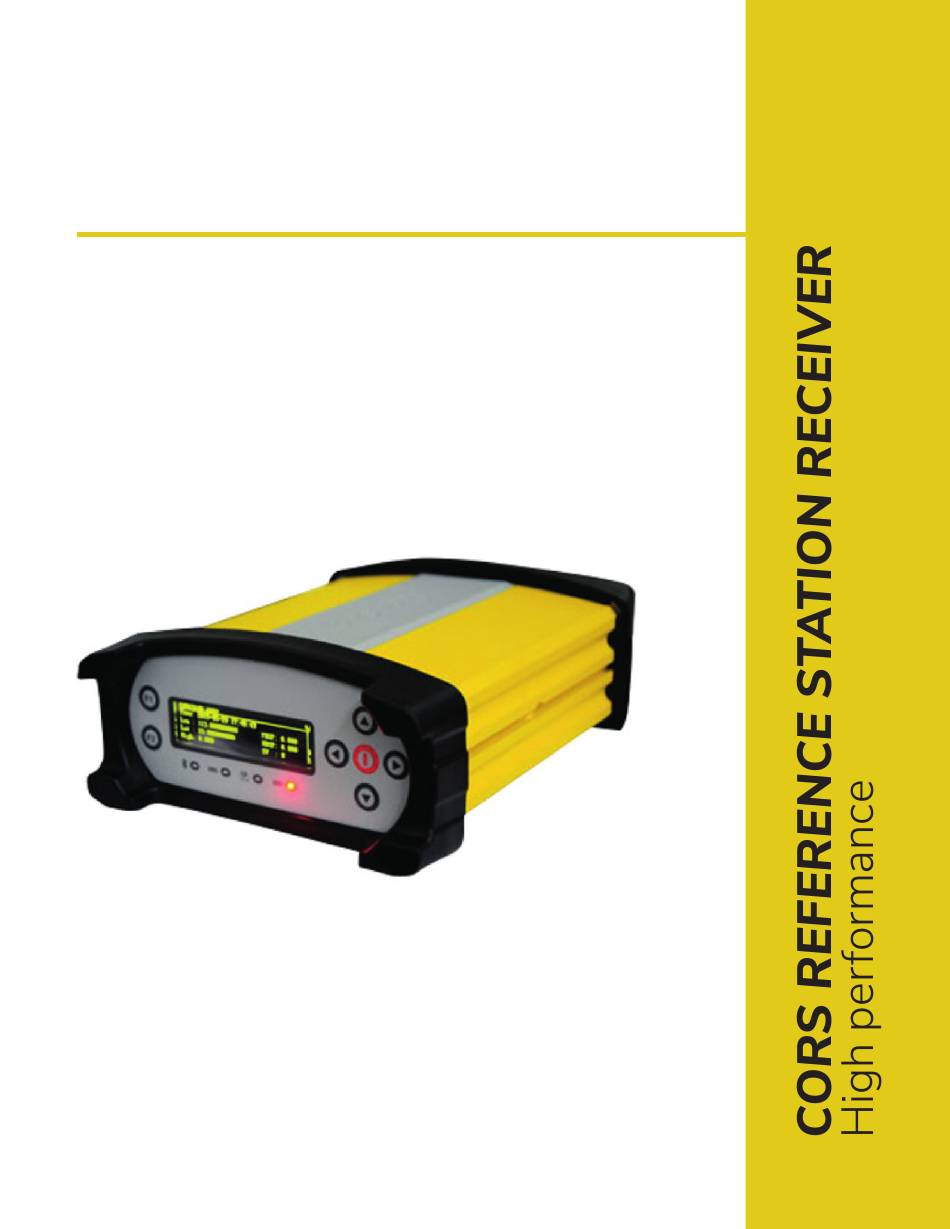

Cors reference station receiver high performance
Hide thumbs Also See for NET20 PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
NET20 PRO
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NET20 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for SXblue GPS NET20 PRO

Summary of Contents for SXblue GPS NET20 PRO

  • Page 1 NET20 PRO User Manual...

  • Page 2: Table Of Contents

    Content 1 Technical Specification .................... 5 1.1 Overview .................................... 5 1.2 Main features ..................................5 Statement 1.3 Technical Specification ..............................5 1.3.1 Physical .................................. 5 1.3.2 Environmental ..............................5 1.3.3 Electrical ................................. 5 Please read carefully : 1.3.4 GNSS ..................................6 1.3.5 Ports ..................................

  • Page 3: Technical Specification

    1 Technical Specification 3.4 Download ..................................23 3.5 System Management ..............................24 1.1 Overview 3.6 Help ..................................... 24 NET20 PLUS is a high-precision CORS reference station receiver. LINUX system as its development 4 Operation ........................25 platform, and it support for secondary development. It has powerful and stable function, and can be 4.1 Power on ....................................

  • Page 4: Gnss

    1.3.5 Ports 1.3.4 GNSS 3 RS232 serial ports(DB9 and 2 LEMO 5pin). Channels : 1 RJ45 Ethernet port. Tracking signals : 1 power port. • GPS : L1 C/A, L1C, L2C, L2P, L5 1 USB port. • GLONASS : L1 C/A, L2C, L2P, L3, L5 1 4G LTE antenna port.

  • Page 5: Hardware Structure

    2 Hardware Structure Table 2-1 Function table 2.1 Receiver appearance Name Function Save the current setup and return to the previous menu Enter the main menu Move the cursor up and down, modify parameters when entering modify items Move the cursor left and right Figure 2-1 2.1.1 Front panel The front panel of NET20 PLUS receiver includes seven buttons, four LED indicators, and one OLED...

  • Page 6: Structural Drawings / Mounting Dimensions

    2.2 Structural drawings / mounting dimensions 2.1.2 Back panel NET20 PLUS receiver provides a variety of communication interfaces to facilitate users in different application scenarios. Figure 2-3 Back panel Table 2-2 Interface function table Name Function Receiver power supply interface, input voltage DC 9V-28V. USB interface COM1 RS232 serial port...

  • Page 7: Web Ui

    3 WEB UI 3.2 System Information 3.2.1 System Information There are two ways to login the WEB interface, which are Ethernet port login and WIFI login. The WEB interface content of the two login modes is same. In the system information screen will display the station name, device model, body number, system version, application version information, built-in OEM board models, and network parameter (1) Ethernet port login : Connect the RJ45 network port with the computer host, and enter the IP on information.

  • Page 8: Satellites

    3.2.5 Data Recording 3.2.3 Satellites In this page, the user can see the specifi c data record information as shown in fi gure 3-6. Click [Edit], This page shows the satellite signal-to-noise ratio of the current search, elevation mask angle, the user could modify the parameters like path type, fi le name, interval, duration time, etc.

  • Page 9: Configuration

    3.3 Configuration 3.3.2 GNSS configuration 3.3.1 Reference Station This page is mainly set for the satellite systems and the cutoff angle, as shown in fi gure 3-9. This page mainly sets the reference station, antenna, and reference station parameters, as shown in fi gure 3-8.

  • Page 10: Network

    3.3.4 Network If anonymous access is turned off, you need permission to enter the user name and password. After using the FTP tool to connect NET20 PLUS, the data appears as follows : This page is mainly set for the data link method used by NET20 PLUS, as shown in fi gure 3-11. DHCP : If the model DHCP is enable, the NET20 PLUS receiver will auto get IP address, otherwise it uses the static IP.

  • Page 11: Recording

    Note : Table 3-1 The rule of Static record fi le name The password in this page can be entered arbitrarily, but not empty. File name Annotation YYYYMMDDhhmmss.dat Date and when, minute and second When the [Auto Connect] is chose, after the network is disconnected, the data transmission will be automatically connected, otherwise the transmission will need to be initiated artifi cially.

  • Page 12: Alerts

    3.3.9 Registration When NET20 PLUS receiver expires, you need to register it. And you just need to input the registration code and click Submit, then instrument register will be completed. Figure 3-17 Figure 3-15 3.4 Download 3.3.8 Alerts Download data stored in the NET20 PLUS receiver by the way of the network connection. Alternatively, When NET20 PLUS system or program exception occurs, NET20 PLUS will use e-mail or cell phone you can connect to NET20 PLUS receiver for copying data via USB cable.
  • Page 13 4 Operation 3.5 System Management The users can upgrade online, view logs, secure login, and recycle storage. 4.1 Power on Note : Press the red power button on the panel, and until the initialization is completed, you can see the 1. Log view part are abnormal operation of storage systems and procedures of a record; main menu display on OLED screen as shown in fi gure 4-1.
  • Page 14 Lightly press power key to confi rm, then enter into “Start Record”, you can see the page shown in fi gure 4-6. Figure 4-3 Figure 4-4 Figure 4-6 When the static is stopped, the cursor stops at the row of “Start Record” Transmit Data : When you transmit data by the panel, fi rst you need to set the transmission parameters in the WEB UI page, then you can operate the panel.
  • Page 15 Figure 4-11 Figure 4-8 Network Settings : NET20 PLUS network settings can be set to automatically obtain the IP or choose a static IP mode. Figure 4-12 Antenna settings : Not support for the moment. Figure 4-9 Figure 4-13 Figure 4-10...
  • Page 16 Figure 4-14 Figure 4-17 Other settings : Other settings could set the OLED language display, OLED brightness, OLED turned off interval. Figure 4-18 Figure 4-15 Figure 4-16 Figure 4-19 Device information : In this page, you can get the information of device model, device serial, hardware version and BOOT version.
  • Page 17 5 Accessories Table 5-1 Accessories of NET20 PLUS Categories Model Description Quantity Standard accessories HX-CSX601A GNSS survey antenna Antenna Geo10-35-01 Cable for survey antenna (35 m) Cable PSAA30R-150-2P Power Adaptor with 4 plugs (US, Adaptor UK, AU and EU), 15V/2A, 2PIN TC.GK428.ABL Lemo 7 to USB Cable...
  • Page 19 NET20 PRO December 2018...
