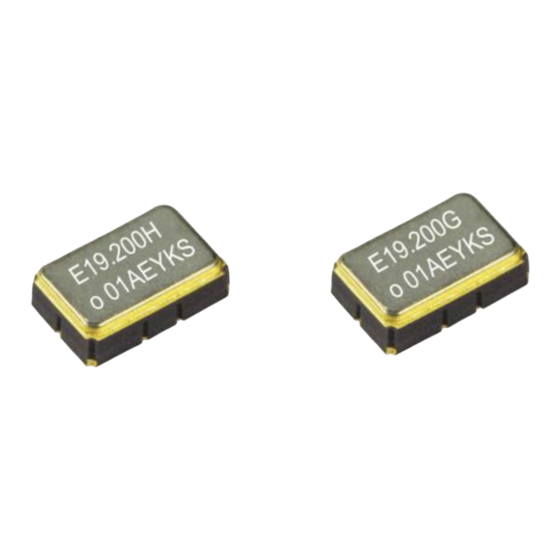

Temperature Compensated Crystal Oscillator (TCXO)
· Package size (5.0 mm × 3.2 mm × 1.45 mm)
· Ultra high stability TCXO
· Output waveform : CMOS
· Reference weight Typ.72 mg
[ 1 ] Product Number / Product Name / External dimendions
(1-1) Product Number / Ordering Code
X1G0052310027xx
last 2 digits code(xx) define Quantity.
The standard is "00", 1 000 pcs/Reel.
(1-2) Product Name / Model Name
TG5032CGN
[ 2 ] Operating range
Parameter
Supply voltage
Operating temperature range
Output load
[ 3 ] Frequency characteristics
Parameter
Output Frequency
Frequency tolerance *1
Frequency / temperature
characteristics
Frequency / load coefficient
Frequency / voltage coefficient
Frequency aging
Holdover stability,
constant temperature
Holdover stability,
constant temperature
Holdover stability
(Free-run accuracy)
*1 Include initial frequency tolerance and frequency deviation after reflow cycles.
*2 Measured in the elapse of 24 hours after reflow soldering.
*3 This includes initial frequency tolerance, frequency / temperature characteristics, frequency / load coefficient, frequency/voltage
coefficient and frequency aging (+25 °C, 20 years) .
[ 4 ] Electrical characteristics
Parameter
Current consumption
High level output voltage
Low level output voltage
Rise time
Fall time
Symmetry
[ For other general specifications, please refer to the attached Full Data Sheet below ]
40.000000 MHz CAGHNA
Specifications
Symbol
Min.
V
3.135
CC
GND
0
T_use
-40
Load_C
13.5
Specifications
Symbol
Min.
fo
-
f_tol
-1.0
fo-Tc
-0.1
fo-Load
-0.1
fo-V
-0.1
CC
-0.5
f_age
-3.0
-
-0.01
-0.04
-
-
-4.6
Specifications
Symbol
Min.
I
-
CC
Voʜ
90 % Vcc
Voʟ
-
tr
-
tf
-
SYM
45
1/22 Page
Unit
Typ.
Max.
3.3
3.465
V
-
0
V
-
+85
°C
15
16.5
pF
(Vcc = 3.3 V, GND = 0.0 V, Load = 15 pF, T_use = +25 °C)
Unit
Typ.
Max.
40
-
MHz
-
+1.0
x10⁻⁶
-
+0.1
x10⁻⁶
-
+0.1
x10⁻⁶
-
+0.1
x10⁻⁶
-
+0.5
x10⁻⁶
-
+3.0
x10⁻⁶
-
+0.01
x10⁻⁶
-
+0.04
x10⁻⁶
-
+4.6
x10⁻⁶
(Vcc = 3.3 V, GND = 0.0 V, Load = 15 pF, T_use = +25 °C)
Unit
Typ.
Max.
-
6.0
mA
-
-
V
-
10 % Vcc
V
-
8.0
ns
-
8.0
ns
-
55
%
Conditions
-
-
-
-
Conditions
-
T_use = +25 °C ±2 °C
After 2 reflows *2
T_use = -40 °C to +85 °C
(Reference to (fmax+fmin)/2)
Load ±10 %
Vcc ±5 %
T_use = +25 °C first year
T_use = +25 °C 20 years
T_use = +25 °C, 24 hours
(after 10 days of continuous
operation)
T_use = +25 °C, 24 hours
(after 48 hours of continuous
operation)
*3
Conditions
Vcc = 3.3 V
-
-
10 % Vcc to 90 % Vcc level
90 % Vcc to 10 % Vcc level
50 % Vcc Level
No.: TG5032CGN ver1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1G0052310027 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Seiko Epson X1G0052310027 Series

  • Page 1 Temperature Compensated Crystal Oscillator (TCXO) · Package size (5.0 mm × 3.2 mm × 1.45 mm) · Ultra high stability TCXO · Output waveform : CMOS · Reference weight Typ.72 mg [ 1 ] Product Number / Product Name / External dimendions (1-1) Product Number / Ordering Code X1G0052310027xx last 2 digits code(xx) define Quantity.
  • Page 2 Ultra high stability temperature compensated crystal oscillator Product name : TG5032CGN / TG5032SGN Features ⚫ Ultra high stability (< 0.1 x 10 ⚫ Low phase noise ⚫ Frequency range : 10 MHz to 40 MHz ⚫ Output : CMOS, Clipped sine wave ⚫...
  • Page 3 1. Product Number / Product Name (1-1) Product Number / Ordering Code TG5032CGN: X1G005231xxxx00 (Please contact Epson for details of number xxxx) TG5032SGN: X1G005241xxxx00 (The last 2 digits code (00) define Quantity. 1 000 pcs/Reel) (1-2) Product Name / Model Name (Standard form) T G 5 0 3 2 C G N 10.000000MHz C A G H D A ①...
  • Page 4: Operating Conditions

    2. Electrical characteristics 1) Absolute maximum ratings Parameter Symbol Unit Min. Typ. Notes Supply voltage -GND -0.5 +4.0 C Storage temperature T_stg Store as bare product after packing Frequency control voltage -GND -0.5 +0.5 Terminal 2) Operating conditions Parameter Symbol Unit Min.
  • Page 5: Electrical Characteristics

    3-2) Frequency control characteristics = Typ., GND = 0.0 V, Vc = Typ. V, Load = Typ., T_use = +25 °C) Parameter Symbol Unit Min. Typ. Notes -10.0 -5.0 Frequency control range f_cont Vc = 1.5 V±1.0 V, Vc = 1.65 V±1.0 V ×...
  • Page 6 3. Characteristics 3-1) “Frequency / Temperature Characteristics” 3-1-1) Standard spec : ±0.1 × 10 Max. (T_use = -40 °C to +85 °C) 19.2 MHz [N = 40 pcs] Temperature [°C] Temperature [°C] 30.72 MHz [N = 40 pcs] Temperature [°C] Temperature [°C] 40 MHz [N = 40 pcs] Temperature [°C]...
  • Page 7 3-2) Frequency Aging (40 MHz) [N = 5 pcs] * Aging is estimated from environmental reliability tests and the expected amount of frequency variation over time. It is not intended as a guarantee of performance over the product-life cycle 3-3) Holdover Stability (19.2 MHz) [N = 40 pcs] 3-4) Frequency Control Characteristics [N = 40 pcs] No.: TG5032xGN_AE_Ver.
  • Page 8 3-5) Current Consumption 3-6) Rise time / Fall time (at CMOS output) 3-7) Output voltage [V ] (at CMOS output) 3-8) Symmetry (at CMOS output) 3-9) Output level [V ] (at Clipped sine wave) No.: TG5032xGN_AE_Ver. 1.07 8/22 Page...
  • Page 9 3-10) Start up time (19.2 MHz, 40 MHz) 19.2 MHz 40 MHz No.: TG5032xGN_AE_Ver. 1.07 9/22 Page...
  • Page 10 3-11) Phase noise (10 MHz, 19.2 MHz, 20 MHz) [N = 25 pcs] 10 MHz 19.2 MHz 20 MHz No.: TG5032xGN_AE_Ver. 1.07 10/22 Page...
  • Page 11 3-11) Phase noise (25 MHz, 30.72 MHz, 40 MHz) [n = 25 pcs] 25 MHz 30.72 MHz 40 MHz No.: TG5032xGN_AE_Ver. 1.07 11/22 Page...
  • Page 12 3-12) Short term stability [ADEV] (19.2 MHz) TCXO mode 3-13) TDEV (19.2 MHz, Loop BW = 0.1 Hz) Constant temperature : +25 °C Constant temperature : +70 °C 3-14) MTIE (19.2 MHz, Loop BW = 0.1 Hz) Constant temperature : +25 °C Constant temperature : +70 °C Compliant with G.813 option1 and 2 No.: TG5032xGN_AE_Ver.
  • Page 13 4. Outline 4-1) Outline dimensions and Pin information TG5032CGN / SGN Connections VC-TCXO TCXO N.C. N.C. Unit: mm N.C. N.C. N.C. N.C. OE pin = "H" or "open": Specified frequency output. OE pin = "L" : Output is high impedance. Do not connect “N.C.”...
  • Page 14: Timing Chart

    5. Timing chart 5-1-1) Output waveform (CMOS output) 90 % V 50 % V 10 % V SYM=tw/t×100 % 5-1-2) Output waveform (Clipped sine wave output) SYM=tw/t×100 % 5-2) OE function and timing OE input level Oscillation Outputs “H” or “Open” Enable Enable : specified frequency “L”...
  • Page 15 6. Test circuit 6-1) CMOS output for TCXO 1) Output Load : 15 pF Test Point N.C. Supply By-pass Load_C Voltage Capacitor 15 pF  2) Current consumption N.C. Supply By-pass Load_C Voltage Capacitor 15 pF  3) Conditions Min. 1 MΩ 1.
  • Page 16 6-2) CMOS output for VC-TCXO 1) Output Load : 15 pF Test Point Supply By-pass Load_C Voltage Capacitor 15 pF Control  Voltage 2) Current consumption Supply By-pass Load_C Voltage Capacitor 15 pF Control  Voltage 3) Conditions Min. 1 MΩ 1.
  • Page 17 6-3) Clipped sine wave output for TCXO 1) Output Load : 10 kΩ // 10 pF DC-cut Capacitor  0.01 Test Point N.C. By-pass Capacitor Load_R Load_C Supply 10 pF 10 kΩ Voltage  2) Current consumption DC-cut Capacitor  0.01 N.C.
  • Page 18 6-4) Clipped sine wave output for VC-TCXO 1) Output Load : 10 kΩ // 10 pF DC-cut Capacitor  0.01 Test Point Supply By-pass Voltage Capacitor Load_R Load_C 10 kΩ 10 pF  Control Voltage 2) Current consumption DC-cut Capacitor ...
  • Page 19: Packing Information

    7. Reflow profile (follow to IPC / JEDEC J-STD-020D.1) Temperature [ C ] ; +260 C +255 C ; 20 s to 40 s Avg. Ramp-up ; +217 C 3 C / s Max. Ramp-down Ts max ; +200 C 60 s to 150 s 6 C / s Max.
  • Page 20 9. Moisture Sensitivity Level, Electro-Static Discharge (9-1) Moisture Sensitivity Level (MSL) Parameter Specifications Conditions LEVEL1 JEDEC J-STD-020D (9-2) Electro-Static Discharge (ESD) Parameter Specifications Conditions EIAJ ED-4701-1 C111A, 100 pF, 1.5 kΩ, 3 times Human Body Model (HBM) 2 000 V Min EIAJ ED-4701-1 C111, 200 pF, 0 Ω, 1 time Machine Model (MM) 200 V Min...
  • Page 21: Handling Precautions

    10. Handling precautions Prior to using this product, please carefully read the section entitled “Precautions” on our Web site https://www5.epsondevice.com/en/information/#precaution ) for instructions on how to handle and use the product properly to ensure optimal performance of the product in your equipment. Before using the product under any conditions other than those specified therein, please consult with us to verify and confirm that the performance of the product will not be negatively affected by use under such conditions.
  • Page 22 1. The content of this document is subject to change without notice. Before purchasing or using Epson products, please contact with sales representative of Seiko Epson Corporation (“Epson”) for the latest information and be always sure to check the latest information published on Epson’s official web sites and resources.
