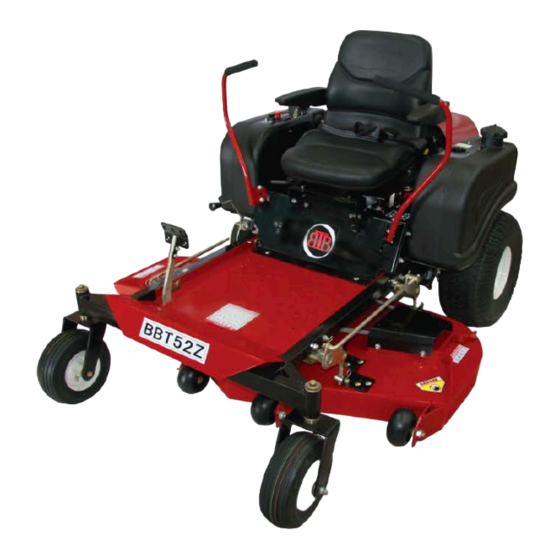

Zero turn steer ride on mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Apache 52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bigger Boyz Toyz Apache 52

Summary of Contents for Bigger Boyz Toyz Apache 52

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........................2 Step 1: Unboxing........................ 3 Step 2: Removing all accessories..................4 Step 3: Untying from the cage..................... 5 Step 4: Strapping the mower up..................6 Step 5: Lifting the mower up....................7 Step 6: Getting rid of the cage.....................8 Step 7: Installing the seat....................

  • Page 3: Step 1: Unboxing

    Step 1: Unboxing Cut and remove all plastic away from the Zero Turn (or as much as you can) to expose the base of the mower. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 4: Step 2: Removing All Accessories

    Step 2: Remove all accessories · Roll cage (3pcs) · Side Chute + Side Chute Cover · Mulching blades · Seat · Control Lever Handles (2pcs) · Manual w/ Keys and spare fuse Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 5: Step 3: Untying From The Cage

    Step 3: Untying from the cage Go around the mower and remove all wires holding the zero turn to its cage (you may need to use bolt cutters or a good pair of wire cutters). Be sure to do a second walk around to ensure all wires are cut or the zero turn will stay attached to the cage.

  • Page 6: Step 4: Strapping The Mower Up

    Step 4: Strapping the mower up Using appropriate lifting slings of the same length attach to each corner of the zero turn ensuring knots are tight and wont slip. Attach the slings diagonally across the mower to ensure the lifting point is centered with the weight. (the best way to do this is feed the strap through itself on one side and use an appropriate D shackle on the other side) Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 7: Step 5: Lifting The Mower Up

    Step 5: Lifting the mower out When lifting the zero turn out you need to be sure what you are using is capable, as the dry weight of the mower is 450kg. When using a forklift make sure your tynes are together and tilted all the way back preventing the straps from slipping off.

  • Page 8: Step 6: Getting Rid Of The Cage

    Step 6: Getting rid of the cage Once the zero turn has been lifted off the cage you should be able to pull the cage out of the way and safely place the zero turn on its wheels. Before disposing of the cage give it a check over as extras like the roll bar may be attached to it.

  • Page 9: Step 7: Installing The Seat

    Step 7: Installing the seat Place the seat aligned with the front seat brackets and the safety bolt on the back of the seat. Remove the butterfly nut from the safety bolt before installing the seat. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 10: Step 8: Plug The Sear Sensor

    Step 8: Plug the seat sensor Step 9: Connect the battery terminal. Positive - Red / Negative - Black Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 11: Step 10: Check Engine Oil Level

    Step 10: Check the engine oil level The engine comes with the oil. Please double-check it. Step 11: Grease the grease nipples (7 points) Control levers grease nipples (2) Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...
  • Page 12 Front wheel grease nipples (2) Pivot weldment (deck) grease nipples (2) Hydro Gear weldment grease nipple (1) Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 13: Step 12: Connect The Control Handles

    Step 12: Connect the control handles (2) It must be installed on the bracket outside. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 14: Step 13: Install The Roll Cage

    Step 13: Install the roll cage. Remove the bolts and nuts (2 sets on each side) Loosely assemble the side bar. The brackets on the vertical bar must face rear. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...
  • Page 15 Connect the upper bar on the desire locations (3 possible angles) and tighten the bolts on the side and top bar. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...

  • Page 16: Step 14: Starting The Zero Turn Mower

    Step 14: Starting the Zero Turn Mower. Fuel it up (there are 2 fuel tanks) Check for the hydrogear lever at the back of the mower Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...
  • Page 17 Fasten your seat belt Choke must be full ON Hand brake ON Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...
  • Page 18 Fuel tank switch selected (left or right) Blade switch OFF (down) Key Switch ON Always wear safety gears for your protection. Questions? Call us at 02-4257-4787 or visit us at www.bbta.com.au...
