REPAIR INSTRUCTIONS, PART 1
Cooling Duct Cover and Oil Cooler
Removal
[215 DW, 219 EP]
The oil cooler is attached to the inside of the
cooling duct cover.
COOLING DUCT COVER REMOVAL
147
1. Cooling Duct Cover
2. Oil Cooler
3. Oil Inlet and Outlet Port Seals

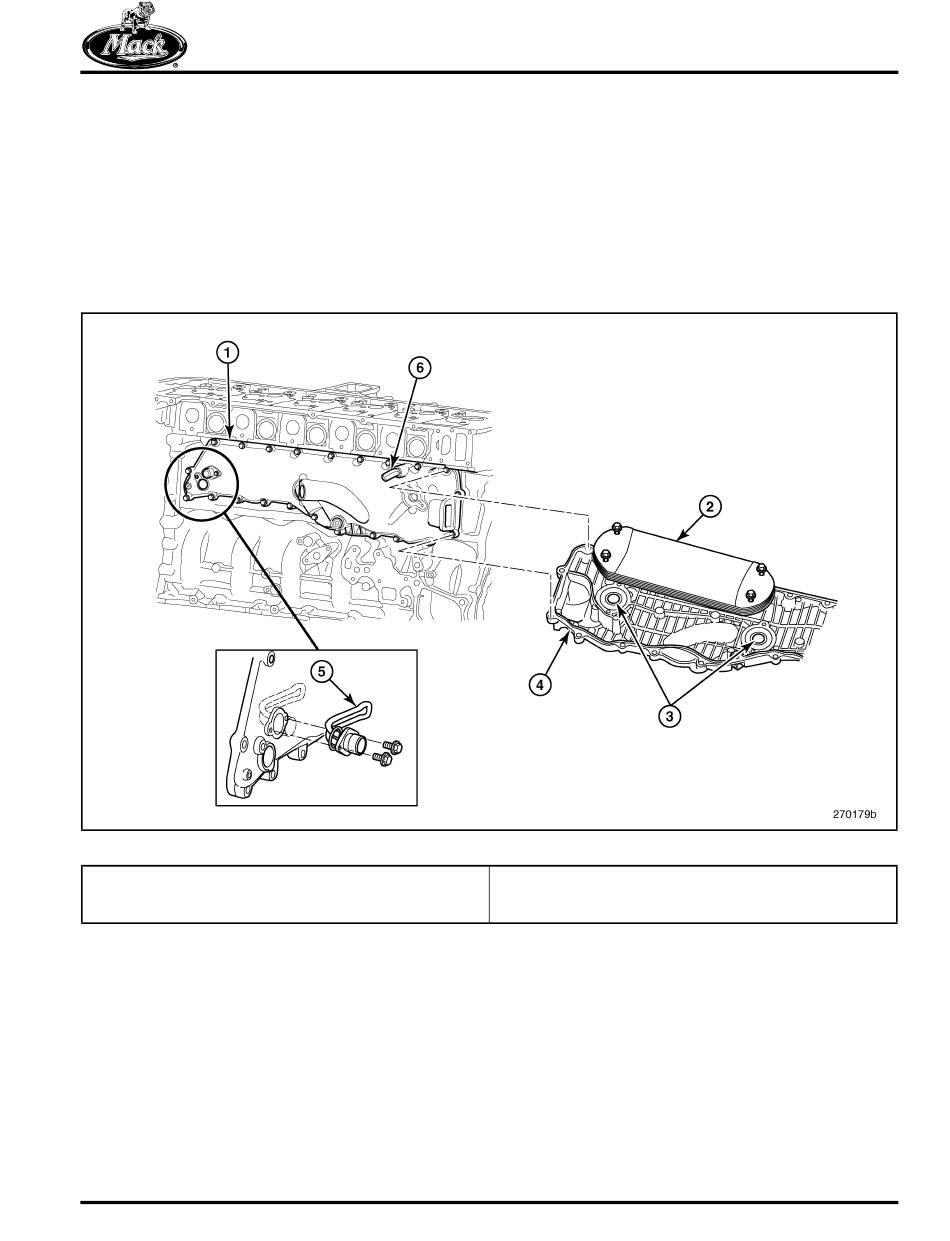

Figure 147 — Cooling Duct Cover, Oil Cooler and Coolant Heater
4. Cover Seal
5. Coolant Heater
6. Fitting, 90° Elbow
Page 129
