BENDIX ADF-T12B Maintenance Manual page 75

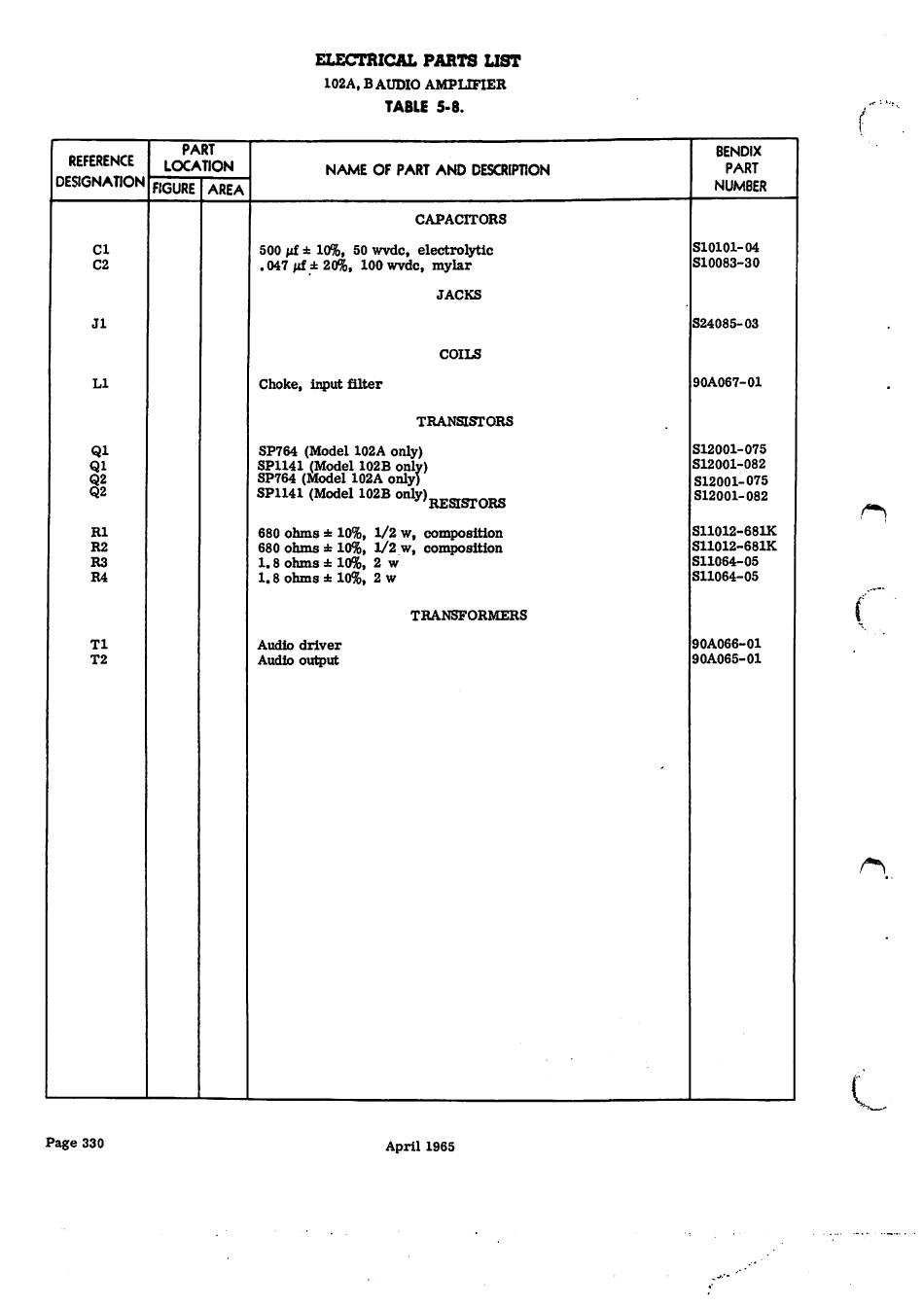

E L E C T R I C A L P A R T S L I S T
1 0 2 A , B A U D I O A M P L I F I E R
T A B L E 5 - 8 .
/ ■
i '
P A R T
L O C A T I O N
B E N D I X
P A R T
NUMBER
REFERENCE
D E S I G N AT I O N
NAME OF PART AND DESCRIPTION
FIGURE
A R E A
C A P A C I T O R S
S l O l O l - 0 4
S 1 0 0 8 3 - 3 0
500 fxf ±10%, 50 wvdc, electrolytic
.047 ni ±20%, 100 wvdc, mylar
C l
C 2
J A C K S
S 2 4 0 8 5 - 0 3 J 1
C O I L S
9 0 A 0 6 7 - 0 1
L I Choke, input filter
T R A N S I S T O R S
S 1 2 0 0 1 - 0 7 5
S 1 2 0 0 1 - 0 8 2
S 1 2 0 0 1 - 0 7 5
S 1 2 0 0 1 - 0 8 2
SP764 (Model 102A only)
SP1141 (Model 102B only)
SP764 (Model 102A only)
SP1141 (Model 102B only)
Q 1
Q1
Q2
Q2
R E S I S T O R S
680 ohms ±10%, 1/2 w, composition
680 ohms ±10%, 1/2 w, composition
1. 8ohms ±10%, 2w
1.8 ohms ±10%, 2w
S 1 1 0 1 2 - 6 8 1 K
S 1 1 0 1 2 - 6 8 1 K
S 1 1 0 6 4 - 0 5
S 1 1 0 6 4 - 0 5
R 1
R 2
R 3
R 4
c
T R A N S F O R M E R S
9 0 A 0 6 6 - 0 1
9 0 A 0 6 5 - 0 1
T 1
A u d i o d r i v e r
A u d i o o u t p u t
T 2
I
Page 330
A p r i l 1 9 6 5
