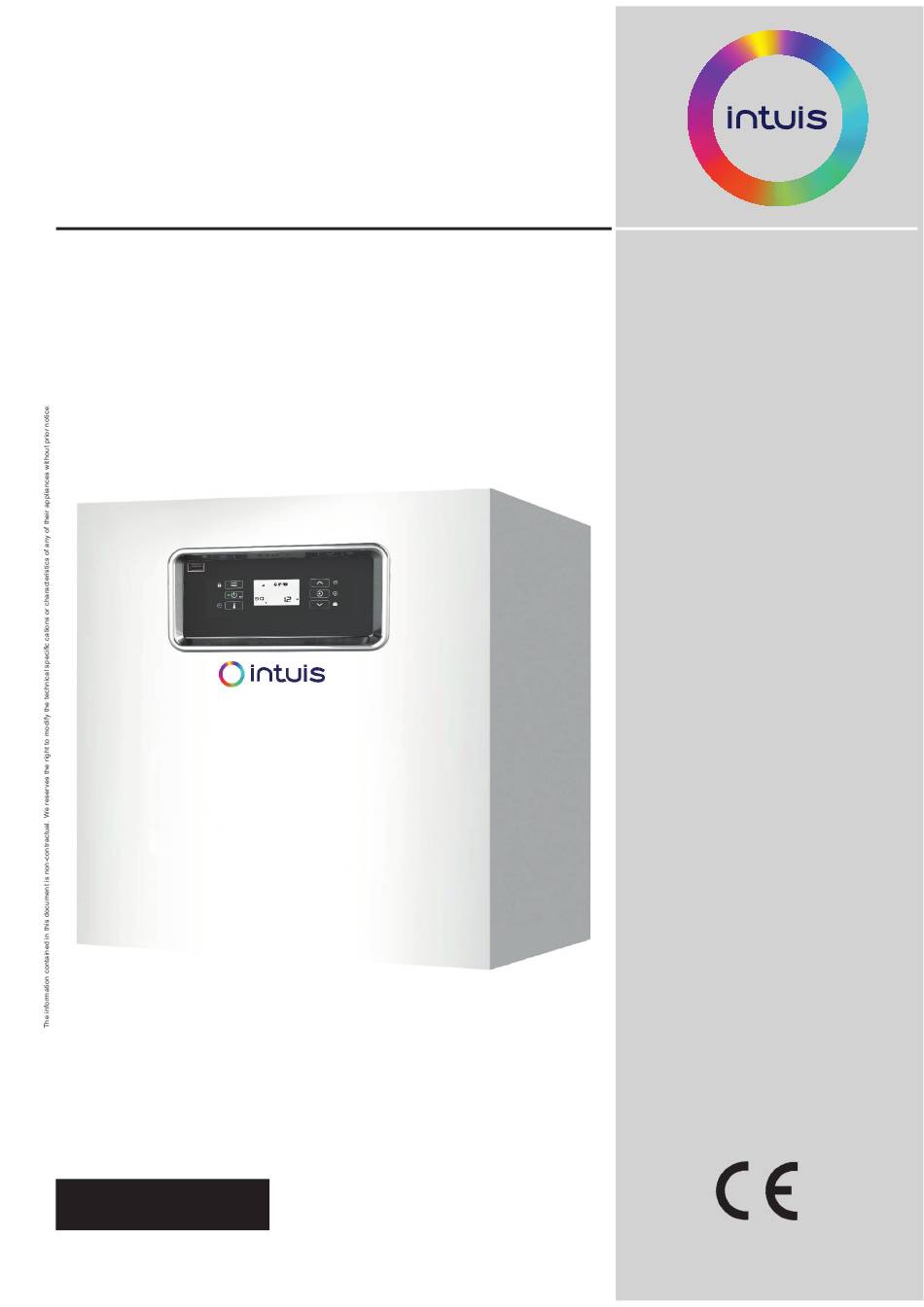

- Page 1 ORIUM Pilot Pilot for HTi heat pumps Technical installation manual Pilote ORIUM For heat pump Réf. 753005 Made in France Manual ref : 1899001 Edition : 23.48...
-
Page 2: Table Of Contents
4.4.2 - Ambient temperature control ................15 8 - SPARE PARTS ..........30 4.4.3 - Exterior sensor ......................16 8.1 - ORIUM Pilot ..................30 4.4.4 - Domestic water sensor ..................16 4.4.5 - Underfl oor safety device of the 65°C safety aquastat (OPT) with manual 8.2 - Hydraulic block ..................31... - Page 3 A5.2 - Menus ..........................43 A5.3 - Actions to be activated using a combination of buttons ......43 A6 - Product technical information sheet ..........44 A6.1 - ORIUM Pilot with HTi 6kW single-phase heat pump .......44 A6.2 - ORIUM Pilot with HTi 8kW single-phase heat pump .......45...
-
Page 4: Safety
The end be kept open outside the building. carrying out work on any of the electrical of this pipe must be placed downwards components. (see § Connecting the pressure relief valve). ORIUM PILOT MANUAL... - Page 5 Make sure that the drain is in the right direction to prevent water from splashing onto the electrical components. Maintenance - Troubleshooting Maintenance and cleaning of the pilot must be carried out at least once a year by a qualifi ed professional. ORIUM PILOT MANUAL...
-
Page 6: Please Read Immediately
IMMEDIATELY Admissible storage and transport temperatures are from -20°C to +60°C. The ORIUM Pilot must be stored and transported horizontally in its This technical installation manual forms part of the appliance which original cardboard packaging and empty of water. it refers to. In order for the warranty to be valid, the instructions must be read prior to using the appliance. -
Page 7: Introduction
7 days of the week using programmable • DHW sensor ranges For the production of domestic hot water The ORIUM Pilot is delivered ready to use in its factory confi guration Ref. 710029 (see «Commissioning»). • Overheating protection thermostat for underfl oor... -
Page 8: Operating Principles
3.5 - Operating principles Cast-iron tub Heat pump circulator 6kW heating element Heating / DHW circulator Electronic circuit board Expansion vessel (5L) ORIUM PILOT MANUAL... -
Page 9: Installation
The ORIUM Pilot must be placed in an area which is free from frost 4.2.1.3 - Desludging tank and adverse weather conditions. -
Page 10: Thermostatic Valves
Be careful not to exceed a pressure of 2.5bar in the installation when degassing. It is forbidden to degas the installation by the safety valves. A solicitation of these safety organs for degassing, can lead to malfunctions during the operation of the appliances. ORIUM PILOT MANUAL... -
Page 11: Connecting The Pressure Relief Valve
WARNING Failure to comply with this requirement concerning the evacuation of overpressure outside the building releases the heat pump manufacturer from any liability in case of incident. ORIUM PILOT MANUAL... -
Page 12: Hydraulic Connections
1 Output to transmitter circuits 1’’ 2 From the heat pump plate exchanger outlet 1’’ 3 To HP plate exchanger inlet 1’’ 4 Return from DHW transmitter circuit 3/4’’ 5 Return from the heating transmitter circuit 3/4’’ 6 Safety valve discharge ORIUM PILOT MANUAL... -
Page 13: Installation Of Control Devices To Balance The Hydraulic
Plan for a circuit breaker dedicated to the power supply of the ORIUM Pilot on the electrical panel. It must be able to completely The installation of control devices (balancing valve, fl ow meter, etc.) is mandatory on the hydraulic circuit of each heat pump and... -
Page 14: Power Supply Connection
Do not apply power without fi rst checking The phase must be connected to terminal that connectors X2 and X3 ARE NOT fi tted P3 and not to terminal P1 or P2. with phase distribution bridges. ORIUM PILOT MANUAL... -
Page 15: Connection To The Heat Pump And To The Accessories For
* Allows the Thorix to be shut down during DHW production. Set parameter P204 to 1 on the Thorix to activate the function. ORIUM PILOT MANUAL... -
Page 16: Exterior Sensor
- If using an ambient thermostat, ensure that it is actually being used. EXCLUSIVELY connect the water sensor Once all of these checks have been done, turn on the heat pump and ORIUM Pilot. (Ref. 710029). If DHW is produced by a domestic hot water tank: 5.2 - Check watertightness •... -
Page 17: Starting Set-Up
Activate the backfl ow prevention device or the fi lling valve to raise When the ORIUM Pilot is turned on for the fi rst time, it will ask you the pressure. The purging cycle will resume automatically once there to confi rm the language of use (French, English, German, Italian, is suffi cient pressure. -
Page 18: Settings And Functions
Installer menu 9 character message Current comfort mode Programming Comfort mode Eco mode active Frost protection Holiday mode mode Day of the week: (1= Monday; 2= Tuesday...) Display zone: temperatures, pressure, settings, time... ORIUM PILOT MANUAL... -
Page 19: Menus
(Return to factory settings) press for 5s - OUTS.TMIN : Outside temperature on the coldest day - MODE : Choice of ORIUM Pilot operation : HP only operation HP+B ACKUP : Operation with the heat pump and authorised back-up BACK up... -
Page 20: List Of Parameters Which Can Be Set
1: controlled by ambient temperature control 2: controlled by ambient temperature control with Heating circulation is controlled by the ambient temperature P234 control set temperature for no heating request – «anti-cold radiators» function (requires ambient temperature sensor) ORIUM PILOT MANUAL... - Page 21 Domestic water request diff erential: loss of heat from the domestic P281 2 to 15 hot water tank compared to the set temperature to start a new °K heating cycle. P282 à p288 Not concerned Do not change the setting ORIUM PILOT MANUAL...
-
Page 22: Description Of Functionalities
(P234 = 2). TCMI 6.5.1.4 - Ambient temperature reactivity The reactivity function allows the ORIUM Pilot to increase its set temperature for heating when the temperature read by the ambient temperature sensor is far from the set temperature. °C... -
Page 23: Automatic Summer/Winter Changeover
With the automatic summer/winter changeover function activated, the ORIUM Pilot decides when to enact the changeover from one season to another, independently from the choice made by the user 6.5.4.2 - Anti-legionellosis protection via the on/off button. -
Page 24: Maintenance
Pump The data specifi c to each heat pump is accessible in the 1) Get the USB stick that comes with the ORIUM Pilot. sub-menus : 2) Insert the key into the USB port (on the front). -
Page 25: Water Sensors
7.2.5 - Consulting the counters 7.2.6.1 - Circulator pump To consult the ORIUM Pilot and heat pump counters, enter the Expert menu by pressing simultaneously on Activate the forced operation of the circulator pump to check that , and circulation is working properly. -
Page 26: Errors Indicated By The Pilot
USB fi le from pilot if default repeats. - The set temperature for heating during warmer months is too CP1 ovrht. Multiple overheating on high; Heat pump stopped Manual compressor 1 - Problem with refrigerant fl uid load. ORIUM PILOT MANUAL... - Page 27 The messages signalled by «DIAG» are informative and do not interrupt the operating of the ORIUM Pilot. This information comes from the analysis of the operating history of the ORIUM Pilot and is designed to assist you in the maintenance of your installation.
- Page 28 - Clean the plate heat exchanger input; - Problem with refrigerant fl uid load; - Cause could be a default on compressor check valve or on 4-ways valve. Maintenance on fl uid circuit must be done by a qualifi ed engineer. ORIUM PILOT MANUAL...
- Page 29 Carry out the same checks as for the T-PILOTE Back-up stopped Manual outlet DIAG alert above. Defect of incorrect connection of the temperature sensor at the Automatic after T-return TePAC defect Heat pump stopped heat pump inlet (TwIN) repair ORIUM PILOT MANUAL...
-
Page 30: Spare Parts
8 - SPARE PARTS 8.1 - ORIUM Pilot Note : Availability of spare parts : Spare parts which belong our products are available during 10 years, from the end of the mass production, except from an event beyond our control. -
Page 31: Hydraulic Block
B1244819 C14 > C11 power supply wiring visible 8.2 - Hydraulic block Rep. Ref. Description B1244739 Hydraulic bloc B1944638 3-way valve body B1244393 Circulator pump B1939259 Automatic air bleed body B1239094 3 bar pressure relief valve B1939256 Pressure sensor ORIUM PILOT MANUAL... - Page 32 ORIUM PILOT MANUAL...
-
Page 33: Warranty
• Any other damage which is not due to defects in the product. The warranty does not cover faults or defects resulting from: The ORIUM Pilot is not guaranteed against: • Installation of accessories which do not comply with our recommendations. -
Page 34: Appendices
APPENDICES A1 - Technical specifi cations A1.1 - General characteristics A1.2 - Dimensions ORIUM Pilot Power supply cable cross-section* 3 G 6mm² 5 G 2,5mm² 16A C-curve tetra- Circuit breaker 32A C-curve polar Electrical supply 230V single-phase 400V three-phase Volume tampon... -
Page 35: A2 - Hydraulic Connections Between The Pilot And The Heat Pumps
(the equivalent of 70m linear of loss of load) If distance between HP and Pilot > 35m and < 50m 26/34 (1’’) 25/28 26/32 26/32 26/34 (1’’) 25/28 26/32 26/32 (the equivalent of 100m linear of loss of load) ORIUM PILOT MANUAL... -
Page 36: A3 - Hydraulic Schematic Diagrams
A3 - Hydraulic schematic diagrams A3.1 - Connection of 1 radiator circuit ORIUM Pilot : Ambient thermostat : Ambient sensor Sext : Outdoor sensor PPac : Heat pump purger Filter : Sieve fi lter : OPT : Overheat protection thermostat... -
Page 37: A3.3 - Connection Of 1 Radiator Circuit And 1 Dhw Circuit
A3.3 - Connection of 1 radiator circuit and 1 DHW circuit ORIUM Pilot : Ambient thermostat : Ambient sensor Sext : Outdoor sensor PPac : Heat pump purger Filter : Sieve fi lter : OPT : Overheat protection thermostat : Expansion vessel... -
Page 38: A3.5 - Connection Of 2 Radiator Circuits
A3.5 - Connection of 2 radiator circuits ORIUM Pilot : Ambient thermostat : Ambient sensor Sext : Outdoor sensor PPac : Heat pump purger Mixed circuit n°2 Filter : Sieve fi lter : OPT : Overheat protection thermostat : Expansion vessel... -
Page 39: A3.7 - Connection Of 1 Radiator Circuit And 1Underfl Oor Heating Circuit
A3.7 - Connection of 1 radiator circuit and 1underfl oor heating circuit ORIUM Pilot : Ambient thermostat : Ambient sensor Sext : Outdoor sensor PPac : Heat pump purger Mixed circuit n°2 Filter : Sieve fi lter : OPT : Overheat protection thermostat... -
Page 40: A3.9 - Connection Of 2 Radiator Circuits And 1 Dhw Circuit
A3.9 - Connection of 2 radiator circuits and 1 DHW circuit ORIUM Pilot : Ambient thermostat : Ambient sensor Sext : Outdoor sensor PPac : Heat pump purger Mixed circuit n°2 Filter : Sieve fi lter : OPT : Overheat protection thermostat... -
Page 41: A4 - Wiring Diagram
6kW Electrical backup HP pump Single-phase Heating/DHW power supply pump * Switching from heating mode to cooling mode (dry contact). Function possible if the room thermostat connected to the pilot allows this contact to be used. ORIUM PILOT MANUAL... -
Page 42: A5 - Recap Of Functions
Installer menu 9 character message Current comfort mode Programming Comfort mode Eco mode active Frost protection Holiday mode mode Day of the week: (1= Monday; 2= Tuesday...) Display zone: temperatures, pressure, settings, time... ORIUM PILOT MANUAL... -
Page 43: A5.2 - Menus
(Return to factory settings) press for 5s - OUTS.TMIN : Outside temperature on the coldest day - MODE : Choice of ORIUM Pilot operation : HP only operation HP+B ACKUP : Operation with the heat pump and authorised back-up BACK up... -
Page 44: A6 - Product Technical Information Sheet
A6 - Product technical information sheet A6.1 - ORIUM Pilot with HTi 6kW single-phase heat pump ORIUM PILOT MANUAL... -
Page 45: A6.2 - Orium Pilot With Hti 8Kw Single-Phase Heat Pump
A6.2 - ORIUM Pilot with HTi 8kW single-phase heat pump ORIUM PILOT MANUAL... -
Page 46: A6.3 - Orium Pilot With Hti 70 8Kw Three-Phase Heat Pump
A6.3 - ORIUM Pilot with HTi 8kW three-phase heat pump ORIUM PILOT MANUAL... - Page 47 ORIUM PILOT MANUAL...
- Page 48 NOTES : www.intuis.fr Industrial and development site Rue de la République CS 40029 80210 Feuquières-en-Vimeu Customer service 0)9 78 45 10 26 +33 ( service-consommateur@intuis.fr service-client@intuis.fr...
