Summary of Contents for Ronix RH-4021

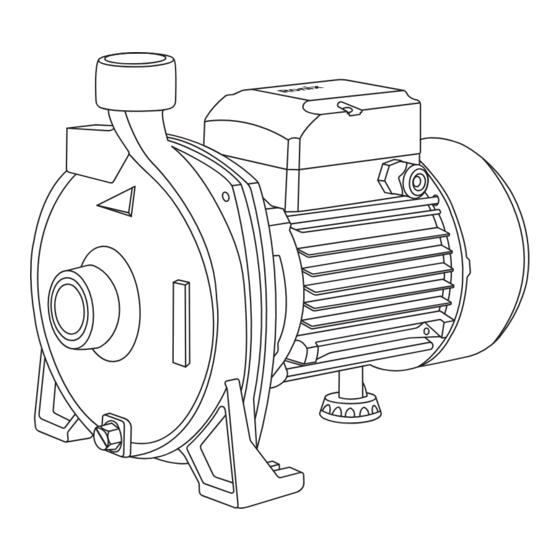

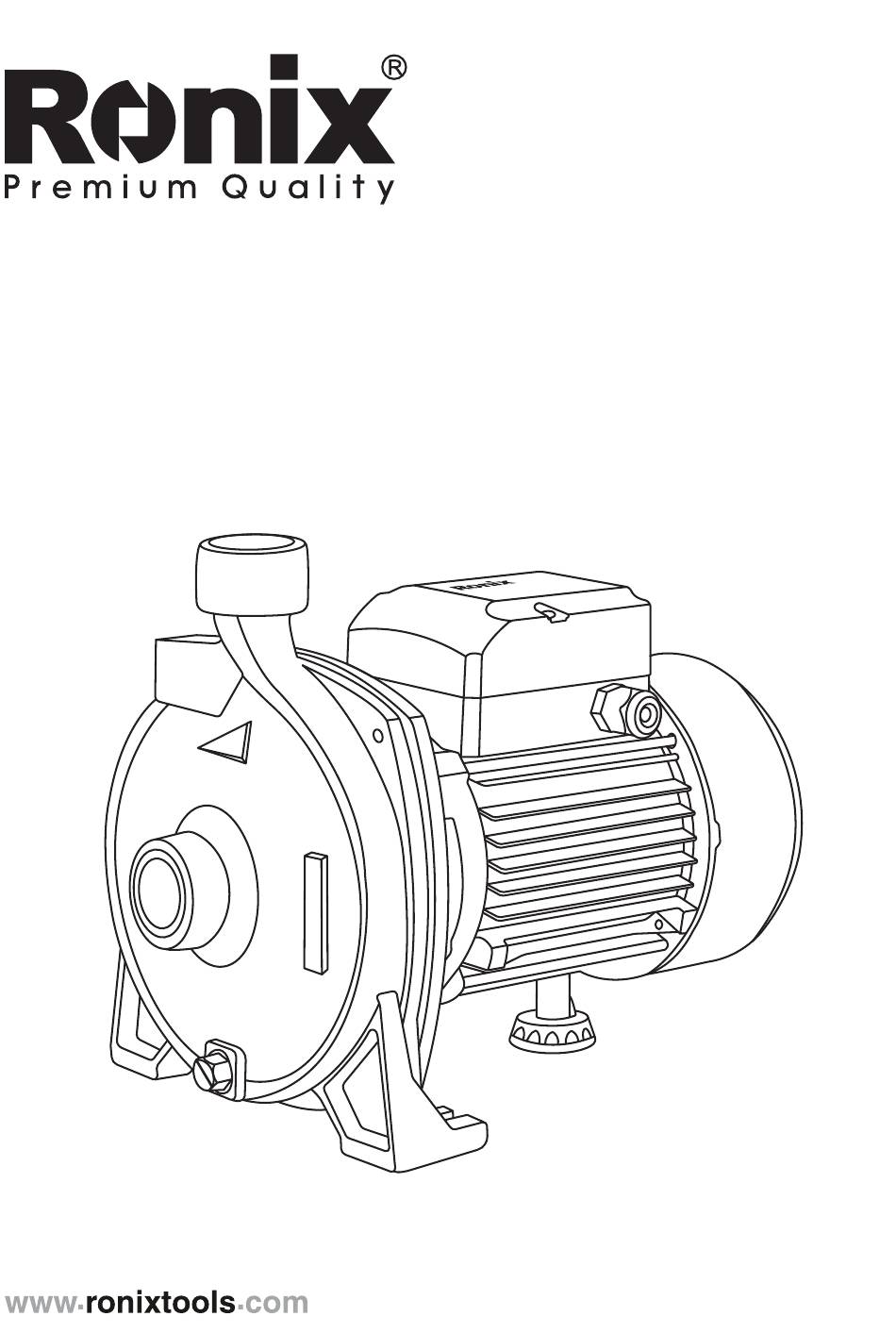

- Page 1 CENTRIFUGAL PUMP 1HP RH-4021...
-
Page 2: Specification
Mechanical seal material Motor protection Thermal protection Min.Flow 0.3m³/h Motor housing material ALUMINUM Min.Head Protection level IP44 Pump housing material CAST IRON Number of impeller Coil winding material COPPER Impeller material BRASS shaft material SS304+45 Supplied In Ronix color box USER MANUAL... -
Page 3: Part List
To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or call Ronix Service Center. This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock. -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 5: Personal Safety
of electric shock. - If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via an RCD with a rated residual current of 30mA or less is always recommended. - Page 6 Use of the power tool for operations different from those intended could result in a hazardous situation. SERVICE - Have your power tool serviced by Ronix Service Center. This will ensure that the safety of power tool is maintained. - Follow instruction for lubricating and changing accessories.
-
Page 7: Use And Maintenance Instructions
Carefully follow the instructions below to obtain the best performance and a long service life from your pump. Contact RONIX service center if you have any problem. OPERATING CONDITIONS: these pumps have been designed to pump neutral clean liquids in which no abrasive solids are suspended at temperatures of no more than 60ºC... - Page 8 The intake pipe must be slightly angled up towards the intake mouth to avoid the formation of air locks. Make sure that the intake pipe is completely airtight and immersed in the water by at least half a meter to avoid the formation of vortexes. Always fit a foot valve at the end of the intake pipe.
-
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS: The installer is responsible for making the electrical connections to the mains supply in compliance with the relevant gulations in force; - Make sure that the specifications on the pump rating plate and the rated line values are the same; - Connect the pump to an effective earth circuit and then connect up the phases following the diagram on the terminal block cover or rating plate;... -
Page 10: Maintenance
When you have completed the operation, screw the plug back in again and start the pump. The pump should be primed again whenever it has not been used for a long period of time or when air has made its way into the system. - Page 11 Problem • Check connections and • No power Motor won`t start voltage values • Impeller stuck • Call Ronix Service Center • Clean filter • Move pump closer to water outlet level • Clogged filter Excessive intake Motor turns without •...
