Summary of Contents for Lectrosonics LEADPTeslaCCSBLKUS

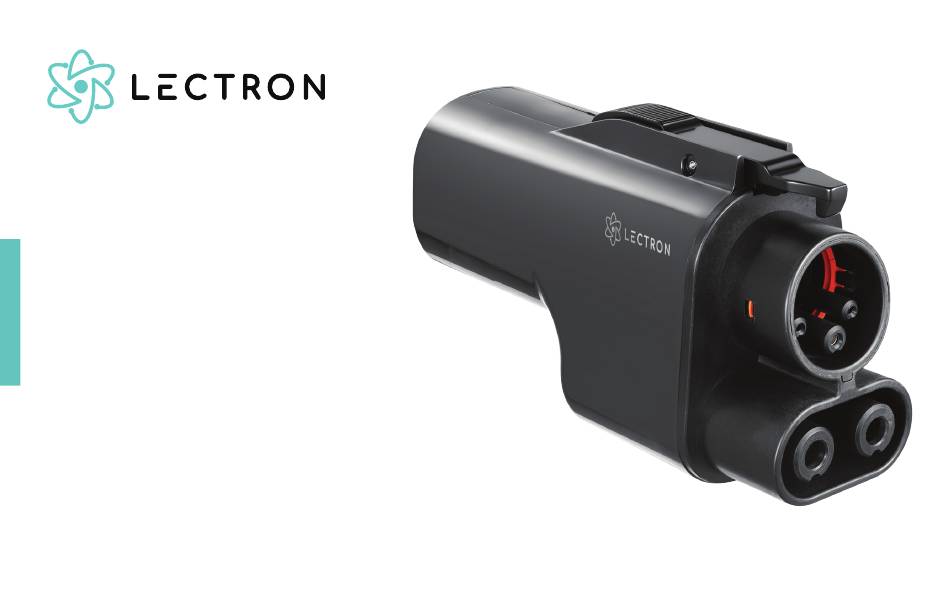

- Page 1 V O R T E X P L U G S U P E R C H A R G E R T O C C S 1 A D A P T E R U S E R M A N U A L...
-
Page 2: Table Of Contents
C O N T E N T S Introduction .......................................... Safety Instructions ......................................What’s Included ......................................Parts Overview ......................................... Before Use ........................................... Charging Time ......................................... Connecting the Vortex Plug .................................. Removing the Vortex Plug ..................................Troubleshooting ......................................Specifications ........................................ -
Page 3: Introduction
I N T R O D U C T I O N T O T H E V O R T E X P L U G The Lectron Vortex Plug is a NACS to CCS1 adapter that enables CCS1 vehicles within the North American Charging Standard (NACS) Alliance to access Tesla Supercharger stations. -
Page 4: What's Included
P L E A S E R E A D I N S T R U C T I O N S C A R E F U L L Y B E F O R E U S E : •... -
Page 5: Parts Overview
P A R T S O V E R V I E W CCS1 Coupler NACS Supercharger Inlet CCS1 Unlock Latch NACS Unlock Button... -
Page 6: Before Use
B E F O R E U S E N O T E : Ensure the Tesla Supercharger supports CCS1 charging. W A R N I N G : Do not store the NACS to CCS1 Adapter outside of the storage temperature range of -40°F to 185°F. C H A R G I N G T I M E Charging time varies depending on the Supercharger station, electric vehicle specifications, environmental conditions, and battery temperature. -
Page 7: Connecting The Vortex Plug
C O N N E C T I N G T H E V O R T E X P L U G 1. Press the NACS unlock button and connect the 2. Once securely connected, open your EV charging Supercharger coupler to the NACS Supercharger port and press the CCS1 unlock latch on the inlet on the adapter. - Page 8 3. Allow a brief pause for the vehicle and charger 4. Begin charging following the station to begin communicating. Check the internal guidelines. EV display for a successful connection. Charging Time Remaining 35 min 104 mi 125 kW 522 mi/hr +5 mi...
-
Page 9: Removing The Vortex Plug
R E M O V I N G T H E V O R T E X P L U G 1. Only remove the Vortex Plug once charging 4. Close the EV charging port. is complete. 5. Press the NACS unlock button and disconnect 2. -
Page 10: Troubleshooting
T R O U B L E S H O O T I N G If the vehicle fails to initiate charging, please consider the following steps: 1. Ensure the Supercharger supports CCS1 vehicles. 2. Check for firm connections at both the NACS and CCS1 ends of the Vortex Plug. 3. -
Page 11: Specifications
S P E C I F I C A T I O N S Model: LEADPTeslaCCSBLKUS Rated current: 500 A Rated input / output: 1,000 V Weatherproof rating: IP67 Operating temp: -22°F - 122°F Storage temp: -40°F to 185°F Connector:... - Page 12 G E T M O R E S U P P O R T Need assistance? Scan the QR code below or email us at contact@ev-lectron.com www.ev-lectron.com Made in China...
