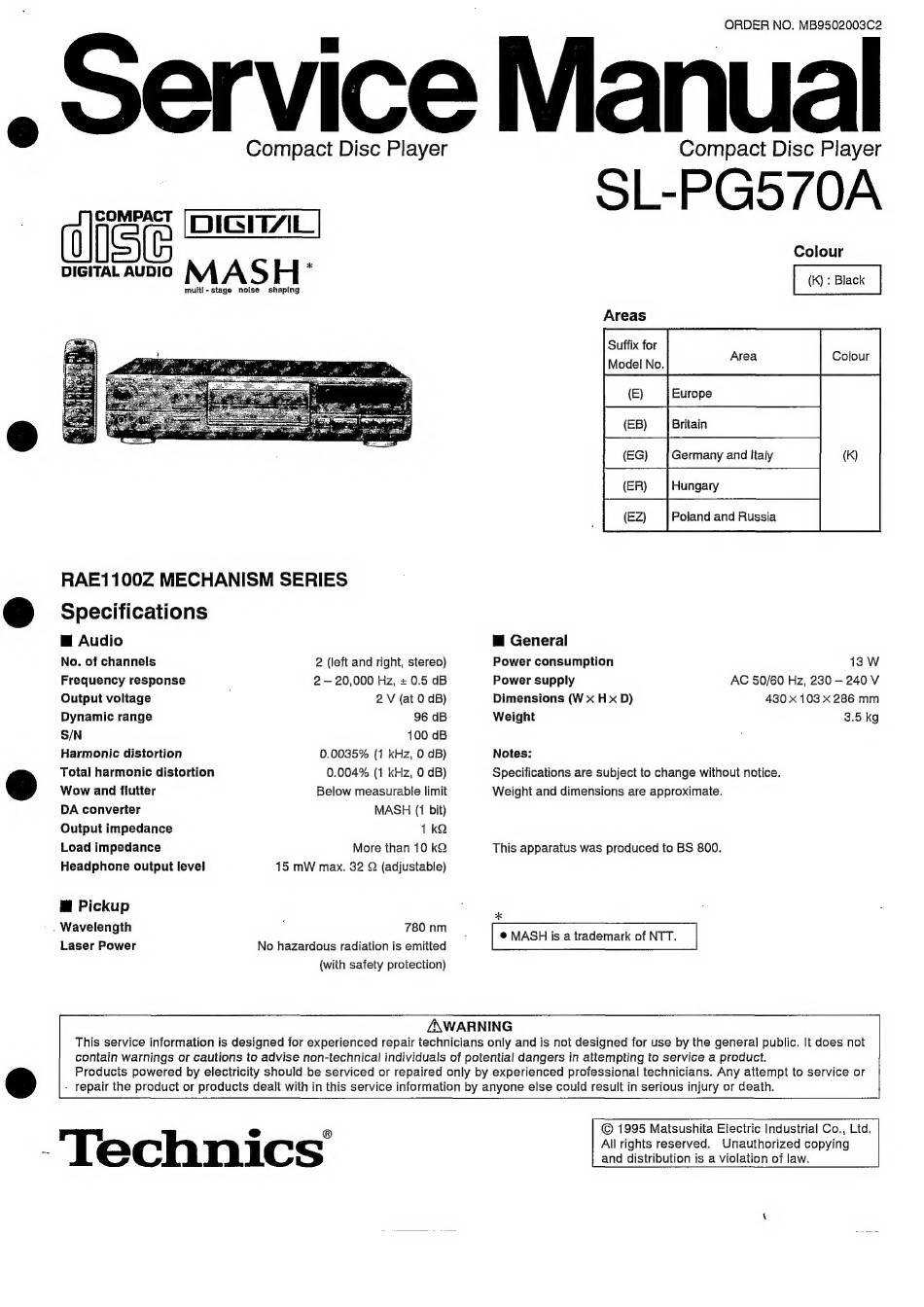

Technics SL-PG570A Service Manual

ORDER NO. MB9502003C2
Compact Disc Player
multi-stage nolse shaping
RAE1100Z MECHANISM SERIES
Specifications
@ Audio
No. of channels
Frequency response
Output voltage
Dynamic range
S/N
Harmonic distortion
Total harmonic distortion
Wow and fiuiter
DA converter
Output impedance
Load impedance
Headphone output level
@ Pickup
. Wavelength
Laser Power
2 (left and right, stereo)
2 — 20,000 Hz, + 0.5 dB
2 V (at 0 dB)
96 dB
100 dB
0.0035% (4 kHz, 0 dB)
0.004% (1 kHz, 0 dB)
Below measurable limit
MASH (1 bit)
1 kQ
More than 10 kQ
15 mW max. 32 Q (adjustable)
780 nm
No hazardous radiation is emitted
(with safety protection)
"Technics
ZA\WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
- repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Compact Disc Player
SL-PG570A
Colour
(K) : Black
Areas
[= T=
Mo i No. Area Colour
ras
EZ)
Poland and Russia
Mi General
Power consumption 13W
Power supply AC 50/60 Hz, 230 — 240 V
Dimensions (W x Hx D) 430 x 103 x 286 mm
Weight 3.5 kg
Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
This apparatus was produced to BS 800.
® MASH is a trademark of NTT.
© 1995 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.
