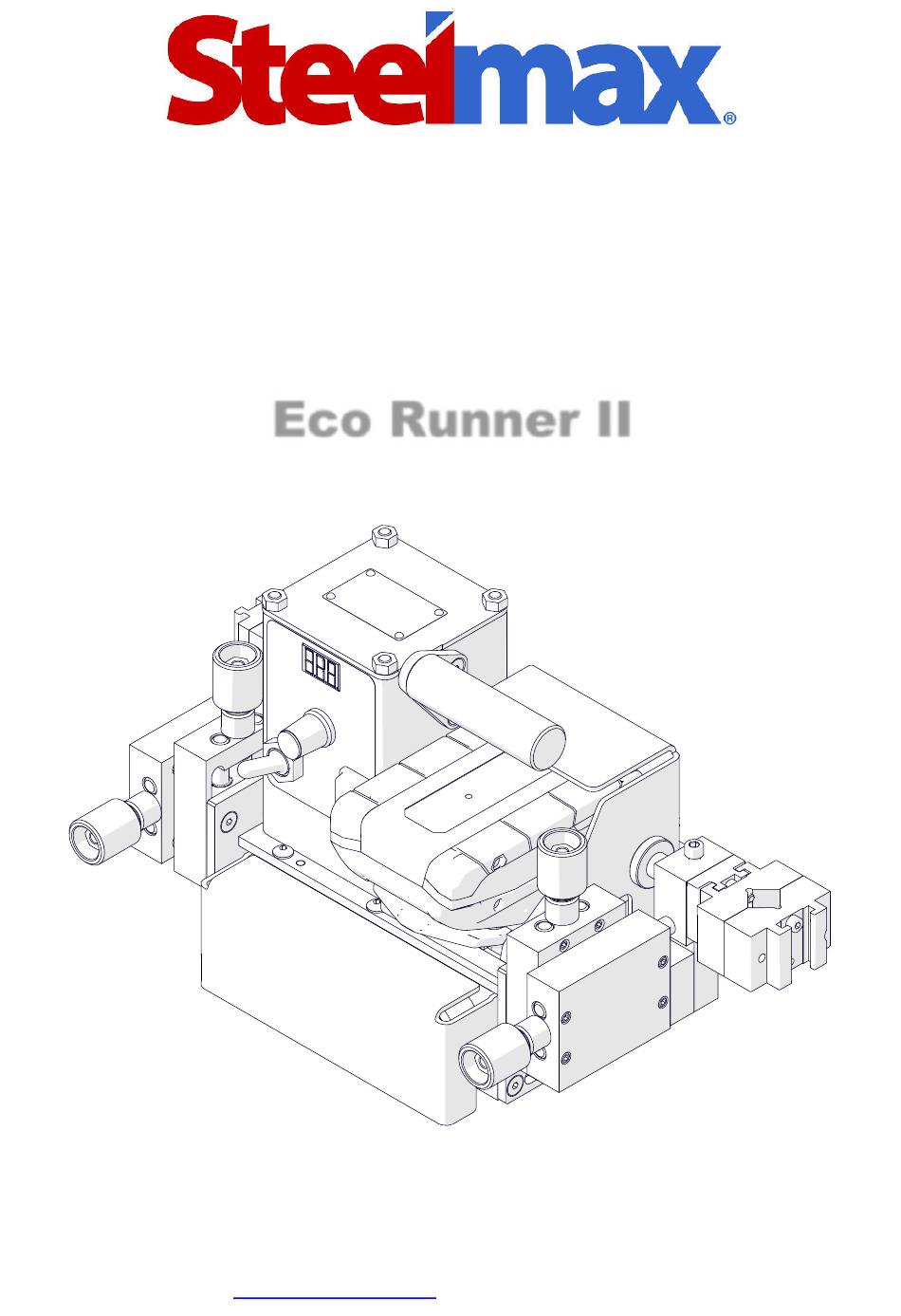

- Page 1 The tools of innovation. OPERATOR’S MANUAL WELDING CARRIAGE Eco Runner II 801 W. Mineral Ave. Suite 103, CO 80120 1– 303-690-9146, FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...
-
Page 2: Table Of Contents
Contents 1. GENERAL INFORMATION ....................3 1.1. Application ........................3 1.2. Technical data......................3 1.3. Equipment included ....................4 1.4. Dimensions .........................5 1.5. Design ........................6 2. SAFETY PRECAUTIONS ....................7 3. STARTUP AND OPERATION ....................9 3.1. Checking the battery charge level ................9 3.2. Operating ........................10 3.3. -
Page 3: General Information
Eco Runner II 1. GENERAL INFORMATION 1.1. Application The Eco Runner II is a carriage designed to weld fillet joints with MIG/MAG torches. The carriage is battery-powered and clamped with permanent magnets. Optional magnet blocks increase the clamping force. The machine is designed for use by a professional operator only. -
Page 4: Equipment Included
1.3. Equipment included Carriage 1 unit Cardboard box 1 unit Hex wrench 4 mm 1 unit Hex wrench 3 mm 1 unit Battery 4.0 Ah 2 units Charger 1 unit – Operator’s Manual 2 units Eco Runner II Operator’s Manual... -
Page 5: Dimensions
Eco Runner II 1.4. Dimensions 7.5″(192 mm) Eco Runner II Operator’s Manual... -
Page 6: Design
Eco Runner II 1.5. Design Torch holder bracket (×2) LED display Carrying handle Speed knob Direction switch Roller (×2) (Left / O / Right) Torch holder Power switch Charge indicator Cross slide (×2) Eco Runner II Operator’s Manual... -
Page 7: Safety Precautions
23. Do not leave the carriage unattended during work. 24. Store the machine and battery in a safe and dry place. Do not store discharged battery. Eco Runner II Operator’s Manual... - Page 8 30. Acid flammable liquid may leak from defective battery. If the liquid comes in contact with your skin or eyes, rinse them immediately with clean water and seek medical attention. 31. When you transport the battery, familiarize yourself with hazardous goods carriage regulations (UN 3480 and UN 3481). Eco Runner II Operator’s Manual...
-
Page 9: Startup And Operation
4 LEDs light up green ≤ 75% 3 LEDs light up green ≤ 50% 2 LEDs light up green ≤ 25% 1 LED lights up green 1 LED flashes green charging required Charge status button Charge indicator Eco Runner II Operator’s Manual... -
Page 10: Operating
). Next, if the speed unit is set to centimeters per minute, shows. If the unit is set to inches per minute, shows. Use the 3 mm and 4 mm hex wrenches to tighten the torch in the holder (4). Eco Runner II Operator’s Manual... - Page 11 (5). Then, move the cross slides (6) and tighten the screws (5). Put the carriage so that the rollers are on the workpiece. Then, use the knobs (7) to put the torch in the weld joint. Eco Runner II Operator’s Manual...
-
Page 12: Changing The Speed Unit
When the switch is set to ‘CM’, the display shows and the speed is shown in centimeters per minute. When the switch is set to ‘INCH’, the display shows and the speed is shown in inches per minute. Eco Runner II Operator’s Manual... -
Page 13: Troubleshooting
Battery internal error. Replace the battery. Battery overheated. Wait until the temperature of the battery decreases. Battery temperature too low. Move the battery to a warmer place and wait until the temper- ature of the battery increases. Eco Runner II Operator’s Manual... -
Page 14: Maintenance
4. Examine the battery and replace if damaged. Each month: 1. Make sure that the knob and the switches work as intended. Replace if they are loose or damaged. 2. Examine cables and replace if damaged. 3. Tighten screws if loose. Eco Runner II Operator’s Manual... -
Page 15: Accessories
Eco Runner II 5. ACCESSORIES 5.1. Battery 4.0 Ah Part number: AKM-0738-10-00-01-0 5.2. Charger Charges the battery from the power source. Part number: LDW-0738-10-00-30-0 (EU) LDW-0738-06-00-30-0 (AUS/NZ) LDW-0738-04-00-30-0 (UK) Eco Runner II Operator’s Manual... -
Page 16: Auxiliary Magnet Blocks
5.3. Auxiliary magnet blocks The blocks increase the clamping force of the carriage to the surface. Part number: ZST-0655-09-00-00-0 (clamping force: 2×50 N) Use the 2.5 mm hex wrench to tighten the blocks to the carriage. Eco Runner II Operator’s Manual... -
Page 17: Cable Anchor
Eco Runner II 5.4. Cable anchor Attaches the gas cables to decrease the load applied on the torch holder. Install on the carrying handle. Part number: PDT-0526-21-00-00-0 Eco Runner II Operator’s Manual... -
Page 18: Exploded Views And Parts List
Eco Runner II 6. EXPLODED VIEWS AND PARTS LIST ITEM PART NUMBER DESCRIPTION Q-TY LDW-0738-24-00-30-0 BATTERY CHARGER ASC 145 USA/CND AKM-0738-24-00-01-0 BATTERY LiHD 18V – 4Ah Steelmax KLC-000007 4 MM HEX WRENCH KLC-000006 3 MM HEX WRENCH ZST-0655-09-00-00-0 MAGNET SET ASSY... - Page 19 TORX HEAD SCREW 3X14 NKR-000017 HEX M6 NUT PKR-0735-02-04-00-0 COVER WSP-0735-02-03-00-0 CAMTILEVER RKJ-0735-02-02-01-0 HANDLE NKR-000016 HEX M5 NUT WKR-000136 HEX SOCKET COUNTERSUNK HEAD SCREW M5x16 TLJ-000110 MOUNTING SLEEVE MDL-0735-80-01-00-0 ELECTRONIC MODULE WKR-000372 CROSS SOCKET COUNTERSUNK HEAD SCREW M3x5 Eco Runner II Operator’s Manual...
- Page 20 HEX SOCKET HEAD CAP SCREW M5x16 ZSP-0270-07-00-00-2 FOLLOWER ASSY WKR-000134 HEX SOCKET COUNTERSUNK HEAD SCREW M5x12 MGT-0270-07-02-00-1 MAGNET PLATE KLK-000045 DOWEL PIN 5n6x12 RLK-0270-07-03-00-1 GUIDE ROLLER KLK-000071 DOWEL PIN 8n6x26 SRB-000089 HEX SOCKET HEAD CAP SCREW M5x30 ZSP-0270-11-00-00-0 PLATE ASSY Eco Runner II Operator’s Manual...
- Page 21 HEX NUT M6 PDK-000021 ROUND WASHER 6.4 PKT-0247-01-05-00-0 HANDWHEEL SPR-000010 DISC SPRING 6.2x12.5x0.6 PDK-000020 ROUND WASHER 6.4 TLJ-0247-01-04-00-0 SLEEVE WKR-000026 HEX SOCKET SET SCREW WITH FLAT POINT M5x8 KRP-0340-02-01-11-0 TORCH GUIDE FRAME I SRB-0340-02-01-20-0 BOLT ASSY Eco Runner II Operator’s Manual...
- Page 22 HORIZONTAL BAR ITEM PART NUMBER DESCRIPTION Q-TY NKR-000017 HEX NUT M6 PDK-000021 ROUND WASHER 6.4 PKT-0247-01-05-00-0 HANDWHEEL SPR-000012 DISC SPRING 8.2x16x0.6 TLJ-0247-01-04-00-0 SLEEVE WKR-000136 HEX SOCKET COUNTERSUNK HEAD SCREW M5x16 SLP-0270-05-02-00-0 HORIZONTAL BAR PLY-0655-03-01-00-0 GUIDE PLATE Eco Runner II Operator’s Manual...
- Page 23 SRB-000187 SPECIAL BOLT M6x40 PRS-000002 EXTERNAL RETAINING RING 10z PDK-0211-00-15-00-0 WASHER 10.1x15x1 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12 KST-0340-02-02-02-0 CLAMP BLOCK KST-0246-05-03-00-1 ROTATE BLOCK SLP-0655-03-02-01-0 TLJ-0246-05-04-00-0 SLEEVE SRB-000091 HEX SOCKET HEAD CAP SCREW M5x35 Eco Runner II Operator’s Manual...
- Page 24 Eco Runner II WIRING DIAGRAM Eco Runner II Operator’s Manual...
-
Page 25: Declaration Of Conformity
PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok Poland We declare with full responsibility that: Eco Runner II welding carriage is manufactured in accordance with the following standards: • EN ISO 12100:2010 • EN 60204-1:2018 • EN IEC 60974-10:2021 and satisfies the regulations of the guidelines: 2014/30/EU, 2006/42/EC, 2011/65/EU. -
Page 26: Environmental Protection
Returning the battery to the collection point reduces the negative impact of its hazardous substances on human health and the environment, and enables the recovery of raw materials and plastics in the recycling process. refers to undamaged batteries Eco Runner II Operator’s Manual... -
Page 27: Warranty Card
WARRANTY CARD No..................in the name of Manufacturer warrants the Eco Runner II welding carriage to be free of defects in material and workmanship under normal use for a period of 12 months from the date of sale. The warranty does not cover wheels as well as damage or wear that arise from misuse, accident, tampering, or any other causes not related to defects in workman- ship or material.
