SteelMax Li’l Runner HS Operator's Manual

Welding carriage
Hide thumbs Also See for Li’l Runner HS:
Table of Contents

Advertisement

Quick Links

Download this manual
The tools of innovation.

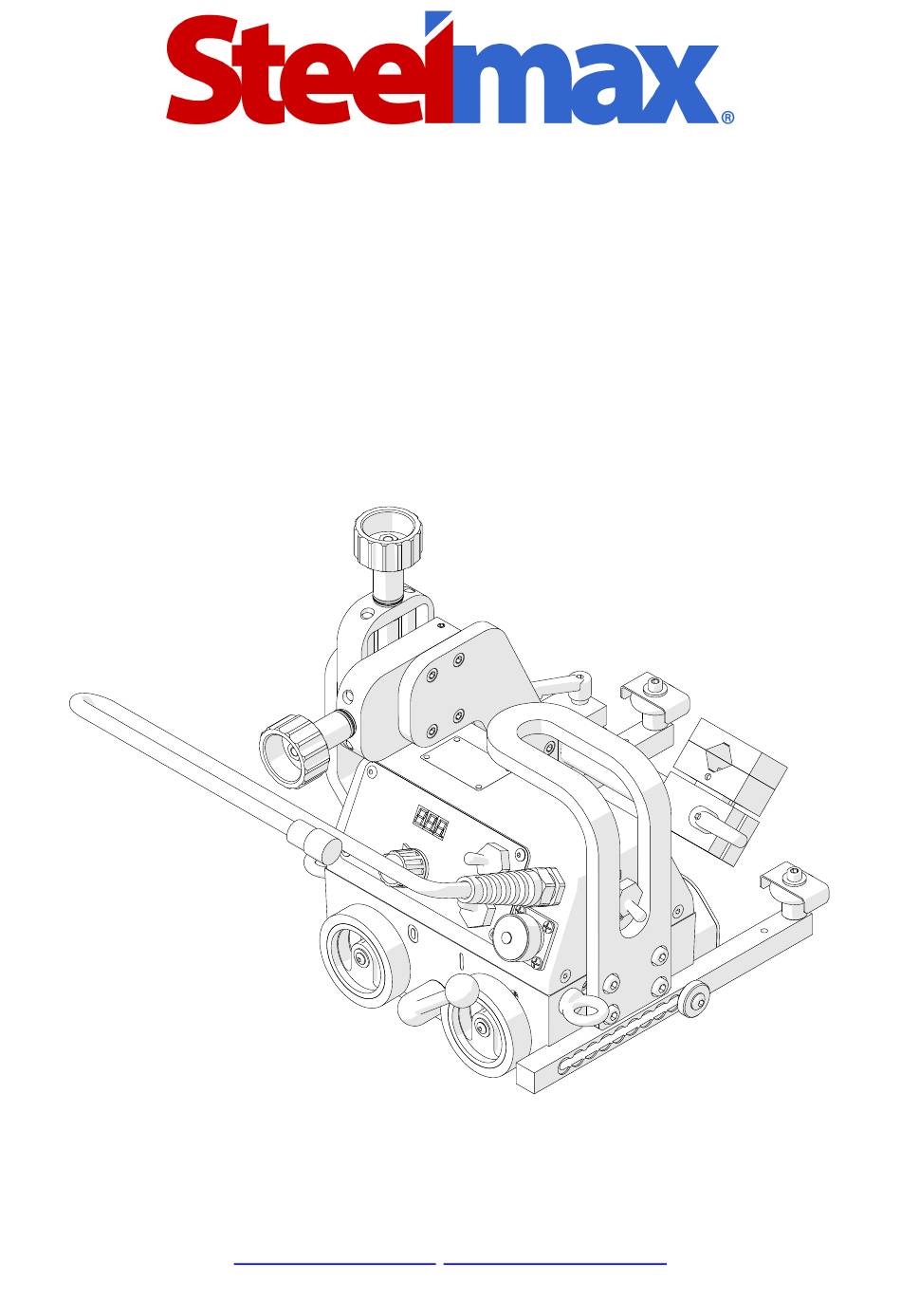

OPERATOR'S MANUAL
L
i
'
l
R
u
n
n
e
r
(
H
S
)
L
i
'
l
R
u
n
n
e
r
(
H
S
)
WELDING CARRIAGE
15335 E. Fremont Drive Centennial, CO 80112
1– 87STEELMAX, FAX 303 – 690 – 9172
www.steelmax.com sales@steelmax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Li’l Runner HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SteelMax Li’l Runner HS

Summary of Contents for SteelMax Li’l Runner HS

  • Page 1 The tools of innovation. OPERATOR’S MANUAL ’ ’ WELDING CARRIAGE 15335 E. Fremont Drive Centennial, CO 80112 1– 87STEELMAX, FAX 303 – 690 – 9172 www.steelmax.com sales@steelmax.com...

  • Page 2: Table Of Contents

    Contents 1. GENERAL INFORMATION ....................3 1.1. Application ......................... 3 1.2. Technical data......................3 1.3. Equipment included ....................4 1.4. Dimensions ........................ 5 1.5. Design ........................6 2. SAFETY PRECAUTIONS ....................7 3. STARTUP AND OPERATION ................... 9 3.1. Preparing ........................9 3.2.

  • Page 3: General Information

    SM-WC-LR Li’l Runner (HS) 1. GENERAL INFORMATION 1.1. Application The Li’l Runner (HS) is a welding carriage designed to make continuous butt and fillet welds. Allows MIG/MAG torches and is clamped with permanent magnets. Accessories allow using torches with a larger diameter and using two torches at the same time.

  • Page 4: Equipment Included

    SM-WC-LR Li’l Runner (HS) 1.3. Equipment included Carriage 1 unit Cardboard box 1 unit Long rod torch holder with clip 1 unit 3 m (10 ft) power cord 1 unit 6.5 m (21 ft) arc ignition cable 1 unit 4 mm hex wrench 1 unit –...

  • Page 5: Dimensions

    SM-WC-LR Li’l Runner (HS) 1.4. Dimensions 366 mm (14.4″) Li’l Runner (HS) Operator’s Manual...

  • Page 6: Design

    SM-WC-LR Li’l Runner (HS) 1.5. Design Cross slide Control panel Guide arm Magnet ON/OFF lever Power switch Arc ignition socket Lug for fall arrester Travel direction switch (Left / O / Right) LED display Speed adjustment knob Arc ignition switch (TEST / O / I) Li’l Runner (HS) Operator’s Manual...

  • Page 7: Safety Precautions

    SM-WC-LR Li’l Runner (HS) 2. SAFETY PRECAUTIONS 1. Before use, read this Operator’s Manual and complete a training in occupational safety and health. 2. Use only in applications specified in this Operator’s Manual. 3. Make sure that the carriage has all parts and they are genuine and not damaged. 4.
  • Page 8 SM-WC-LR Li’l Runner (HS) 23. Keep the torch cables away from the surface. Hang them to decrease the load applied on the carriage. Use only cables whose weight is not more than 8 kg (18 lbs) for horizontal work and 6 kg (13 lbs) for vertical work. 24.

  • Page 9: Startup And Operation

    SM-WC-LR Li’l Runner (HS) 3. STARTUP AND OPERATION 3.1. Preparing Use the carrying handle to transport the carriage to the worksite. Then, set to ‘O’ all switches (power, travel direction, and arc ignition switch) and the magnet lever. Next, connect the carriage to the power source, and then put the torch into the torch holder and tighten with the screws.

  • Page 10: Connecting To The Welding Circuits

    SM-WC-LR Li’l Runner (HS) 3.2. Connecting to the welding circuits The carriage can control two torches by using the arc ignition cable plugged into the arc ignition socket. To do this, refer to the diagram from Fig. 2 and connect one blue- jacketed wire to one terminal of the welding circuit.

  • Page 11: Positioning At The Worksite

    SM-WC-LR Li’l Runner (HS) 3.3. Positioning at the worksite Put the guide arms so that the carriage is in constant contact with the workpiece. You can set them by a constant step (interval adjustment), or continuously after you swap them (continuous adjustment). To set them correctly when the carriage moves to the left, use the 4 mm hex wrench to loosen the screw that secures the right guide arm.

  • Page 12: Operating

    SM-WC-LR Li’l Runner (HS) To put the carriage closer to the workpiece, use the 4 mm hex wrench to remove the roller assemblies. Next, install them at the other end of the guide arms, and then swap the guide arms (Fig. 3). Switch the magnet ON/OFF lever from left (‘O’) to right (‘I’).

  • Page 13: Changing The Unit Of Speed

    SM-WC-LR Li’l Runner (HS) 3.5. Changing the unit of speed To change the unit of speed between centimeters per minute and inches per minute, unplug the carriage from the power source and follow the steps shown in Fig. 4. Use the 2.5 mm hex wrench (not included) to loosen the screws and get access to the back side of the control panel.

  • Page 14: Troubleshooting

    SM-WC-LR Li’l Runner (HS) 3.6. Troubleshooting Message Problem Solution Display not fully on after powering. Contact service center for check and repair. Refer to the section “Changing the Speed shown in centimeters per unit of speed.” minute instead of inches per minute. Refer to the section “Changing the Speed shown in inches per minute unit of speed.”...

  • Page 15: Maintenance

    SM-WC-LR Li’l Runner (HS) 4. MAINTENANCE Each day: 1. Clean the chassis and wheels. 2. Clean the rollers of the guide arms. Make sure that the rollers rotate freely. 3. Clean the torch nozzle and replace if damaged. Each month: 1.

  • Page 16: Accessories

    SM-WC-LR Li’l Runner (HS) 5. ACCESSORIES 5.1. Torch clamps 5.1.1. 16–22 mm torch clamp Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Part number: ZRZ-0466-04-01-00-0 5.1.2. 16–22 mm torch clip Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Use the 4 mm hex wrench to tighten the torch in the clip.

  • Page 17: Rods

    SM-WC-LR Li’l Runner (HS) 5.2. Rods 5.2.1. Short rod Provides a 120 mm (4.72″) reach. Part number: WLK-0476-20-01-00-0 5.2.2. Long rod Provides a 240 mm (9.45″) reach. Part number: WLK-0466-04-10-00-0 Li’l Runner (HS) Operator’s Manual...

  • Page 18: Torch Holders

    SM-WC-LR Li’l Runner (HS) 5.3. Torch holders 5.3.1. Short rod torch holder with clamp Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Part number: UCW-0476-20-00-00-0 5.3.2. Short rod torch holder with clip Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Use the 4 mm hex wrench to tighten the torch in the clip.
  • Page 19 SM-WC-LR Li’l Runner (HS) 5.3.4. Long rod torch holder with clamp Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Part number: UCW-0466-04-00-00-0 5.3.5. Long rod torch holder with clip Allows using a torch with the diameter of 16–22 mm (0.63–0.87″). Use the 4 mm hex wrench to tighten the torch in the clip.

  • Page 20: Torch Extension Arm

    SM-WC-LR Li’l Runner (HS) 5.4. Torch extension arm Increases the reach of the torch. Use the 4 mm hex wrench to remove the M5x10 screws that attach the cross slide. Next, use the same screws to attach the cross slide at the end of the arm as shown in the figure. Then, use M5x16 screws to attach the arm to the carriage.

  • Page 21: Guide Arms

    SM-WC-LR Li’l Runner (HS) 5.5. Guide arms 5.5.1. Edge following guide arms Allow guiding the carriage along outside edges. Use the 4 mm hex wrench to remove the standard guide arms and install the new guide arms. Part number (2 units): PRW-0466-41-00-00-1 Li’l Runner (HS) Operator’s Manual...
  • Page 22 SM-WC-LR Li’l Runner (HS) 5.5.2. Adjustable guide arms Allow guiding the carriage along lap joints and templates. Use the 4 mm hex wrench to remove the standard guide arms and install the new guide arms. Part number (2 units): PRW-0466-42-00-00-1 Li’l Runner (HS) Operator’s Manual...
  • Page 23 SM-WC-LR Li’l Runner (HS) 5.5.3. Magnet guide arms Allow guiding the carriage on ceilings. Use the 4 mm hex wrench to remove the standard guide arms and install the new guide arms. Part number (2 units): PRW-0466-52-00-00-1 Li’l Runner (HS) Operator’s Manual...
  • Page 24 SM-WC-LR Li’l Runner (HS) 5.5.4. Low guide arms Allow guiding the carriage along low walls. Use the 4 mm hex wrench to remove the standard guide arms and install the new guide arms. Part number (2 units): PRW-0466-65-00-00-1 To put the carriage closer to the workpiece, use the 4 mm hex wrench to remove the roller assemblies.
  • Page 25 SM-WC-LR Li’l Runner (HS) 5.5.5. High guide arms Allow guiding the carriage along walls that have holes. Use the 4 mm hex wrench to remove the standard guide arms and install the new guide arms. Part number (2 units): PRW-0466-66-00-00-1 Li’l Runner (HS) Operator’s Manual...

  • Page 26: Dual Torch Mount

    SM-WC-LR Li’l Runner (HS) 5.6. Dual torch mount Allows using a second torch. Use the 5 mm hex wrench to remove the M6x20 screws and washers that attach the carrying handle. Next, use the same screws and wash- ers to attach the mount to the carriage. Part number: PDT-0466-40-00-00-1 max 75 mm (3″)

  • Page 27: Auxiliary Magnet Blocks

    SM-WC-LR Li’l Runner (HS) 5.7. Auxiliary magnet blocks The blocks increase the clamping force of the carriage. Use the 4 mm and 5 mm hex wrenches to remove eight screws and washers. Next, install the blocks. Part number: BLO-0466-44-01-00-0 (holding force: 55 N / 12 lbs) Part number: BLO-0466-47-01-00-0 (holding force: 80 N / 17 lbs)

  • Page 28: Flexible Guide Set

    SM-WC-LR Li’l Runner (HS) 5.8. Flexible guide set Allows guiding the carriage on planes along a straight line, and on pipes and tanks. A single flexible guide is 1.85 m (6 ft) long. Its minimum curve radius is 1 m (3.3 ft). Holding force on a Temperature 5 mm (0.2″) thick surface...
  • Page 29 SM-WC-LR Li’l Runner (HS) Li’l Runner (HS) Operator’s Manual...

  • Page 30: Guide Adjustment Tool

    SM-WC-LR Li’l Runner (HS) 5.9. Guide adjustment tool Allows the guide to be put parallel to an outside edge or a groove. Part number: UST-0466-53-00-00-0 Attach the magnets to the guide, and put the guide on the workpiece along the direc- tion of welding.

  • Page 31: Flexible Trackway Set

    SM-WC-LR Li’l Runner (HS) 5.10. Flexible trackway set Allows the carriage to move on a flexible rail that is clamped to planes, pipes, or tanks. A single flexible rail is 1.88 m (6.1 ft) long, and its minimum curve radius is 1.25 m (4.1 ft).
  • Page 32 SM-WC-LR Li’l Runner (HS) Li’l Runner (HS) Operator’s Manual...
  • Page 33 SM-WC-LR Li’l Runner (HS) Li’l Runner (HS) Operator’s Manual...

  • Page 34: Magnetic Units For Flexible Trackway

    SM-WC-LR Li’l Runner (HS) 5.11. Magnetic units for flexible trackway 5.11.1. Magnetic unit Allows clamping a flexible trackway to ferromagnetic surfaces. Part number (bracket): DYS-0466-71-05-00-0 Part number: ZSP-0475-44-00-00-0 (magnetic unit) ZSP-0475-44-00-00-1 (heat-resistant magnetic unit) Temperature Holding force on a 5 mm (0.2″) thick surface Magnetic unit Heat-resistant magnetic unit 100% (1200 N, 265 lbs)
  • Page 35 SM-WC-LR Li’l Runner (HS) 5.11.1. Pivoting magnetic unit Allows clamping a flexible trackway to ferromagnetic surfaces that are concave or convex, to pipes with outer diameters of at least 800 mm (31.5″), and to surfaces that differ in height up to 80 mm (3.1″). Part number: ZSP-0475-85-00-00-0 Part number (bracket):...
  • Page 36 SM-WC-LR Li’l Runner (HS) 5.11.2. Spacing-adjustable magnetic unit Allows clamping a flexible trackway to two ferromagnetic pipes with diameters of 25– 230 mm (1–9″) and with distance between pipe axes of 170–230 mm (6.7–9.1″). Part number: ZSP-0523-19-00-00-0 Part number (bracket): DYS-0466-71-05-00-0 Holding force on a Temperature...
  • Page 37 SM-WC-LR Li’l Runner (HS) 5.11.3. Narrow magnetic unit Allows clamping a flexible trackway to ferromagnetic surfaces. Part number: Part number (bracket): PDS-0582-10-00-02-0 DYS-0466-71-07-00-0 Holding force on a Temperature 5 mm (0.2″) thick surface 100% (1000 N, 220 lbs) 20°C (68°F) 75% (750 N, 165 lbs) 80°C (176°F) 50% (500 N, 110 lbs)

  • Page 38: Support For Trackway With Magnetic Units

    SM-WC-LR Li’l Runner (HS) 5.12. Support for trackway with magnetic units Allows supporting a trackway used with at least five magnetic units, by filling the gaps between the units. To attach the support, use a torx screwdriver and M6x12 screws. Part number: WSP-0466-71-06-00-0 Li’l Runner (HS) Operator’s Manual...

  • Page 39: Vacuum Unit

    SM-WC-LR Li’l Runner (HS) 5.13. Vacuum unit When used with a vacuum pump, the vacuum unit allows clamping a flexible track- way to non-ferromagnetic surfaces. The holding force of the vacuum unit is 1400 N (300 lbs) at gauge pressure of –0.7 bar (–10 psig) and atmospheric pressure at sea level.

  • Page 40: Vacuum Track System

    SM-WC-LR Li’l Runner (HS) 5.14. Vacuum track system Dedicated to clamping a trackway to non-ferromagnetic surfaces. Part number (vacuum pump with safety reservoir): AGR-0541-24-10-00-0 (115 V US) AGR-0541-24-20-00-0 (230 V CEE) Other parts of the system are described in a separate manual. Li’l Runner (HS) Operator’s Manual...

  • Page 41: Support For Trackway With Vacuum Units

    SM-WC-LR Li’l Runner (HS) 5.15. Support for trackway with vacuum units Allows supporting a trackway used with at least five vacuum units, by filling the gaps between the units. To attach the support, use a torx screwdriver and M6x12 screws. Part number: WSP-0466-71-03-00-0 Li’l Runner (HS) Operator’s Manual...

  • Page 42: Mm Cross Slide

    SM-WC-LR Li’l Runner (HS) 5.16. 76 mm cross slide Increases the up-down or left-right adjustment range from 0–35 mm (0–1.38″) to 0– 76 mm (0–3″). Part number: ZSP-0466-46-00-00-1 Use the 4 mm hex wrench to remove the standard cross slide and install the new cross slide.

  • Page 43: Cable Anchor

    SM-WC-LR Li’l Runner (HS) 5.17. Cable anchor Attaches the gas cables and the power cord to decrease the load applied on the torch holder. Use the 5 mm hex wrench to install the anchor on the carrying handle. Part number: PDT-0466-55-00-00-0 5.18.

  • Page 44: Fall Arrester

    SM-WC-LR Li’l Runner (HS) 5.19. Fall arrester Protects the carriage from falling. The length of the line is 10 m (33 ft). Part number: URZ-000001 Li’l Runner (HS) Operator’s Manual...

  • Page 45: Stainless Steel Wheels

    SM-WC-LR Li’l Runner (HS) 5.20. Stainless steel wheels Allow working in horizontal position on a preheated plate. Part number (1 unit): KOL-0466-72-00-00-0 Use the 2.5 mm hex wrench to remove the cover and four wheels. Install in reverse sequence. Li’l Runner (HS) Operator’s Manual...

  • Page 46: 5-230 V Wiring Diagram

    SM-WC-LR Li’l Runner (HS) 6. 115–230 V WIRING DIAGRAM Li’l Runner (HS) Operator’s Manual...

  • Page 47: 5-230 V Hs Wiring Diagram

    SM-WC-LR Li’l Runner (HS) 7. 115–230 V HS WIRING DIAGRAM Li’l Runner (HS) Operator’s Manual...

  • Page 48: Wiring Diagram

    SM-WC-LR Li’l Runner (HS) 8. 42 V WIRING DIAGRAM Li’l Runner (HS) Operator’s Manual...

  • Page 49: Hs Wiring Diagram

    SM-WC-LR Li’l Runner (HS) 9. 42 V HS WIRING DIAGRAM Li’l Runner (HS) Operator’s Manual...

  • Page 50: 5-230 V Exploded Views And Parts List

    SM-WC-LR Li’l Runner (HS) 10. 115–230 V EXPLODED VIEWS AND PARTS LIST ITEM PART NUMBER DESCRIPTION Q-TY KBL-0466-17-00-00-0 START-STOP ARC IGNITION CABLE 6.5 M (20 FT) PWD-0466-18-00-00-0 POWER CORD 230V (CEE) PWD-0466-16-00-00-0 POWER CORD 120V (USA) UCW-0466-22-00-00-0 LONG ROD TORCH HOLDER WITH CLIP ASSY WLK-0466-04-10-00-0 LONG ROD ASSY KLC-000007...
  • Page 51 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY DZW-0419-01-04-13-0 LEVER ZSP-0466-01-00-00-0 DRIVE SYSTEM ASSY OBD-0466-02-00-00-0 CONTROLLER HOUSING ASSY PNL-0466-02-02-00-1 CONTROL PANEL ASSY ZSP-0466-03-00-00-1 CROSS SLIDE ASSY PLY-0466-05-00-00-0 TORCH HOLDER PLATE ASSY PRW-0466-06-00-01-0 RIGHT GUIDE ARM ASSY Li’l Runner (HS) Operator’s Manual...
  • Page 52 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY WSP-0466-07-00-00-0 SLIDE BRACKET RKJ-0466-08-00-00-0 CARRYING HANDLE OSL-0466-09-00-00-0 WHEEL GUARD SRB-0466-10-00-00-0 GUIDE ARM SCREW GLK-0466-12-00-00-0 LEVER HOLDER KUL-0466-13-00-00-0 LEVER BALL PRS-000266 SEAL O-RING 173x3 PDK-000017 ROUND WASHER 5.3 PDK-000021 ROUND WASHER 6.4 WKR-000029 HEX SOCKET SET SCREW WITH FLAT POINT M6x6 WKR-000136...
  • Page 53 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY PDK-000108 ROUND WASHER 4.3 PDK-000164 ROUND WASHER 12x18x1 PDK-000178 ROUND WASHER 12x18x0.2 PDK-000060 EXTERNAL TOOTH LOCK WASHER 4.3 TLJ-000088 BB FLANGED SELF-LUBRICATING SLEEVE WKR-000434 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x20 SRB-000381 HEX SOCKET ULTRA LOW HEAD CAP SCREW M5x12 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12...

  • Page 54: 5-230 V Hs Exploded Views And Parts List

    SM-WC-LR Li’l Runner (HS) 11. 115–230 V HS EXPLODED VIEWS AND PARTS LIST ITEM PART NUMBER DESCRIPTION Q-TY PWD-0466-18-00-00-0 POWER CORD 230V (CEE) PWD-0466-16-00-00-0 POWER CORD 120V (USA) KLC-000007 4 MM HEX WRENCH KBL-0466-17-00-00-0 START-STOP ARC IGNITION CABLE 6.5 M (20 FT) UCW-0466-22-00-00-0 LONG ROD TORCH HOLDER WITH CLIP ASSY WLK-0466-04-10-00-0...
  • Page 55 SM-WC-LR Li’l Runner (HS) 33 31 ITEM PART NUMBER DESCRIPTION Q-TY DZW-0419-01-04-13-0 LEVER USZ-0466-02-02-03-0 PANEL COVER PLATE SEAL ZSP-0466-03-00-00-1 CROSS SLIDE ASSY PLY-0466-05-00-00-0 TORCH HOLDER PLATE ASSY WSP-0466-07-00-00-0 SLIDE BRACKET RKJ-0466-08-00-00-0 CARRYING HANDLE GLK-0466-12-00-00-0 LEVER HOLDER Li’l Runner (HS) Operator’s Manual...
  • Page 56 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY KUL-0466-13-00-00-0 LEVER BALL PNL-0528-02-02-00-0 CONTROL PANEL ASSY OBD-0466-02-00-00-0 CONTROLLER HOUSING ASSY PRW-0466-06-00-01-0 RIGHT GUIDE ARM ASSY OSL-0466-09-00-00-0 WHEEL GUARD SRB-0466-10-00-00-0 GUIDE ARM SCREW ZSP-0528-01-00-00-0 DRIVE SYSTEM ASSY PRS-000266 SEAL O-RING 175x3 WKR-000136 HEX SOCKET COUNTERSUNK HEAD SCREW M5x16 WKR-000091...
  • Page 57 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY WKR-000434 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x20 SRB-000381 HEX SOCKET ULTRA LOW HEAD CAP SCREW M5x12 SRB-000082 HEX SOCKET HEAD CAP SCREW M5x14 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12 WPS-000027 WOODRUFF KEY 3x5x13 MTR-0528-01-06-10-0 GEAR-MOTOR ASSY OSL-000036...

  • Page 58: Exploded Views And Parts List

    SM-WC-LR Li’l Runner (HS) 12. 42 V EXPLODED VIEWS AND PARTS LIST ITEM PART NUMBER DESCRIPTION Q-TY KBL-0466-17-00-00-0 START-STOP ARC IGNITION CABLE 6.5 M (20 FT) PWD-0621-03-00-00-0 POWER CORD 42V UCW-0466-22-00-00-0 LONG ROD TORCH HOLDER WITH CLIP ASSY WLK-0466-04-10-00-0 LONG ROD ASSY KLC-000007 4 MM HEX WRENCH TLJ-0419-04-02-03-0...
  • Page 59 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY DZW-0419-01-04-13-0 LEVER ZSP-0466-01-00-00-0 DRIVE SYSTEM ASSY OBD-0621-01-00-00-0 CONTROLLER HOUSING ASSY 42V PNL-0466-02-02-00-1 CONTROL PANEL ASSY ZSP-0466-03-00-00-1 CROSS SLIDE ASSY PLY-0466-05-00-00-0 TORCH HOLDER PLATE ASSY PRW-0466-06-00-01-0 RIGHT GUIDE ARM ASSY WSP-0466-07-00-00-0 SLIDE BRACKET Li’l Runner (HS) Operator’s Manual...
  • Page 60 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY RKJ-0466-08-00-00-0 CARRYING HANDLE OSL-0466-09-00-00-0 WHEEL GUARD SRB-0466-10-00-00-0 GUIDE ARM SCREW GLK-0466-12-00-00-0 LEVER HOLDER KUL-0466-13-00-00-0 LEVER BALL PRS-000266 SEAL O-RING 173x3 PDK-000017 ROUND WASHER 5.3 PDK-000021 ROUND WASHER 6.4 WKR-000029 HEX SOCKET SET SCREW WITH FLAT POINT M6x6 WKR-000136 HEX SOCKET COUNTERSUNK HEAD SCREW M5x16 WKR-000092...
  • Page 61 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY TLJ-000088 BB FLANGED SELF-LUBRICATING SLEEVE WKR-000434 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x20 SRB-000381 HEX SOCKET ULTRA LOW HEAD CAP SCREW M5x12 SRB-000078 HEX SOCKET HEAD CAP SCREW M5x12 WPS-000027 WOODRUFF KEY 3x5x13 PRS-000018 INTERNAL RETAINING RING 28w LOZ-000038...

  • Page 62: Hs Exploded Views And Parts List

    SM-WC-LR Li’l Runner (HS) 13. 42 V HS EXPLODED VIEWS AND PARTS LIST ITEM PART NUMBER DESCRIPTION Q-TY PWD-0621-03-00-00-0 POWER CORD 42V KLC-000007 4 MM HEX WRENCH KBL-0466-17-00-00-0 START-STOP ARC IGNITION CABLE 6.5 M (20 FT) UCW-0466-22-00-00-0 LONG ROD TORCH HOLDER WITH CLIP ASSY WLK-0466-04-10-00-0 LONG ROD ASSY ZCS-0476-06-01-00-0...
  • Page 63 SM-WC-LR Li’l Runner (HS) 33 31 Li’l Runner (HS) Operator’s Manual...
  • Page 64 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY DZW-0419-01-04-13-0 LEVER USZ-0466-02-02-03-0 PANEL COVER PLATE SEAL ZSP-0466-03-00-00-1 CROSS SLIDE ASSY PLY-0466-05-00-00-0 TORCH HOLDER PLATE ASSY WSP-0466-07-00-00-0 SLIDE BRACKET RKJ-0466-08-00-00-0 CARRYING HANDLE GLK-0466-12-00-00-0 LEVER HOLDER KUL-0466-13-00-00-0 LEVER BALL PNL-0528-02-02-00-0 CONTROL PANEL ASSY OBD-0621-01-00-00-0 CONTROLLER HOUSING 42V ASSY PRW-0466-06-00-01-0...
  • Page 65 SM-WC-LR Li’l Runner (HS) ITEM PART NUMBER DESCRIPTION Q-TY PDK-000164 SPACER WASHER 12x18x1 PDK-000166 EXTERNAL TOOTH LOCK WASHER 4.3 SRB-000074 HEX SOCKET HEAD CAP SCREW M4x8 TLJ-000088 BB FLANGED SELF-LUBRICATING SLEEVE WKR-000434 CROSS RECESSED COUNTERSUNK HEAD SCREW M4x20 SRB-000381 HEX SOCKET ULTRA LOW HEAD CAP SCREW M5x12 SRB-000082 HEX SOCKET HEAD CAP SCREW M5x14 SRB-000078...

  • Page 66: Declaration Of Conformity

    SM-WC-LR Li’l Runner (HS) 14. DECLARATION OF CONFORMITY Declaration of Conformity PROMOTECH sp. z o.o. ul. Elewatorska 23/1 15-620 Białystok Poland We declare with full responsibility that: Li’l Runner (HS) Welding Carriage is manufactured in accordance with the following standards: •...

  • Page 67: Warranty Card

    SM-WC-LR Li’l Runner (HS) 15. WARRANTY CARD WARRANTY CARD No..................in the name of Manufacturer warrants the Li’l Runner (HS) Welding Carriage to be free of defects in material and workman- ship under normal use for a period of 12 months from the date of sale. This warranty does not cover wheels as well as damage or wear that arise from misuse, accident, tempering, or any other causes not related to defects in workman- ship or material.
