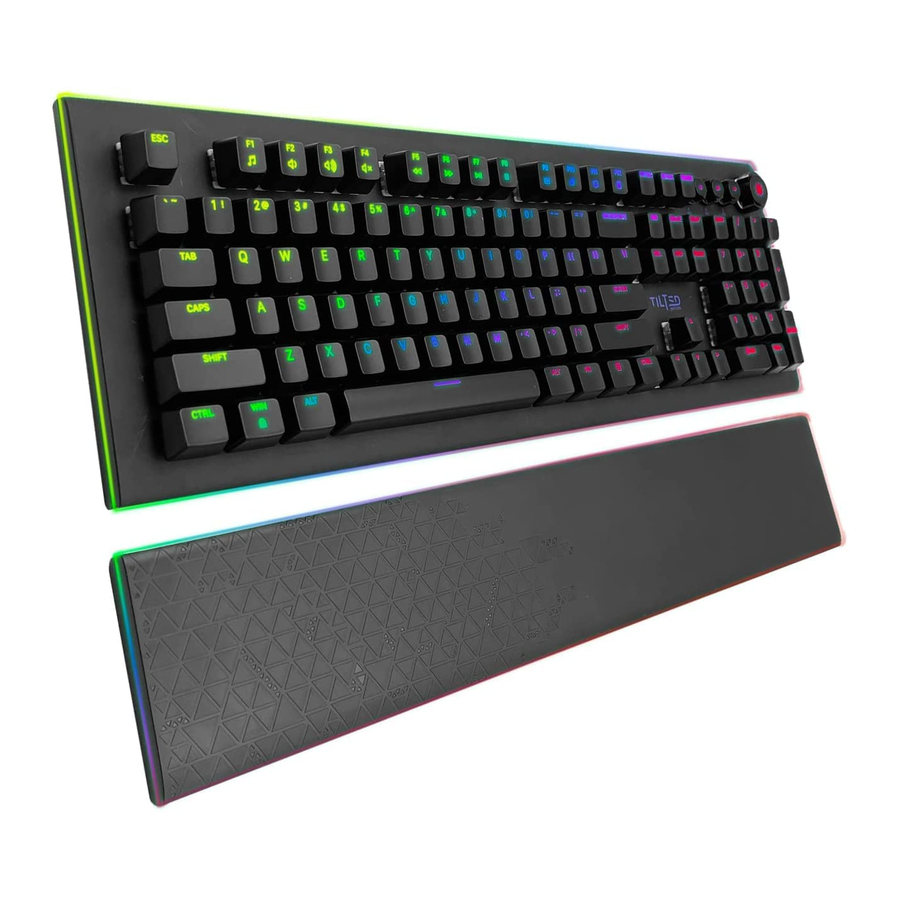

Tilted Nation TNVOID - RGB Mechanical Gaming Manual

Important Notes

System requirements Windows 7, 8, 10
PC Software can also be downloaded for free at www.tiltednation.com

TNVOID Keyboard Software

The keyboard software will give you full control of your Tilted Nation gaming keyboard. Once installed you will be able to effortlessly make changes to RGB settings, create custom profiles so that you can tailor the keyboards performance and buttons to specific games, create custom macros (combination keys) to help you gain advantage over your opponents and much more. The software can be downloaded for free at www.tiltednation.com

Package Contents

TNVOID
Height adjustment rings
Keycap puller
Palm rest
User's Manual

*PC Software can be downloaded for free at www.tiltednation.com ;

Hardware Basics

F-Row shortcuts
Braided USB cable (5.5ft)
RGB/Media control knobs
LED's (Num lock, Caps lock, Win lock)
Win lock
FN key (for F-row shortcuts)
File/Folder options
Detachable palm rest
Side trim RGB ring
Height adjustment legs

INSTALLATION INSTRUCTIONS

Connect the keyboard to any available USB A port on your computer and attaché the palm rest to the keyboard by simply sliding the palm rest pins into the pin slots located at the bottom of the keyboard. The TNVOID is Plug-N-Play and will be ready to use after the driver is automatically installed by Windows.
INSTALLATION

RGB & MEDIA CONTROL KNOBS

The top corner RGB/Media knobs serve as two functions:

RGB control (default)
Media control

RGB & MEDIA CONTROL KNOBS

*Press and hold the main button for 3-4 seconds to switch the knob controls from RGB to Media control at anytime. You can also download our free PC software to effortlessly make changes to the keyboards RGB effect.

RGB Mode

Here is a breakdown of what the control knobs do when in RGB mode.

warning Note: When turning the knobs (left and right) to adjust speed, brightness, volume etc... The 3 board LED's located by the navigation arrows will flash once a knob has reached its maximum turning value.

Knob	Action	Function
Main	Press & Release	Cycles through all the different preset RGB modes.
	Press & Hold	Switches the knobs to media control.
	Turn (left/right)	Increase/Decrease the brightness level.
1 Keycap RGB	Press & Release	Cycles through all the different color options that are available for the current RGB mode.
	Press & Hold	No action.
	Turn (left/right)	Increase/Decrease the RGB speed.
2 REC	Press & Release	Switches the keyboard to custom select RGB mode which then lets you select and record your own static RGB layout.
	Press & Hold	Puts the keyboard in "RGB record" mode. Please refer to the "Recording a static layout" section below for steps on how to record your own layout.
	Turn (left/right)	Switches between the 5 different recorded layouts.
3 Side RGB	Press & Release	Cycles through all the different color options that are available for the current RGB mode.
	Press & Hold	No action.
	Turn (left/right)	Increase/Decrease the RGB speed.

Recording a static layout

To record your own personalized "static RGB" layout please do the following:

Press and release the REC (2) knob.
Now press and hold the REC knob until the caps lock, num lock and win lock led's start to flash. Please note that keyboards typing function will be disabled while in record mode.
Press each key to cycle through the 8 different options. Each key is controlled independently so you will need to repeat the color option for each key.
Once you are done, press the REC knob to save the current pattern. Note: You can record up to 5 different static layouts. Once recorded, you can switch between them all by simply turning the REC knob.

MEDIA MODE

Here is a breakdown of what the control knobs do when in Media mode.

Knob	Action	Function
Main	Press & Release	Mute & Un-mute sound.
	Press & Hold	Switches the knobs to RGB control.
	Turn (left/right)	Increase/Decrease the volume level.
1	Press & Release	Previous song.
	Press & Hold	No media action.
	Turn (left/right)	No media action.
2	Press & Release	Play/pause the current song.
	Press & Hold	No media action.
	Turn (left/right)	No media action.
3	Press & Release	Next song.
	Press & Hold	No media action.
	Turn (left/right)	No media action.

F-ROW SHORTCUTS

The top number row (F1-F12) are coded with predefined productivity shortcuts. To utilize these shortcuts simply "press and hold" the FN key followed by the shortcut you would like to perform. Below is a table of what each shortcut does.

F-ROW SHORTCUTS

FN+	Shortcut description
ESC	Resets the keyboard to its factory default settings. To perform this action simply press & hold the FN Key and ESC key simultaneously until the keyboard's RGB starts to flash.
F1	Launches your default media player.
F2	Decreases your computers volume.
F3	Increases your computers volume.
F4	Mutes your computers audio.
F5	Previous track.
F6	Next track.
F7	Play/Pause.
F8	Stop music.
F9	Opens windows email program.
F10	Launches your default web browser.
F11	Launches This PC / My computer.
F12	Launches the windows calculator

Technical Support

E-Mail: techsupport@tiltednation.com
Phone: (909) 230-6778
Tech support hours are from 8:30 AM to 5:30 PM Monday through Friday (Pacific Standard Time).

Safety Instructions

Please read the following carefully before using this Tilted Nation product. Incorrect use of this product may result in reduced performance, permanent damage and void warranty:

Do not place this product near a heat source.
Operating temperature of -5°C to 40°C. Storage temperature of -5°C to 40°C.
Do not place this product near moisture nor liquids.
Operate and store at humidity of 20% to 90% (non-condensing)
Do not place heavy objects on this product.
Do not drop this product.
Do not dispose this product in the garbage. Take it to your local recycling center.
