LN32D550K1FXZA

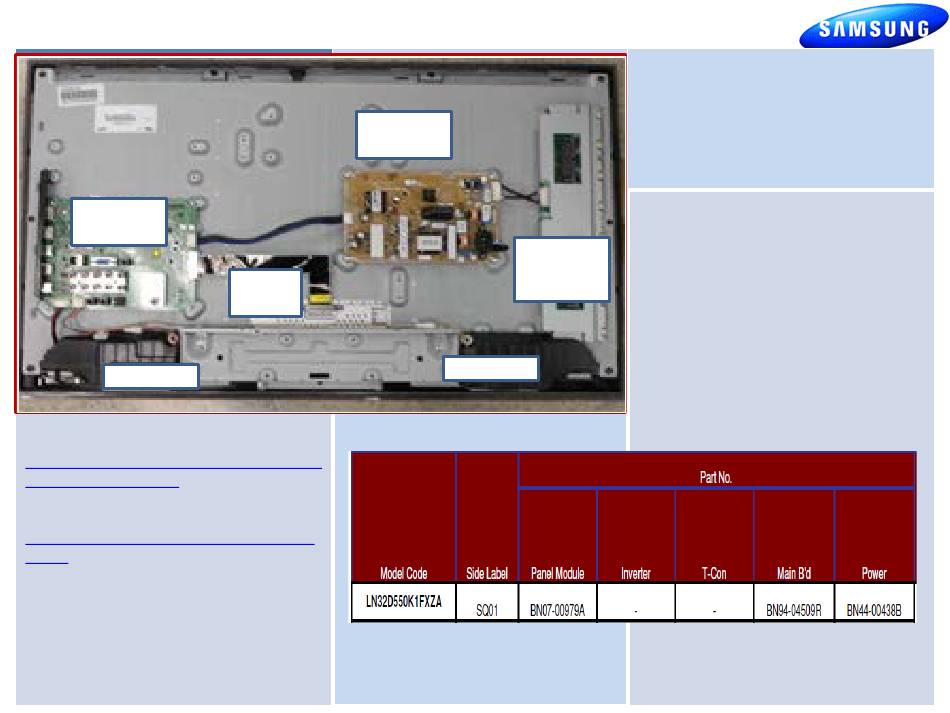

Insert Photo of TV Board Layout
MAIN
Include Board Assy names (as appearing in parts) and any
PCB
special labels/items (i.e. Plasma voltage label)
SPEAKER
HELP
: 1-888-751-4086; 1-866-894-0637 (FE)
GSPN
http://gspn3.samsungcsportal.com
PLUS ONE
http://my.plus1solutions.net/clientPortals/sa
msung
HOT TIPS
Power On Problems: (see page 2)
Video Problems: (see pages 3,4)
GSPN TIPS:
No Tips listed
Fast Track Troubleshooting Manual Rev -
POWER
PCB
LVDS
CABLE
T-CON PCB
(under shield)
DRIVER
BOARD
SPEAKER
1/11/12
SERVICE BULLETINS
2 011 LCD Option Byte Table
ASC20110624001.pdf
FIRMWARE
No current changes as of
12/29/11
Be sure to check for latest SW
updates.
PARTS (Board Assemblies)
Be sure to check for latest
parts updates.
