ScatterBox HDM160 Quick Start Manual

HDM160 HDMI Extender over CAT5E/6
The HDM160 transmitter and receiver can
extend an HDMI signal up to 50 metres on
CAT5E/6 cable. The units support up to
1080P and have a reverse IR control facility
to allow control of a DVR or other device
from one area to another. The HDM160 can
be wall mounted using lugs on the units and
only the TX unit needs powering using the
5vDC plug top transformer supplied.
Installation Instructions

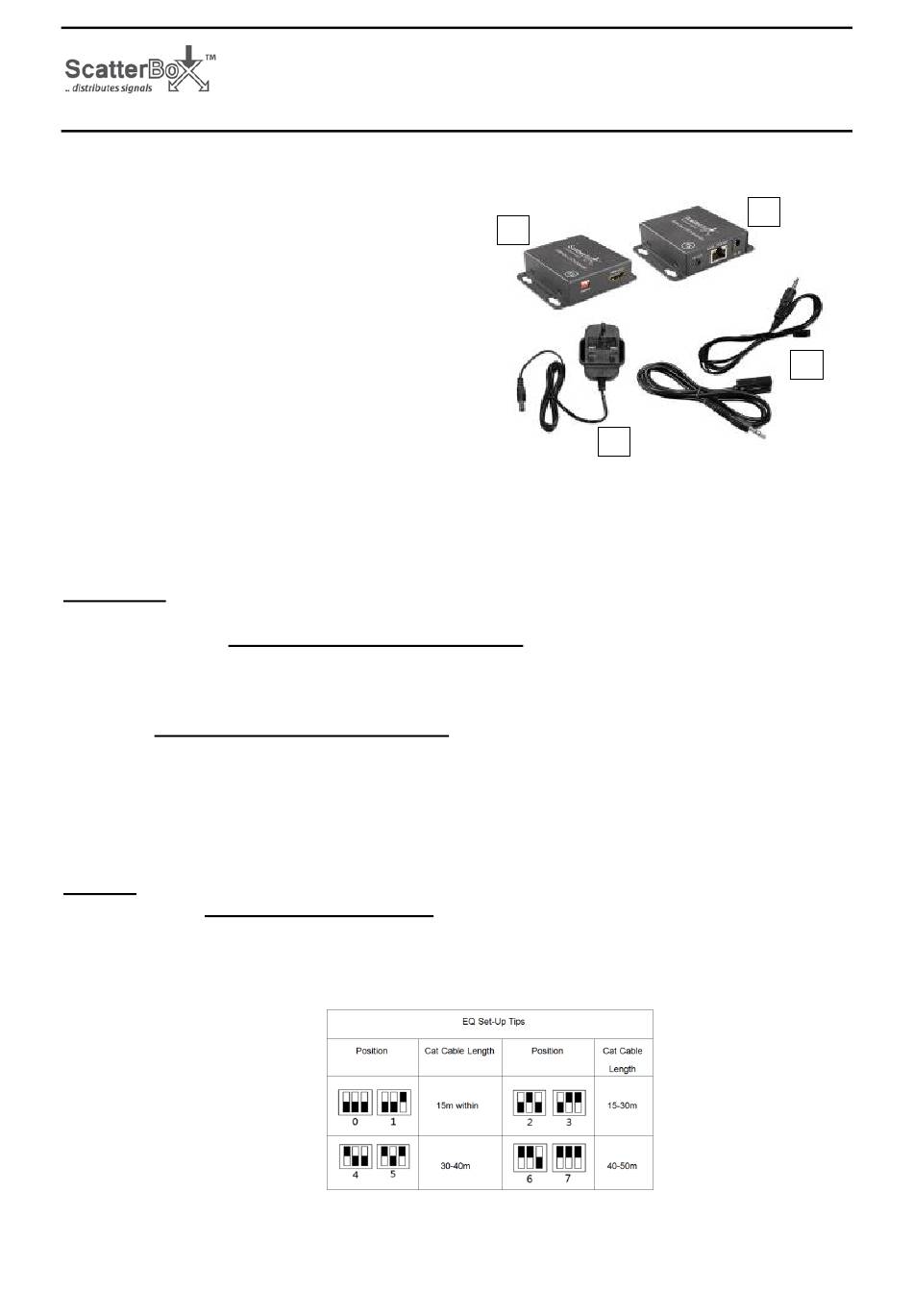

Parts Supplied:
1. HDMI Transmitter
Example for a CCTV system
Transmitter
1- Using a standard HDMI lead, connect the HDMI from the DVR's HDMI output to the HDMI
IN on the TX unit. HDMI cable length up to 10 metres.
2- If required plug in the IR transmitter leave and position it so it can 'see' the IR control of the
DVR. If a local monitor is required next to or near the DVR connect it to the HDMI Out on the
TX unit. HDMI cable length up to 10 metres.
3- Power up the TX part using the 5V DC PSU supplied, power is not required at the RX end.
4- Next connect the CAT5 or CAT6 using a standard RJ45 network plug. In the other location
at the end of the CAT5 or 6 run, connect it again using an RJ45 plug. Maximum run 50 metres.
Receiver
5- Use a standard HDMI lead up to 10 metres to connect the RX unit to the desired monitor. If
required connect the IR Receiver lead so that it can be controlled using your DVR's remote control.
6- Finally use the <Range> Equaliser dip switch settings to optimise your signal depending on the
CAT5 or 6 cable run length.
Email: support@kovert.com
HDMI Extender over CAT5E/6
Sends HDMI signal up to 50m
2. HDMI Receiver
Note the black box denotes the switch.
2
3
3. HDMI TX Power Supply 4. IR Leads
XHDM160
1
4
Last Revised 27/07/2018
