ScatterBox HDM220 Quick Start Manual

HDM220 / HDM216 / HDM217 - Quick Start Guide
The HDMI KVM extender allows for viewing of HDMI video and USB control from up to 120m away from
your DVR using your existing CAT5/6 set-up.
The HDMI Mules can be used for point-to-point access (1 cable between each unit and no switch) or in
cascade mode with additional monitors/receivers connected through a network switch, letting
multiple users have USB control from different receivers.

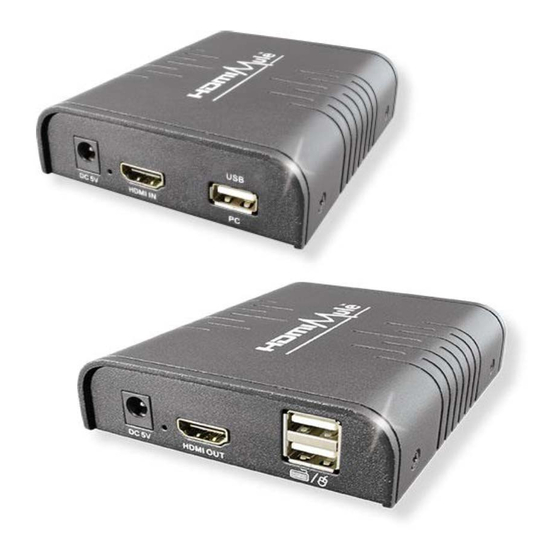

HDM217 - Transmitter

HDM216 - Receiver

Quick Start Guide - qHDM220
1
HDMI KVM Extender Over CAT5/IP 1080P
ScatterBox is a registered trademark of System Q Ltd
www.systemq.com/PDF
/manual/xHDM220.pdf

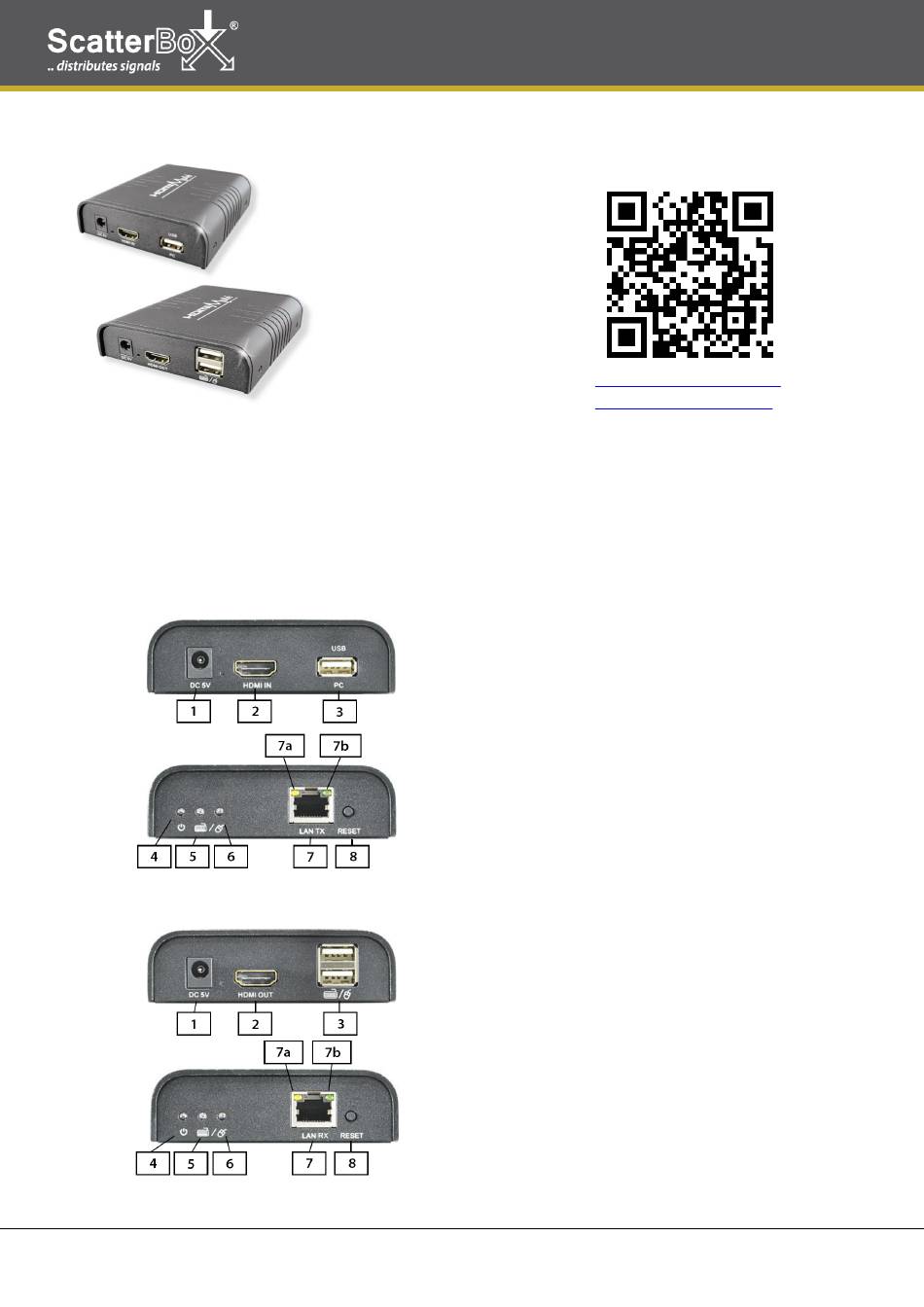

1. 5v DC power input
2. HDMI input port
3. USB output port
4. LED power indicator
5. LED keyboard indicator
6. LED mouse indicator
7. LAN RJ45 Socket
7a. data LED
7b. bandwidth / connection LED
8. Reset button
1. 5v DC power input
2. HDMI output port
3. USB dual input ports
4. LED power indicator
5. LED keyboard indicator
6. LED mouse indicator
7. LAN RJ45 Socket
7a. data LED
7b. bandwidth / connection LED
8. Reset button
