Summary of Contents for Adande Aircell Bora

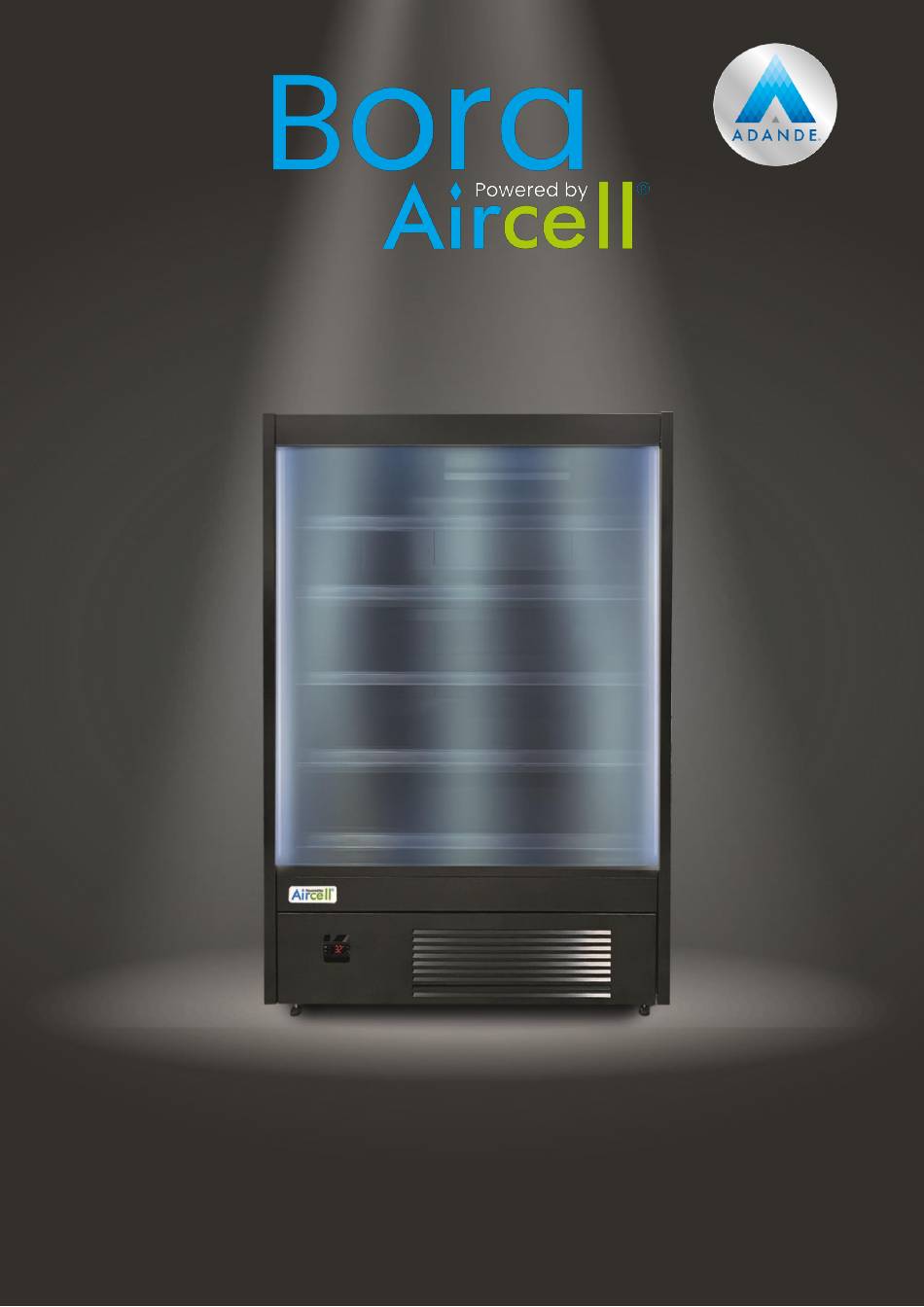

- Page 1 Operations Manual Original Instructions 2023...
-
Page 2: Table Of Contents
Contents Page Important Safety Instructions Electrical Operational Use & Cleaning General Safety Symbols Technical Specifications What is the Aircell ® How it Works Installation Instructions Pre – Operation Checks Electrical Connection Location and Stability Bora Temperature Controller ® The Display Temperature Controls Defrost Temperature Alarm Cabinet Maintenance... - Page 3 WARNING Follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this user guide before operating this appliance. Failing to do so can result in death, electric shock, fire or injury to persons Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance Warning: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have...
-
Page 4: Important Safety Instructions
The appliance should be regularly inspected and checked against the requirements of this Operations Manual. • Should a fault occur with the appliance immediately isolate/disconnect the incoming power supply. Only Adande trained engineers are permitted to service or carry out repairs to this appliance. • ADE- 2101 -E Page 4 of 19... -
Page 5: Safety Symbols
Safety Symbols The following safety symbols are used upon the appliance and throughout the appliance documentation. Meaning / Description Symbol Dangerous Voltage Electrical warning symbol To indicate hazards arising from High voltages. Protective Earth (Ground) To identify any terminal which is intended for connection to an external conductor protection... -
Page 6: Technical Specifications
Technical Specifications Specifications shown are for a 5 – shelf unit, also available as 6 – shelf unit. Dimensions 1960 mm (H) x 1330 mm (W) x 765 mm (D) Weight 265kg Shelf storage area / volume 1.69 m (4 shelves plus base) / 762 litres Operating temperature 1°C to 5°C at a maximum ambient of 25°C/60%RH CC3 (tested to EN ISO 23953) Electricity supply... -
Page 7: What Is The Aircell
Welcome to Adande ® What is Aircell ® Aircell is a fresh approach to the display of food to go. It utilises a unique and patented air flow ® management system that significantly reduces cold air spillage from the cabinet. -
Page 8: Installation Instructions
The installation of the cabinet must allow for a 100mm air gap at the rear of the cabinet, • failure to do so will result in cabinet malfunction which Adande will no be held liable for. The room should be dry and sufficiently ventilated to allow good airflow around the •... -
Page 9: Bora Temperature Controller
Bora Temperature Controller ® NOTE: The air probe on the Bora cabinet is set with a 4°C offset, this is because the air probe reads the return air temperature not the supply air. This allows the cabinet to run at maximum efficiency but still provide the customer with a sensible display read-out. -
Page 10: The Display Temperature Controls
If the temperature does not return to normal an engineer should be called. Contact the service department: Adande ® Tel: 01502 537 135 option 1 Email: service@adande.com ADE- 2101 -E Page 10 of 19... -
Page 11: Cabinet Maintenance
Cabinet Maintenance The Bora cabinet is virtually maintenance free other than periodic checking of the grilles, drain ® tray and cleaning of the shelves. DO NOT PRESSURE WASH APPLIANCE, THIS CAN DAMAGE THE ELECTRICAL COMPONENTS. It is recommended that general cleaning should be performed at minimum monthly or in accordance with local codes. -
Page 12: Checking The Honeycomb Air Grille
Checking the Honeycomb Air Grille The Bora cabinet uses a honeycomb air grille to evenly distribute the air flow. The honeycomb is ® located at the top of the cabinet and under each of the Aircell shelves (figure 4a) it is possible, ®... -
Page 13: Cleaning The Containment Channels
Cleaning the Containment Channel The return air grille (RAG) section of the Aircell shelves has been specifically designed to capture liquid spills and airborne dust, lint and pollen in the containment channel before entering the air ducts in the shelves. The containment channel has a cleanable wipe clean surface for the removal of dust, lint and liquid spills. -
Page 14: Cleaning The Discharge Air Grilles
Cleaning the Discharge Air Grilles The discharge air grilles (DAG) are located at the top of the cabinet and under each of the Aircell shelves ® (figure 5) the honeycomb grille has been designed to enable it to be removed to facilitate cleaning of the air channel underneath, this air channel is designed to deposit all airborne contaminants such as dust, lint and pollen before its circulated around the system. -
Page 15: Cleaning The Drain Tray
Figure 7a Figure 7b The cabinet can store any pre-packaged food product. Foodstuffs that give off acidic odours like vinegar, onions, etc. should be suitably sealed. Adande also recommends storage containers ® with liquid food products be stored with lids. -
Page 16: Night Blind
Night Blind The Bora cabinet is installed with a night blind as standard, closing the ® night blind when the cabinet is not in use, for example overnight will help reduce energy costs. When the night blind is pulled down it is securely held in position with a magnet positioned just above the bump rail see figure 6a. -
Page 17: Servicing & Warranty
Servicing & Warranty Service personnel must be suitably trained in refrigeration and experienced in servicing Adande ® products. Only use Adande Approved and Registered Service Engineers which can be supplied ® on request. Only original Adande parts supplied by the manufacturer should be used upon the cabinet. -
Page 18: Ec Declaration Of Conformity
Signed for and on behalf of: ADANDE REFRIGERATION ® Place of issue: Lowestoft Date of issue: 22/03/22 Name: Ian Wood Position: Managing Director Signature: The technical file for this machinery will be prepared on demand by Adande Refrigeration ADE- 2101 -E Page 18 of 19... -
Page 19: Appendix 1: Contact Details
NR33 7NL United Kingdom. Service Enquiries Telephone: +44 (0) 1502 537135 Mobile +44 (0) 7967 559652 Fax: +44 (0) 1502 533794 Email: service@adande.com Parts Enquiries Telephone: +44 (0) 1502 537135 Fax: +44 (0) 1502 533794 Email: spares@adande.com Sales Enquiries Telephone:...
