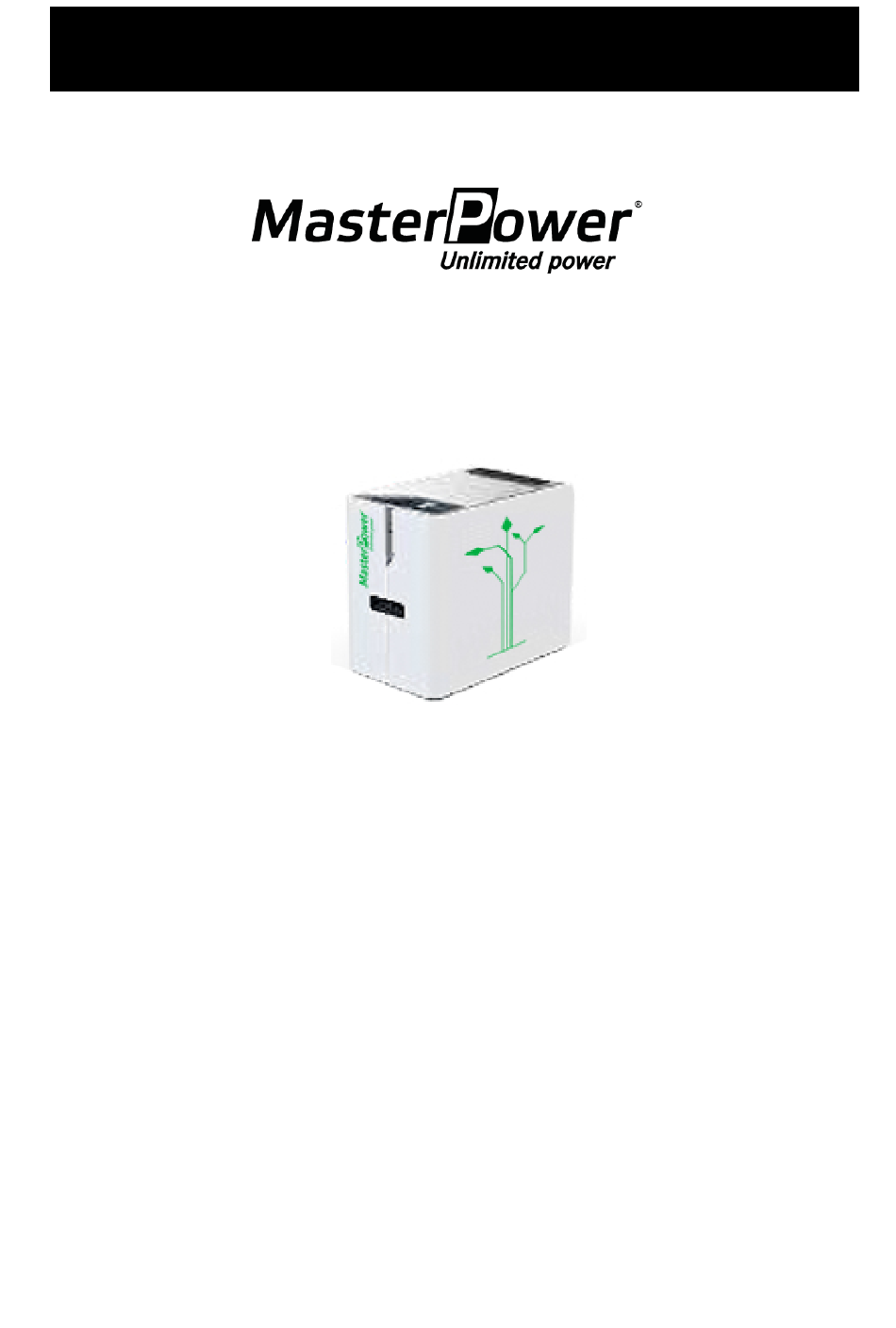

- Page 1 User Manual Portable Energy Bank 1.2KW/2.5KW Version: 1.0...
-
Page 2: Table Of Contents
Table Of Contents SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ............................2 Features ................................2 Packing Contents ............................. 3 Product Overview ............................. 3 INSTALLATION ............................4 AC Input/Output Connection ..........................4 PV Module Connection ............................ 4 OPERATION ..............................7 Battery BMS ON/OFF ............................7 Power ON/OFF .............................. -
Page 3: Safety Instructions
Thank you for purchasing this portable energy bank product. Please read this manual carefully before installations and operations. Keep this manual for future reference. 1. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions. Read and keep this manual for future reference. It is very important and necessary to read the user manual carefully before using the unit. -
Page 4: Introduction
2. INTRODUCTION This is a portable energy storage product designed with multi-function inverter/charger. It combining functions of inverter, solar charger and battery charger, USB output and BMS to offer uninterruptible power support with portable size. It can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. -
Page 5: Packing Contents
Packing Contents Before installation, please inspect the unit. Be sure that nothing inside the package is damaged during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any damage or lacking of some parts. Please keep the original package in a safe place for future use. You should have received the following items inside of package: The unit Manual... -
Page 6: Installation
3. INSTALLATION PV Module Connection CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter and PV modules. NOTE1: Please use 600VDC/30A circuit breaker. NOTE2: The overvoltage category of the PV input is II. WARNING: Because this inverter is non-isolated, only three types of PV modules are acceptable: single crystalline and poly crystalline with class A-rated and CIGS modules. - Page 7 Insert striped cable into male terminal and crimp male terminal as shown below. Insert assembled cable into male connector housing as shown below. Then, use spanner to screw pressure dome tightly to female connector and male connector as shown below. Step 4: Check the correctness of the polarity of connection cable on PV modules and PV input connectors.
- Page 8 AC Input Connection Follow below steps to plug in the input power cord (supplied in the package) to the wall outlet. The unit will automatically charge the connected internal battery pack even though the unit is off. Take supplied strap and fix it under the AC inlet Insert wire buckle through strap.
-
Page 9: Operation
4. OPERATION Power ON/OFF Press On/Off switch on the top of the case to turn on the unit. At this time, the unit will have AC output power. If only requires the USB port with DC output, you can turn off the inverter to save the power consumption and extend the backup time for the USB port. -
Page 10: Lcd Display Icons
LED Indicator LED Indicator Messages Solid On Output is powered by utility in Line mode. Green Flashing Output is powered by battery or PV in battery mode. Solid On Battery is fully charged. Green Flashing Battery is charging. Solid On Fault occurs in the inverter. - Page 11 Indicates battery SOC level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode and charging status in line mode. In AC mode, it will present battery charging status. Status Battery voltage LCD Display <25% SOC 4 bars will flash in turns. Bottom bar will be on and the other three Constant 25% ~ 50% SOC...
-
Page 12: Lcd Setting
LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Setting Programs: Program Description... - Page 13 Restart disable (default) Restart enable Auto restart when overload occurs Restart disable (default) Restart enable Auto restart when over temperature occurs 50Hz (default) 60Hz Output frequency 220V 230V (default) Output voltage 240V Maximum utility charging current 15A (default) Note: If setting value in program 02 is smaller than that in program in 11, the inverter will apply charging...
- Page 14 If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Solar first Solar energy will charge battery as first priority. Utility will charge battery only when solar energy is not available. Charger source priority: Solar and Utility (default) Solar energy and utility will charge battery at the same time.
-
Page 15: Display Setting
Display Setting The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable information is switched as following order in listed table. Selectable information LCD display Input Voltage=230V, output voltage=230V Input voltage/Output voltage (Default Display Screen) Input frequency=50Hz Input frequency PV voltage=260V... - Page 16 AC and PV charging current=15A PV charging current=15A Charging current AC charging current=15A AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=25.5V, output voltage=230V Battery voltage and output voltage...
- Page 17 Output frequency=50Hz Output frequency Load percent=70% Load percentage When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.
-
Page 18: Operating Mode Description
Battery voltage=25.5V, discharging current=1A Battery voltage/DC discharging current Main CPU version 00014.04 Main CPU version checking Secondary CPU version 00001.00 Secondary CPU version checking. Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Standby mode Note: No output is supplied by the... - Page 19 Charging by PV energy. No charging. Charging by utility and PV energy. Charging by utility. The unit will provide output power from the mains. It will Line Mode also charge the battery at line mode. If “solar first” is selected as output source priority and solar energy is not sufficient to provide the load, solar energy and the utility will provide the loads and charge the battery at the...
- Page 20 Operation mode Description LCD display If “solar first” is selected as output source priority and battery is not connected, solar energy and the utility will provide the loads. The unit will provide output power from the mains. It will Line Mode also charge the battery at Power from utility.
-
Page 21: Fault Reference Code
Fault Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature or NTC is not connected well. Battery voltage is too high Battery voltage is too low Output short circuited or over temperature is detected by internal converter components. -
Page 22: Clearance And Maintenance For Anti-Dust Kit
5. CLEARANCE AND MAINTENANCE FOR ANTI-DUST Overview Every unit is already installed with anti-dusk kit from factory. This kit keeps dusk from your product and increases product reliability in harsh environment. Clearance and Maintenance Step 1: Please loosen the screw in counterclockwise direction on two sides of the unit. Step 2: Then, dustproof case can be removed and taken out air filter foam as shown in below chart. - Page 23 2.5KW MODEL 1.2KW Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac± 7V (UPS); Low Loss Voltage 90Vac± 7V (Appliances) 180Vac± 7V (UPS); Low Loss Return Voltage 100Vac± 7V (Appliances) High Loss Voltage 280Vac± 7V High Loss Return Voltage 270Vac±...
- Page 24 Table 2 Inverter Mode Specifications 2.5KW MODEL 1.2KW Rated Output Power 1.2KVA/ 1.2KW 1.2KVA/ 1.2KW Pure Sine Wave Output Voltage Waveform 230Vac± 5% Output Voltage Regulation 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥130% load; 10s@105%~130% load 2* rated power for 5 seconds Surge Capacity <35W No Load Power Consumption...
- Page 25 Table 4 Charge Mode Specifications MODEL 1.2KW 2.5KW Utility Charging Mode AC Charging Current (Max) 30Amp (@V =230Vac) MPPT Solar Charging Mode Max. PV Array Power 2000W 3000W Nominal PV Voltage 240Vdc Start-up Voltage 70Vdc +/- 10Vdc PV Array MPPT Voltage Range 60~300Vdc 60~400Vdc Max.
-
Page 26: Trouble Shooting
7. TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do 1. Turn on the BMS on the rear The inverter can’t No any response 1, The BMS had not turn on; panel. turn on from the when press the main 2, The battery had been deep full 2.
