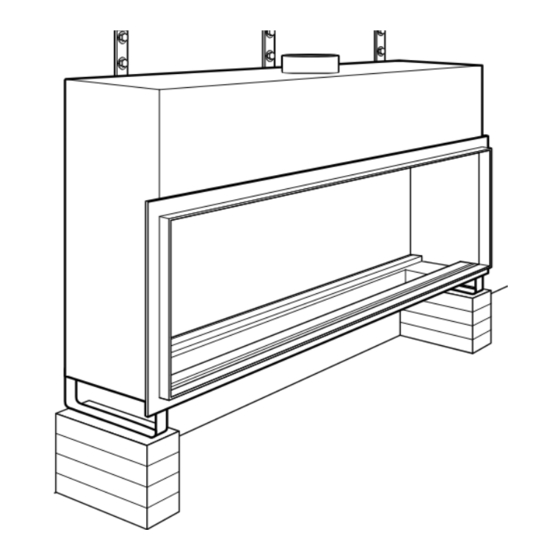

The Flame Manual Gap 120 Installation Instructions

Distribution:
• The Gap 120 is suited for wall and floor mounting. Please
ensure that the ground is stable, non-yielding, and level,
and attach the device solidly to the ground.
• Wall mounting is only permissible if the wall is strong
enough to carry the load. If sufficient load-bearing capacity
cannot be ensured, appropriate measures must be taken.
• The total weight of the Gap 120 is approx. 80 kg.
• The Gap 120 is a decorative fireplace for indoor use.
Not suitable for continuous operation.
• As per installation instructions, minimum distances to flam-
mable construction materials and objects must be maintained
at all times.
• Please follow the indicated instruction guide and manual as
well as the safety recommendations and warning notices!
• Please ensure that enclosed parts are installed correctly.
• National and regional regulations for the installation of
this device must be observed.
• Only install the device in an area that is protected against
cross ventilation.
General Installation Instructions
• Choose an appropriate, fireproof, and non-yielding surface
(no wooden walls, particle/chip board, wallpaper, etc.).
• Install the Gap 120 carefully and wear gloves (risk of injury).

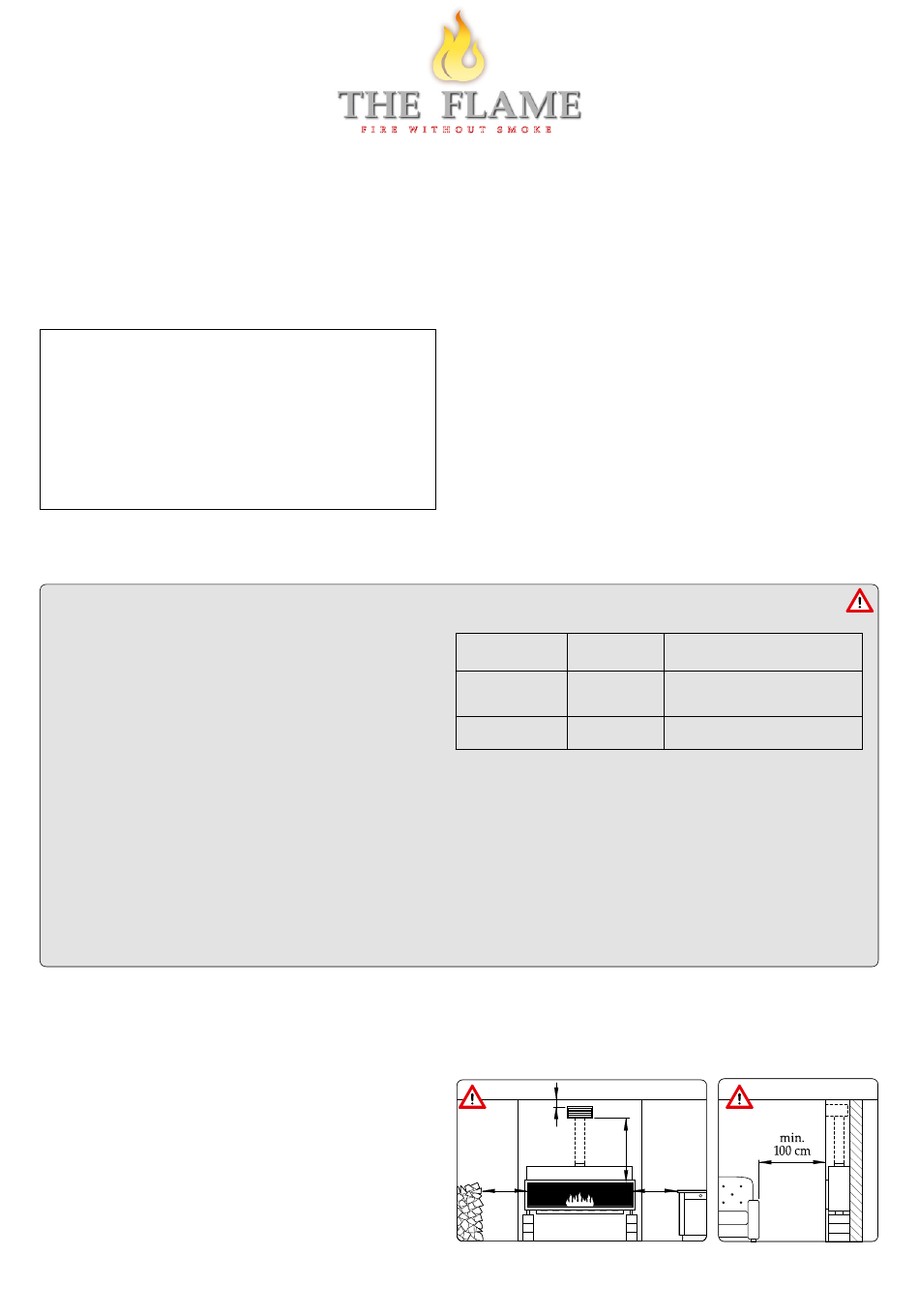

• Install the device with a minimum distance of 50 cm to flam-
mable construction parts at the sides, and 15 cm to flammable
construction parts at the top (distance measured from top
edge of exhaust unit). The Gap 120 can be installed with the
backside flush to a wall. A minimum clearance of 100 cm at
the front has to be ensured. The distances given above refer
to an un-encased device.
F I R E W I T H O U T
Manual Gap 120
• Viewable from front
• Locking glass doors
• Front air exhaust into room
• 1 band burner medium
General Information
Installation Instructions
S M O K E
Manufacturer:
THE FLAME · Rainer Biemann
Schalserstraße 41 · A-6200 Jenbach
www.theflame.at · info@theflame.at
THE FLAME 04-2018
• Minimum room volume Gap 120,
Air exhaust into room:
Minimum Air circu-
room volume m³ lation* n/h
82 m³ 0.5
41 m³ 1.0
*Approximate Values: • Tilted window, no shutters: Air circulation 0.3 ... 1.5
• Half opened window:
• Your Gap 120 fireplace has to be examined for obvious defects be-
fore every use (burner, safety shaft).
• Appropriate aeration levels must be maintained during opera-
tion.
• Simultaneous use of multiple devices is only permissible if the
fuel throughput of all devices combined does not exceed 0.5 l/h.
• The safety shaft has to be routinely examined for burn residue
and, if necessary, emptied.
• Only operate the device under supervision.
min.
15 cm
min. 120 cm
or 150 cm*
min.
50 cm
* GAP 3 sides visible (long - short - long)
Note
Usual air circulation rate of airtight
buildings with average aeration
habits of users.
Complete air exchange inside in-
stallation room within one hour.
Air circulation
min.
50 cm
5 ... 10
