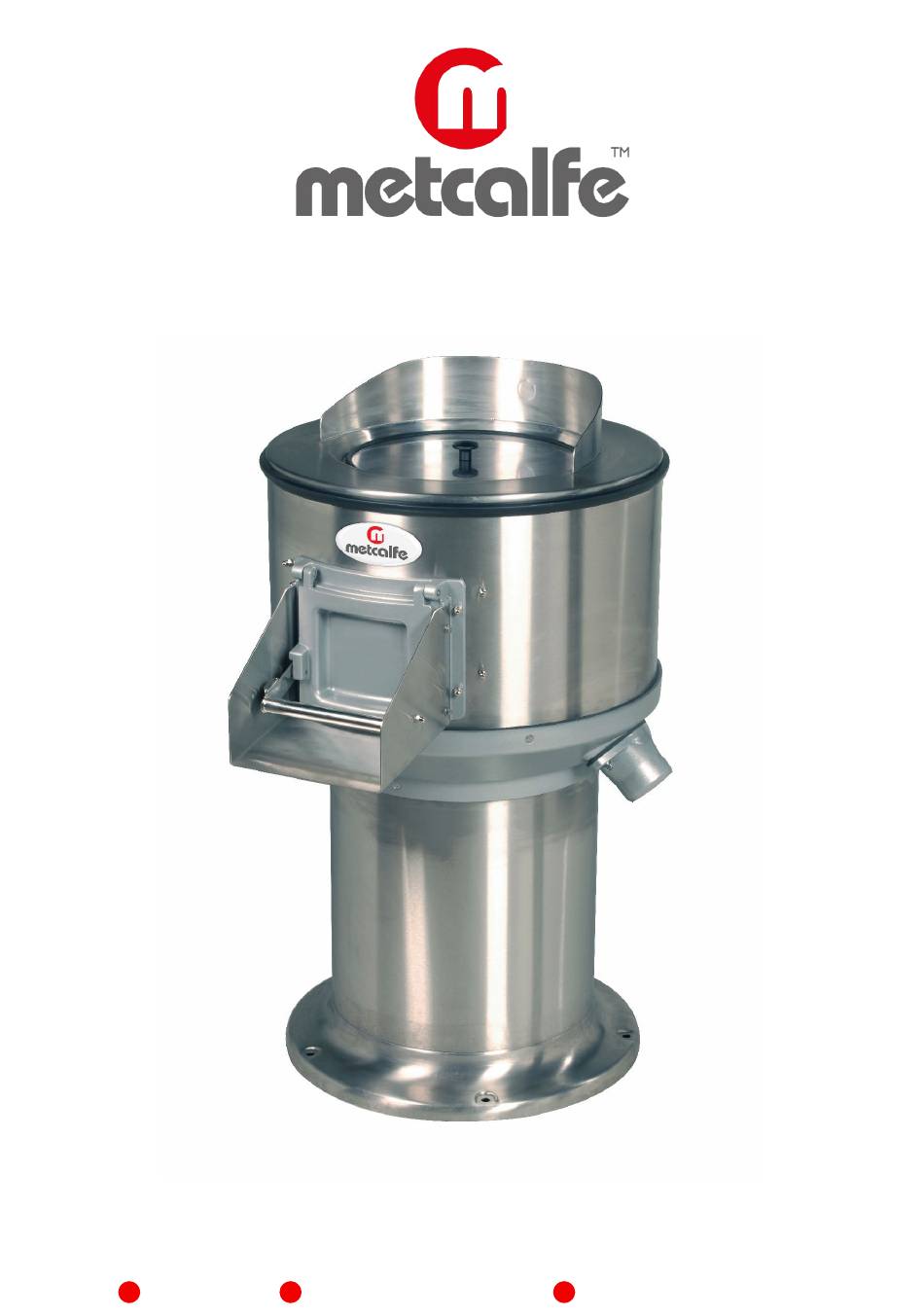

- Page 1 Metcalfe 56SS Potato Peeling Machine Installation & Operating Instruction Manual & Breakdown Drawings 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Peeler ....................Technical Data ……………………..…………………............. Installation ....................- Unpacking ………………………..............- Procedure …………………………………………………………………………………….. - Water Supply ……………………............. - Waste Outlet Connection ..............- Waste Ejector …………..............- Electricity Supply Connection …………………………………………………….. - Fitting Guarded Discharge Chute ………………………………………………… Commissioning & Operation …………............. -
Page 4: Your Peeler
Your Peeler Controls The peeler has a separate box for mounting on a wall bracket near the machine. -
Page 5: Technical Data
Metcalfe 56SS - 25kg/56lb Heavy Duty Pedestal Peeler The extremely efficient and robust 56SS Peeler is designed for regular high-volume use and enables up to 250kg of potatoes to be prepared every hour. Features • Featuring a large hopper opening with a robust lip, and simple to use wall mounted controls. To ensure operator safety the control unit also prevents automatic restart in the event of the power being cut. - Page 6 Product Code Guarded Discharge Chute 9P80 Waste Disposal Adaptor (WDA) 9P79 Material Content The Metcalfe 56SS Peelers contain the following materials: Metals Stainless steel, Mild steel (inc. plated), Aluminium and Copper Plastics and rubber Polycarbonate, Nylon, Neoprene Rubber Other Aluminium oxide, electrical components...
-
Page 7: Installation
Procedure The Metcalfe 56SS is supplied with a pedestal and is designed to be bolted to the floor. The control box is designed to be mounted on a wall bracket so that it is easily accessible once the machine is installed. -
Page 8: Water Supply
If required, secure with the hose clip supplied: Longer lengths of flexible hose are available from Metcalfe on request. The waste outlet also incorporates a 2" BSP female thread for connection to standard 54mm (2") waste pipe. -
Page 9: Waste Ejector
Waste Ejector The waste ejector is an optional fitting that dilutes the waste sludge to enable it to flow easily through the drains without fear of blockage. Waste Ejectors are not recommended in the follow circumstances: • A pipe run exceeding 15m between the machine and main drain •... -
Page 10: Electricity Supply Connection
A dedicated supply to the socket is recommended and it should be protected by a C or D class circuit breaker rated at 16A for the 56SS Peeler. Three phase machines should be connected to a 15A isolator providing at least 3mm separation in all poles. -
Page 11: Fitting Guarded Discharge Chute
Fitting Guarded Discharge Chute... -
Page 12: Commissioning & Operation
CLOCKWISE when viewed from above. The direction of rotation of single phase units is set at the factory. If it is not rotating in the correct direction, contact Metcalfe. To change the direction of rotation of three phase units, switch off the machine, isolate the supply and interchange any two phase wires. -
Page 13: Cleaning
Cleaning Instructions Daily cleaning should be considered mandatory for all equipment used in the preparation of food. Once your peeler has made contact with any food product, the entire peeler, including removable parts must be thoroughly cleaned. This process is to be repeated essentially at least once a day, or at the end of each operation period. -
Page 14: Maintenance
Maintenance Other than regular cleaning the 56SS requires no maintenance by the end user. It is recommended that the unit is serviced by a Metcalfe approved engineer at least once a year. The motor in the single phase units is controlled via an inverter. The following warnings must be observed before working on this unit. -
Page 15: Wiring Diagram - Single Phase Units
Wiring Diagram – Singe Phase Units... -
Page 16: Wiring Diagram - Three Phase Units
Wiring Diagram – Three Phase Units... -
Page 17: Parts Diagram & List
Parts Diagram... - Page 18 Parts List Item Part Number Description S58/590 Low Pedestal E58/591 High Pedestal D18/050 Screw M6 x 16 CSK SS D20/038 M5 Full Nut SS D25/004 M5 Shakeproof Washer SS G60/369 Earth Wire, Motor to Pedestal G40/216 Motorgearbox 0.75kW G60/372 Motor cable (1ph) G60/373 Motor cable (3ph) G86/003...
-
Page 19: 1Ph Control Box Parts Diagram & List
Single Phase Control Box Spare Parts List Item Part Number Description E58/096 Mounting Bracket E58/097 Wall Bracket (not shown) G76/031 M2 Control Box D21/052 Screw M6 x 16 Pan SS A08/641 Decal E58/116 Control Box Plate G30/431 Inverter 0.75kW (Schneider) D25/033 M4 Shakeproof Washer SS D21/038... -
Page 20: 3Ph Control Box Parts Diagram & List
Three Phase Control Box Spare Parts List Item Part Number Description E58/117 Mounting Bracket E58/119 Wall Bracket G76/041 M1 Control Box (inc lid) D21/097 Screw M4 x 8 Pan SS E58/118 Control Box Plate A10/224 Cable Gland Nut G80/029 Cable Gland D25/004 M5 Shakeproof Washer D20/038... -
Page 21: Spare Parts & Service Contact Details
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located at the back of the cylinder near the supply cable inlet. -
Page 22: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers and EC20 chipper are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. - Page 24 Some other products in the Metcalfe portfolio: NS Slicers Chippers Ceado Roband 10/2023 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
