Payne PG92ESAA Product Data

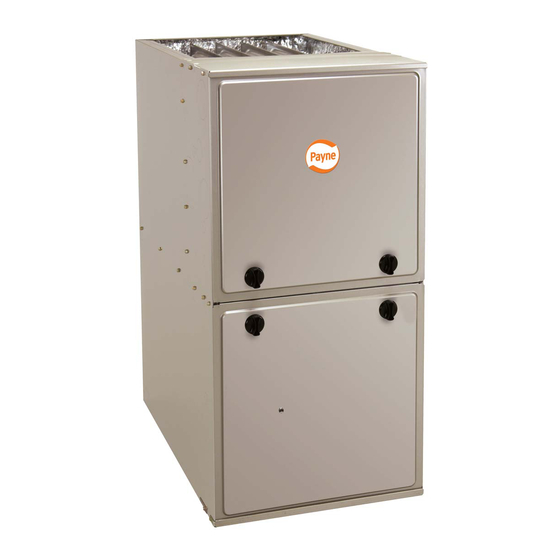

The PG92ESA Multipoise Condensing Gas Furnace features
single- -stage gas valve and ECM blower motor. This furnace
provides electrical efficiency with a fixed- -speeds, constant torque
(FCT) ECM blower motor.
Efficiency (AFUE) of 92.1%, the single- -stage gas furnace provides
added savings over standard, non - -condensing gas furnaces. This
Gas Furnace features 4- -way multipoise installation flexibility, and
is available in eight model sizes. The PG92ESA can be vented for
direct vent/two- -pipe, ventilated combustion air, or single- -pipe
applications. Low NOx units are designed for California
installations and meet 40 ng/J NOx emissions. Can be installed in
air quality management districts with a 40 ng/J NOx emissions
requirement. All sizes are design certified in Canada. All sizes are
design certified for use in Manufactured Housing (Mobile Home)
applications when used with factory- -approved MH accessory kit.
Use of the AHRI Certified TM
Mark indicates a manufacturer's
participation in the program. For
verification of certification for in-
dividual products,
www.ahridirectory.org .
Product Data
A11300
With an Annual Fuel Utilization
go to
SINGLE- -STAGE, 35- -IN. (889 MM) TALL
CONDENSING GAS FURNACE
PERFORMANCE
S Fixed- -speeds, constant torque (FCT) ECM blower motor for
electrically efficient operation all year long in heating, cooling
and continuous fan operation
S Single- -speed inducer motor, and single- -stage gas valve
S Silicon Nitride Hot Surface Igniter.
S Adjustable blower speed for heating and cooling.
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
INSTALLATION FLEXIBILITY
S 4- -way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow for 12 different venting
options, including optional venting through- -the- -cabinet
downflow venting capability.
S Factory- -configured ready for upflow applications.
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
APPLICATIONS
S Approved for Manufactured Housing/Mobile Home applications
with MH accessory kit.
S Propane convertible with gas conversion accessory.
CERTIFICATIONS
S All sizes meet ENERGY STARR South regional standards.
S Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air
leakage less than 1.4% at 0.5 in. W.C. when tested in accordance
with ASHRAE standard 193
S All sizes meet 40 ng/J NOx emissions. Can be installed in air
quality management districts with a 40 ng/J NOx emissions
requirement
1
PG92ESAA
.
