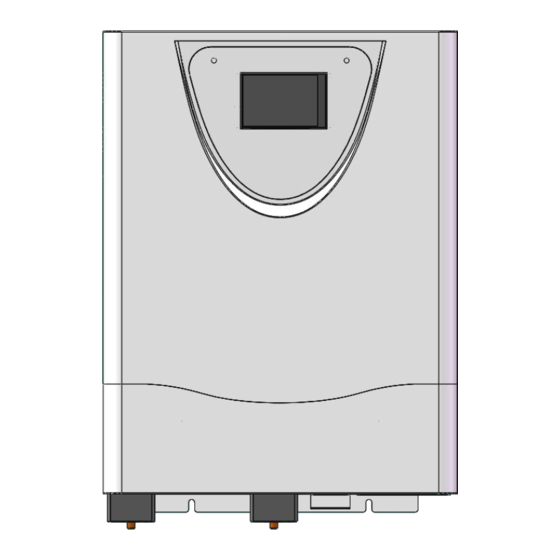

- Page 1 XTLFH SERIES Wall-mounted solar inverter Instruction for use...
- Page 2 Dear customers: Thanks for choosing our product. Before using the product, please read the manual carefully. The manual contains important information and suggestions including installation, use, troubleshooting, etc. Please keep this manual properly! Catalogue： 1. Product features 2. The types of inverter application system 3.
-
Page 3: Security Considerations
1. Product features (1) Pure sine wave ac output, complementary to the mains, automatic cutting, mains charging; (2)CPU intelligent control technology, high precision SMT processing technology, product performance excellence ; (3) Utility mode/Eco mode/Battery mode optional (Flexible application); (4) Charging type/Battery type /Lithium Battery optional (Convenient utility) (5) Smart Fan Control (Safe reliable);... - Page 4 accessories, including the damaged in transit. If damage or missing parts are found, please do not turn on the machine and inform the carrier and dealer. 4. Installation and storage precautions (1) Input line and output line to distinguish, prevent the wrong. (2) Installation of equipment should be a professional operation, or performed by the local distributor to assist.
- Page 5 10------The output terminal (AC220V) L wire N zero line 11------Ground (GND) terminal 6. Operation declaration Solar Inverter controller display Panel LCD display graphic description: LCD display and the （1） function key operation interface, it can display the working state of the equipment, such as: input/output voltage, frequency, the utility model, inverter, battery capacity, load capacity, alerts, etc.
- Page 8 （2）Working mode descript icon Working mode Running status Alternating Current (AC) priority mode, the device starts, the mains input under normal operation of equipment through the mains bypass regulator to supply power to the load, at the Alternating same time to battery power; When there is too high/low/mains Current (AC) AC PRIORITY the anomalies such as serious distortion, equipment battery...
- Page 9 (3) Voice alarm instructions Buzzer open Buzzer sing three prompt equipment’s running under a state of Normal operation of equipment batteries or mains. Buzzer call 2 times per second, suggesting high pressure, automatically disconnect High battery voltage alarm the output. Low battery voltage alarm Buzzer call 2 times per second, suggesting low pressure, automatically disconnect the output.
- Page 10 The fault The solution The possible reasons phenomenon Cannot access an Resettable fuse pop-up Re-press the pop-up part alternating current Ensure that the battery is fully Insufficient battery charge charged Load time reduced Continuous heavy load Disconnect non-critical loads Battery aging, life shortened Please contact customer service The device cannot be Poor contact of AC input wire or...
- Page 11 9. Technical parameter Rated Power 1000W~3000W 3000W~6000W DC 12V/24V DC 24V DC 48V R ated Voltage Charging Voltage 13.5V/27.5V（±2％） 27.5V（±2％） 54V（±2％） Battery Charging Current 20A – 60A Voltage Range 165 – 260 VAC 40– 65 Hz F requency controller type MPPT Input Max.S olar Panel...
