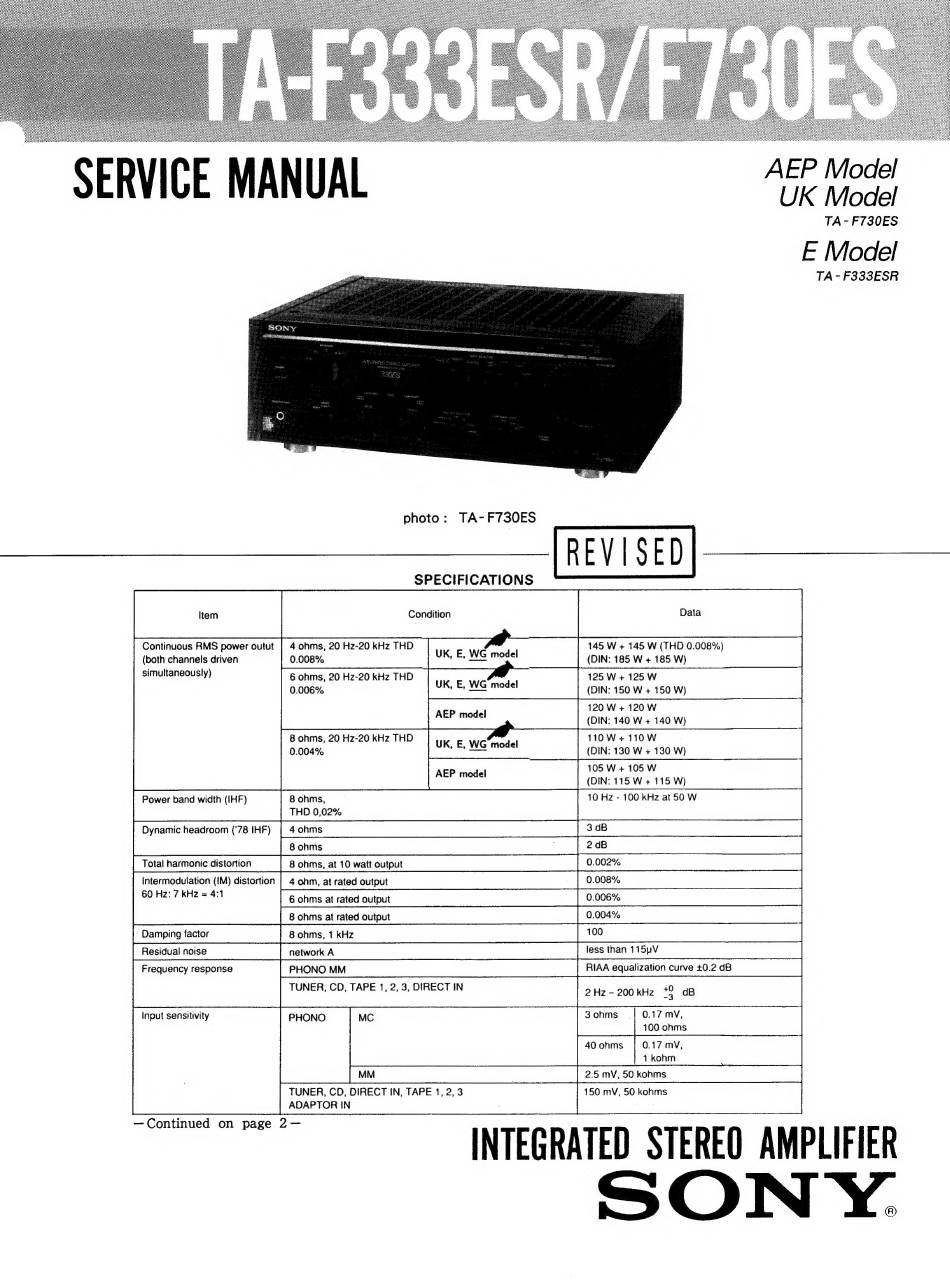

Sony TA-F333ESR Service Manual

Continuous RMS power outut
(both channels driven
simultaneously)
Power band width (IHF)
Dynamic headroom ('78 IHF)
photo: TA-F730ES
SPECIFICATIONS
Condition
4 ohms, 20 Hz-20 kHz THD
0.008%
6 ohms, 20 Hz-20 kHz THD
0.006%
UK, E, WG model
UK, E, WG model
AEP model
8 ohms, 20 Hz-20 kHz THD
AEP model
8 ohms,
THD 0,02%
8 ohms
REVISED
Data
145 W + 145 W (THD 0.008%)
(DIN: 185 W + 185 W)
125 W + 125 W
(DIN: 150 W + 150 W)
120 W + 120 W
(DIN: 140 W + 140 W)
110W+ 110 W
(DIN: 130 W + 130 W)
105 W + 105 W
(DIN: 115 W + 115 W)
10 Hz - 100 kHz at 50 W
2 dB
Total harmonic distortion 8 ohms, at 10 watt output 0.002%
Intermodulation (1M) distortion
60 Hz: 7 kHz = 4:1
Damping factor
Residual noise
Frequency response
Input sensitivity
—Continued on page
4 ohm, at rated output
6 ohms at rated output
0.008%
0.006%
TUNER, CD, TAPE 1, 2, 3, DIRECT IN
TUNER, CD, DIRECT IN, TAPE 1, 2,3
ADAPTOR IN
2-
2Hz-200kHz *3 dB
0.17 mV,
100 ohms
2.5 mV, 50 kohms
150 mV, 50 kohms
AEP Model
UK Model
TA -F730ES
E Model
TA -F333ESR
INTEGRATED STEREO AMPLIFIER
