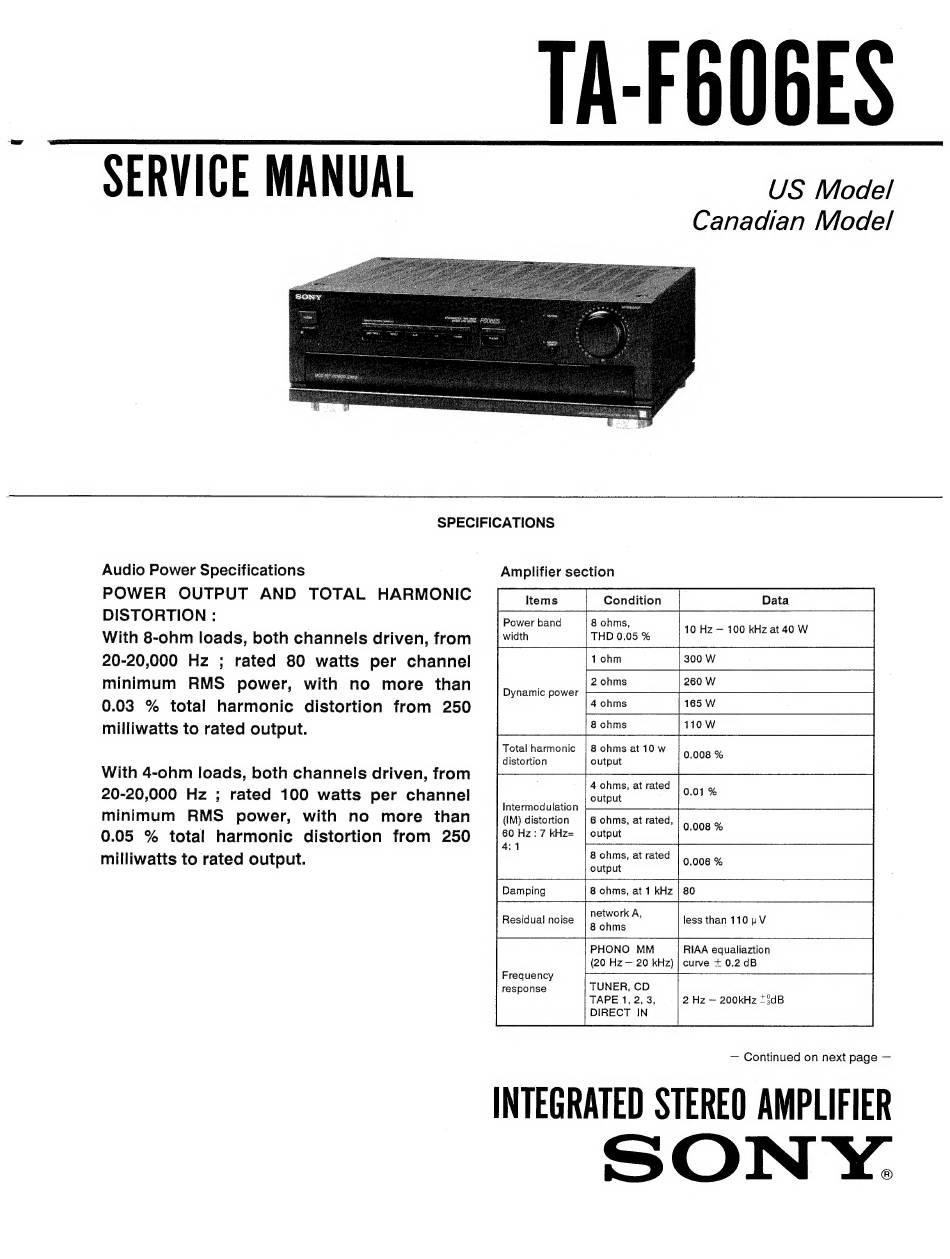

Sony TA-F606ES Service Manual

SERVICE MANUAL
TA-FGOGES
US Model
Canadian Model
SPECIFICATIONS
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION :
With 8-ohm loads, both channels driven, from
20-20,000 Hz ; rated 80 watts per channel
minimum RMS power, with no more than
0.03 % total harmonic distortion from 250
milliwatts to rated output.
With 4-ohm loads, both channels driven, from
20-20,000 Hz ; rated 100 watts per channel
minimum RMS power, with no more than
0.05 % total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Power band 8 ohms, _
width
THD 0.05 %
10 Hz — 100 kHz at 40 W
0.008 %
0.008 %
Dynamic power
8 ohms at 10 w
output
Total harmonic
distortion
4 ohms, at rated
output
Intermodulation
| (IM) distortion
60 Hz: 7 kHz=
4:1
6 ohms, at rated,
output
8 ohms, at rated
output
Damping 8 ohms, at 1 kHz | 80
network A,
8 ohms
Residual noise less than 110 pV
PHONO MM
(20 Hz — 20 kHz)
RIAA equaliaztion
curve + 0.2 dB
Frequency
response
TUNER, CD
TAPE 1, 2, 3,
DIRECT IN
2 Hz — 200kHz *3dB
— Continued on next page —
INTEGRATED STEREO AMPLIFIER
