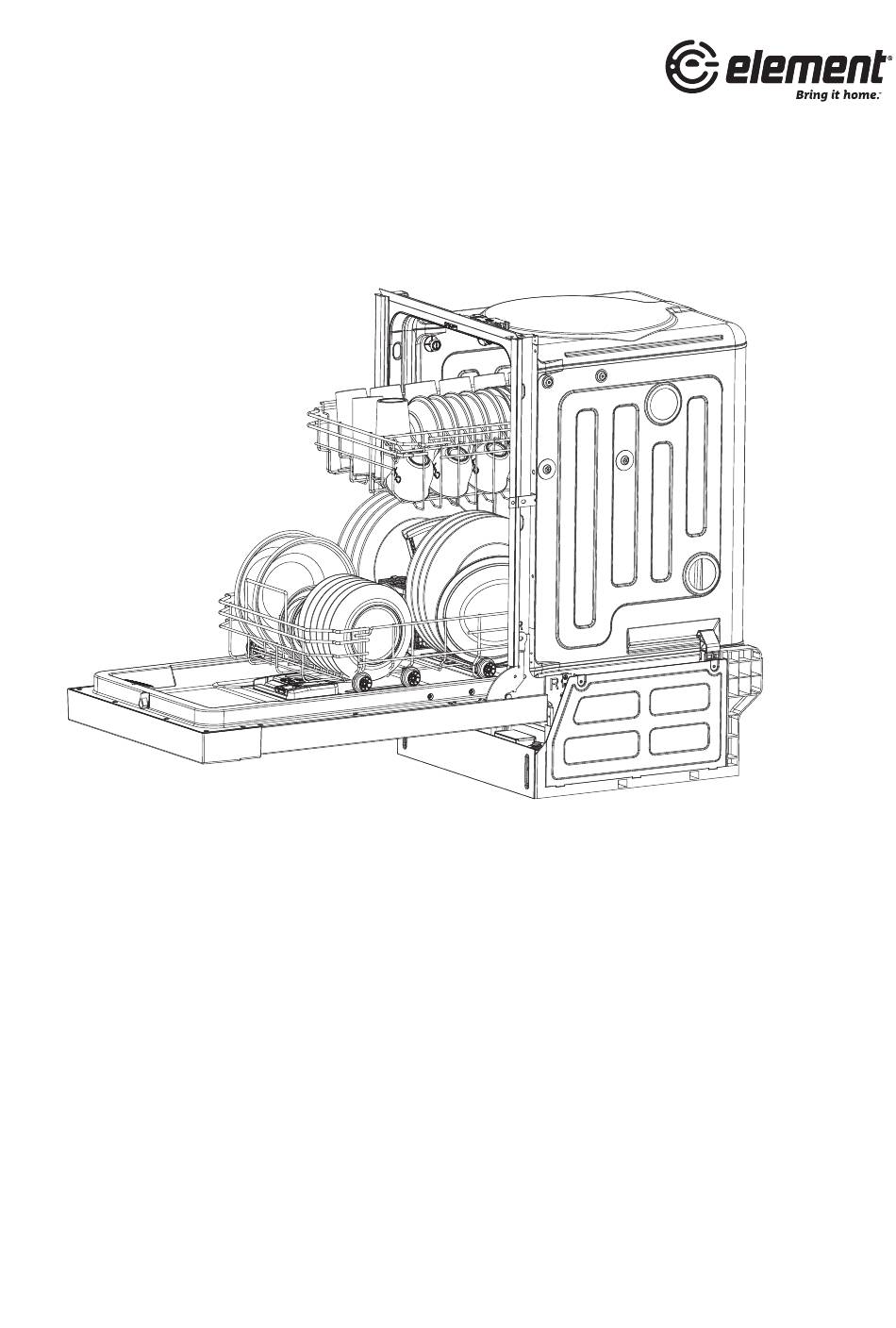

Dishwashe
Use & Care Manual
18 inch Built-In Dishwasher
r
ENB6631PEBS
ENB6631PEBW
ENB6631PEBB
T
able of Contents
Important Safety Instructions .....................1
Features of Your New Dishwasher ..............2-4
Operating Instructions ...........................
Preparing and Loading Dishes ...............
User Maintenance ...................................13-14
Troubleshooting ..................................
...
5-7
...
8-12
..
15-17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Element ENB6631PEBS
Summary of Contents for Element ENB6631PEBS
-
Page 1: Table Of Contents
Dishwashe Use & Care Manual 18 inch Built-In Dishwasher ENB6631PEBS ENB6631PEBW ENB6631PEBB able of Contents Important Safety Instructions .....1 Features of Your New Dishwasher ....2-4 Operating Instructions ......Preparing and Loading Dishes ....8-12 User Maintenance ........13-14 Troubleshooting ........15-17... -
Page 2: Important Safety Instructions
Failure to Do not touch the heating element during or observe these instructions may result in immediately after use, especially if the sanitize electrical shock. -
Page 3: Features Of Your New Dishwasher
120volts, 60Hz Rated Power Usage Wash motor 100W Heater 700W ~ 145 psi (0 04 ~ 1MPa) Water Feed Pressure Lock Lower Spray Arm Upper Basket Rinse Aid Dispenser Upper Spray Arm Cup Shelf Cutlery Basket Heating Element Lower Basket... - Page 4 FEATURES OF YOUR NEW DISHWASHER Features Filter System Your dishwasher has a multiple filter system. In the system there are three mesh filters. It can separate soiled water and clean water in different chambers. The multiple filter system helps your dishwasher to get better performance with less water and less energy.
- Page 5 FEATURES OF YOUR NEW DISHWASHER How Your Dishwasher Cleans Getting Started Your dishwasher cleans by spraying Load the dishwasher (See Dish Preparation and a mixture of hot water and detergent Loading sections). through the spray arms against soiled surfaces . Add detergent (See Filling the detergent dispenser).
-
Page 6: Operating Instructions
OPERATING INSTRUCTIONS 7.Wash Cycle Selections 1.Power button Switch on / off the power by pushing Normal This is standard program, this cycle is for 2.Cycles button regularly soiled dinner dishes or silverware. To select the program by pushing. Heavy This cycle is for hard-to-clean, heavily soiled 3.Delay Start button dishes, pots, pans, and dishes. - Page 7 OPERATING INSTRUCTIONS 9.Options 8.Warning indications Sanitize Rinse detergent deficient When the Sanitize function is selected, the When the indication lights on, please refill " " temperature of water will be maintained at the detergent from the hole located on the dispenser 156.2°F (69°C) max.
- Page 8 OPERATING THE DISHWASHER Status Window Error Indication H:01- H:24 In certain situations, which are critical to If the Delay Start option is selected, the machines function and safe oper- the number of delay start hours ation, the control will shut down and shows in the status window.
-
Page 9: Preparing And Loading Dishes
PREPARING AND LOADING DISHES Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove the remaining food particles. Burned-on food should be loosened before loading. Empty liquids from glasses and cups. Food s uch as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. - Page 10 PREPARING AND LOADING DISHES Loading the Lower Basket The lower basket has been especially designed for dinner dishes, soup bowls, plates, pots, lids, and casserole dishes. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper basket.
- Page 11 PREPARING AND LOADING DISHES Loading the Silverware Basket Adding A Dish The silverware basket can be divided To add or remove items after into three separate modules that can wash cycle starts: be used in both upper and lower racks 1.
- Page 12 PREPARING AND LOADING DISHES Filling the Rinse Aid Dispenser Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month.
- Page 13 PREPARING AND LOADING DISHES Filling the rinse aid reservoir Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. Rinse aid improves the drying performance of the dishwasher. Do not add regular detergent to the rinse aid reservoir.
-
Page 14: User Maintenance
Close the dishwasher and let the cycle fi nish. Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher). CAUTION Do not touch the HEATING ELEMENT during or immediately after use. CLEANING THE FILTERS 1. Turn off the dishwasher. - Page 15 USER MAINTENANCE 4. Remove any dirt or other remains from the fil ters, and then rinse them under running water. 5. Reassemble the fi lters in the reverse order of the dissasembly, replace the fi lter insert, and rotate clockwise to the close arrow. If the fil ter insert is not closed properly, its performance will be decreased.
-
Page 16: Troubleshooting
Troubleshooting Problem Possible cause Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power line is not connected Check and connect the power supply Dishwasher won't start Refer to Delay Start section in this manual to reset Delay Start option has been selected Deactivate the child lock, refer to child lock Child Lock activated... - Page 17 Troubleshooting Problem Possible cause Solution Detergent may be too old Use fresh detergent Detergent left in dispenser cup Load the dishes, making sure the spray arms Spray arm is blocked are not blocked Detergent dispenser will not Add the detergent and rinse aid as indicated by Improper operation of the detergent cover shut the manual...
- Page 18 Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Overflow. Some element of dishwasher leaks . Malfunction of heating element. Not reaching required temperature If overflow occurs, turn off the main water supply before calling a service.
- Page 19 Customer in order to obtain the requested Warranty service. Please have your model and serial number available, along with your date of purchase of the Product. To remain eligible for Warranty service, Original Customer may not return the Product or any part or component thereof to the retailer or Element without Element’s prior written consent.
- Page 20 WARRANTY TERM DEFINED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY OTHER PERSON, FIRM, OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON ELEMENT. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE, AT ELEMENT’S SOLE DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CUSTOMER.
- Page 21 (888) 842-3577 https://elementelectronics.com Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. All other trademarks are the property of their respective owner, who has not sponsored, endorsed, or approved this product. ©2024 Element Appliance Company, LLC. All rights reserved.
