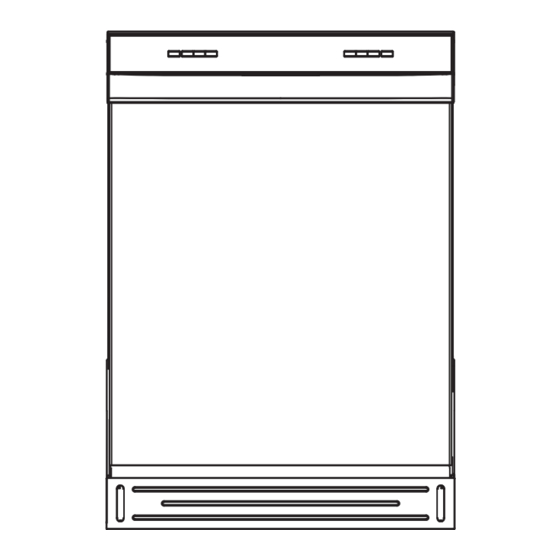

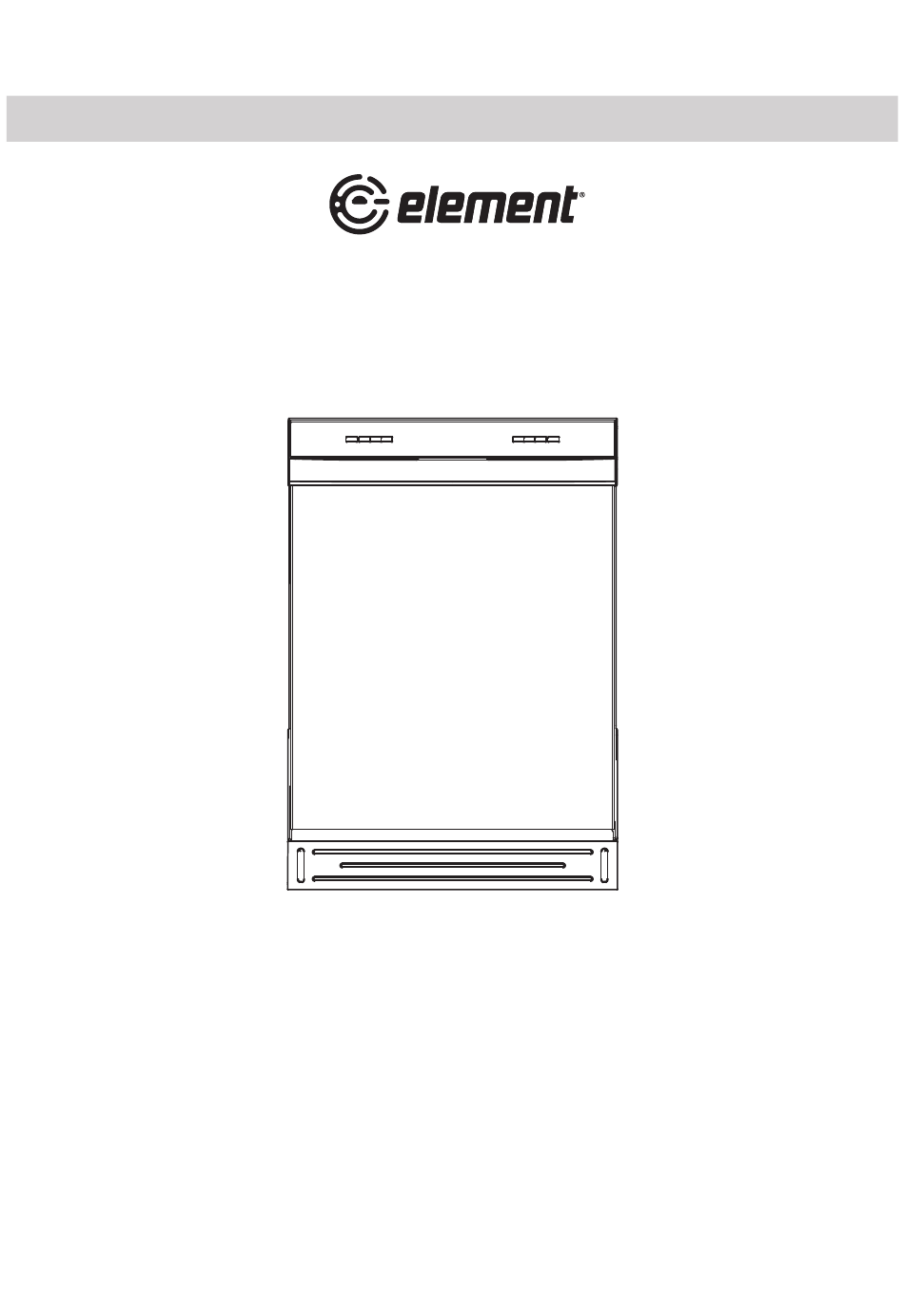

- Page 1 Dishwasher Use & Care Manual 24 inch Built-In H y b rid Dishwasher ENB5322HECW ENB5322HECB ENB5322HECS...
-
Page 2: Table Of Contents
DISHWASHER SAFETY ..............3 OPERATING REQUIREMENTS ............7 Location Requirements ................7 Water Supply Requirements ..............7 PARTS AND FEATURES ..............8 Filter System ....................9 Smart Wash System ................9 Adjustable Upper Rack ................10 START UP GUIDE ................11 How your Dishwasher Cleans ............. 11 Before Using Your Dishwasher ............11 Using Your New Dishwasher ............... -
Page 3: Dishwasher Safety
DISHWASHER SAFETY YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death. The level of risk is shown by the following indications. - Page 4 Items that are not dishwasher safe may melt and create a potential fire hazard. • Do not touch the heating element during or immediately after use. • Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 5 • Do not tamper with controls. • Do not abuse, sit on, or stand on the dishwasher door, or dish racks. • To reduce the risk of injury, do not allow children to play in or on a dishwasher. • Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more.
- Page 6 State of California Proposition 65 Warnings: WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov. WARNING Suffocation Hazard • Before you throw away your old appliance, remove the door or lid so that children cannot hide or get trapped inside your old appliance. •...
-
Page 7: Operating Requirements
OPERATING REQUIREMENTS ELECTRICAL REQUIREMENTS WARNING Electrical Shock Hazard • Electrically ground dishwasher. • Connect ground wire to green ground connector in terminal box. • Do not use an extension cord. • Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 8: Parts And Features
PARTS AND FEATURES Cup Shelf Upper Rack Tub Gasket Middle Spray Arm Silverware Basket Lower Spray Arm Lower Rack Rinse Aid Dispenser Heating Element Detergent Dispenser... -
Page 9: Filter System
SPECIFICATIONS Capacity: 12 Place Settings Dimensions (WxDxH): 23 3/5" x 22 7/10" x 33 3/4" (600x576x85 81.35 36.9 Weight Unpacked: lb ( Power Supply: 120 volts, 60 Hz Rated Power Usage: Wash motor 50 W Heater 840 W Water Feed Pressure: 20 - 80 psi (138 - 552 kPA) FILTER SYSTEM Your dishwasher has a multiple filter system, which helps your dishwasher... -
Page 10: Adjustable Upper Rack
ADJUSTABLE UPPER RACK The Adjustable Upper Rack feature allows you to load taller items in either the upper or lower rack. The upper rack of your dishwasher can be adjusted 2" (5.08 cm). Adjusting the clearance of the Upper Rack increases or decreases the clearance of the lower rack, as shown. -
Page 11: Start Up Guide
START UP GUIDE IMPORTANT: • Properly dispose of/recycle all packing material. • Read this entire User Manual. You will find important safety information and useful operating tips. HOW YOUR DISHWASHER CLEANS Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. -
Page 12: Controls
CONTROLS NOTE: when the door is closed. Power Press this button to turn on or turn off the dishwasher. Cycle+ / Cycle- Press this button to select corresponding washing program code. → → → → → : Heavy Normal Delicate Quick Rinse Heavy Cycle+ →... - Page 13 ADDITIONAL FEATURES Delay+ + + = + The Delay Time feature allows you to program the dishwasher to begin the selected wash cycle 3, 6 or 9 hours later. Press the DELAY control repeatedly to toggle between ( 3h/6h/9h ). The LED next to the selected time will illuminate.
- Page 14 INDICATOR LIGHTS Rinse Aid The Rinse Aid indicator light illuminates when the rinse aid level is low. Rinse Aid should be added to the Rinse Aid dispenser. Sanitized The Sanitized indicator light illuminates when the cycle using the Sanitize option is finished. The light turns off turns off when the door is opened and then closed or any button is pressed.
-
Page 15: Cycle And Option Charts
CYCLE AND OPTION CHARTS Depending on the Cycle selected, the Options available for selection will illuminate. Cycle times are approximate and will vary depending on the wash cycle and options selected. NOTE: Added Options can add more time and use more water. Hot Water is necessary to activate the dishwasher detergent and melt fatty food residue. -
Page 16: Loading Suggestions
DISHWASHER LOADING PREPARE DISHES • Empty liquids from glasses and cups. • Remove leftover food and other items from the dishes and discard. • It is not necessary to hand-rinse dishes before loading them into the dishwasher with the following exceptions: •... -
Page 17: Upper Rack
UPPER RACK The upper dishwasher rack is designed for cups, glasses, small plates, bowls and plastic items marked dishwasher safe. The upper rack can be easily adjusted 2" (5 cm) up or down to accommodate taller items in either in the top or bottom rack. ADJUST UPPER RACK IMPORTANT: •... -
Page 18: Load Upper Rack
LOAD UPPER RACK NOTE: The features on your dishwasher rack may vary from the drawings shown. 10 Place Setting 8 Place Setting 12 Place Setting 8 Place Setting(DOE) IMPORTANT: Make sure the items loaded in the upper rack do not interfere with the rotation of the middle spray arm located beneath the upper rack. -
Page 19: Lower Rack
LOWER RACK The lower rack is designed for plates, soup bowls, cookware and bakeware. The adjustable upper rack allows you to load items up to 12.6” in height in the lower rack. IMPORTANT: Items in the lower rack must be placed so that they do not interfere with the rotation of the spray arms, block the water inlet, or keep the water spray from reaching the detergent dispenser. - Page 20 LOAD LOWER RACK NOTE: The features on your dishwasher rack may vary from the drawings shown. • Do not load glasses, cups, or plastic items in the lower rack. • Load small items in the lower rack only if they are secured in place. •...
-
Page 21: Loading Silverware
LOADING SILVERWARE NOTES: • Do not load silver or silver-plated silverware with stainless steel. These metals can be damaged by contact with each other during washing. • Some foods (such as salt, vinegar, milk products, fruit juices, etc.), can pit or corrode silverware. DO NOT WASH ALUMINUM COOKWARE IN YOUR DISHWASHER. -
Page 22: Recommended Load Patterns
For Best Results: • Load items with handles down, using the separators to prevent silverware from nesting. • Place small items such as baby bottle caps, jar lids, corncob holders, etc. in the section(s) with hinged cover(s). Close the cover to hold small items in place. - Page 23 Spoons Knives Salad Forks Forks Large Spoons Large Forks 8 Place Setting 10 Place Setting 12 Place Setting 8 Place Setting(DOE)
-
Page 24: Dishwasher Use
DISHWASHER USE PROPER USE OF DETERGENT IMPORTANT: • Use automatic dish washing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance. • Add detergent just before starting a cycle. • Store detergent tightly closed in a cool, dry place. -
Page 25: Proper Use Of Rinse Aid
Press down on the top of the cover to secure. HOW MUCH DETERGENT TO USE The amount of detergent to use depends on the soil level of your load, the type of detergent used and the hardness of your water. •... - Page 26 To refill the rinse aid dispenser Lift up the end tab of rinse aid cover to open. Fill the rinse aid dispenser with liquid rinse aid until full. DO NOT overfill. NOTE: Use the viewing port when filling the rinse aid reservoir. WARNING Do not fill the reservoir above the full level indicator.
-
Page 27: Washing Special Items
WASHING SPECIAL ITEMS If you have doubts about washing a particular item, check with the dishware manufacturer to make sure it is dishwasher safe. Dishwasher Material Comments Safe Aluminum Possible High water temperature and detergents can affect finish of anodized aluminum. Unfinished aluminum will be discolored. -
Page 28: Dishwasher Care
Dishwasher Material Comments Safe Sterling Run a rinse cycle if not washing immediately. Silver or Prolonged contact with food containing Silver Plate salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish. Mistake on my end. Didn't realize that this part of the table was a continuation of the table on the previous page . - Page 29 CONTROL PANEL Clean the Control Panel gently with a lightly dampened cloth. CLEANING THE FILTERS Check and clean the filters regularly for best performance. Remove the lower dishwasher rack. Rotate the Cylinder filter counterclockwise a quarter turn and lift up to remove.
-
Page 30: Storing
DRAIN AIR GAP Check the drain air gap anytime your dishwasher isn’t draining well. Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. If a drain is clogged, a drain air gap prevents water from backing up into the dishwasher. -
Page 31: Troubleshooting
Prepare for Use: Reconnect the water, drain and electrical power supply. Turn on water and electrical power supply. Fill detergent cup and run the dishwasher through a heated wash cycle. Check the connections for leaks. TROUBLESHOOTING DISHWASHER NOT OPERATING PROPERLY PROBLEM POSSIBLE CAUSE SOLUTION... - Page 32 PROBLEM POSSIBLE CAUSE SOLUTION Dishwasher The water supplied to Run the water in the seems to run the dishwasher is not hot adjacent sink until it gets too long enough. hot before turning on the dishwasher. The dishwasher runs longer while heating water, and a delay automatically occurs in some wash and rinse cycles until the...
- Page 33 PROBLEM POSSIBLE CAUSE SOLUTION Grinding, A hard object or powder IMPORTANT: Clear glass grating, detergent granules have is hard to see in water. crunching entered the wash module. and could result in a cut or buzzing wound. sounds Using care, remove the hard object.
- Page 34 PROBLEM POSSIBLE CAUSE SOLUTION Food Detergent is too Detergent must be fresh to be effective. residue old. Store detergent in a cool, dry area. remains Detergent is Do not allow detergent to sit for on the caked in the several hours in a wet dispenser. Clean dishes dispenser.
- Page 35 PROBLEM POSSIBLE CAUSE SOLUTION Spotting and Detergent is too old. Detergent must be fresh and filming on dishes dry to be effective. Store (cont.) detergent in a cool, dry area. Home water Water pressure to the home pressure is too low should be 20 to 80 psi to fill dishwasher (138 to 552 kPa) for proper...
-
Page 36: Error Codes
DISHES ARE DAMAGED DURING A CYCLE PROBLEM POSSIBLE CAUSE SOLUTION Dishes are chipped Dishes not loaded Load the dishes and properly. glasses so they are NOTE: Some types of stable and will not strike china and glassware together from washing might be too delicate action. -
Page 37: Warranty
(“Warranty”) as follows: * PLEASE NOTE – Proof of purchase evidencing the date of purchase by the Original Purchaser from an authorized Element retailer (“Valid Proof of Purchase”) is required for all Warranty service. The express Warranty set forth herein is subject to all terms and condi�ons set forth below. - Page 38 United States, and only applies to Product if it was purchased and serviced in the United States. The addi on of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended func on of the Product, and therefore may void the Warranty.
- Page 39 Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. All other trademarks are the property of their respective owner, who has not sponsored, endorsed, or approved this product. ©2023 Element Appliance Company, LLC. All rights reserved.
