Paradyne 6212 Quick Installation Instructions

4-port routers

Hide thumbs Also See for 6212:

Installation

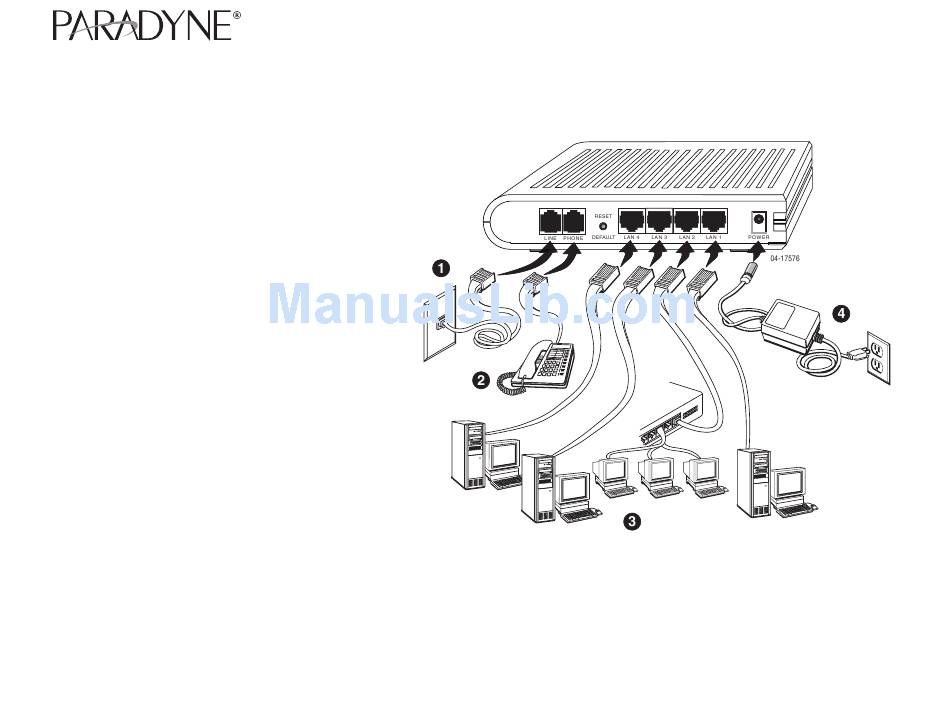

➊

Connect the ADSL line to the LINE jack using the

provided RJ11 cable.

➋

Optionally, connect a phone to the PHONE jack. This

phone does not require a POTS splitter.

➌

Connect PCs, hubs, and switches to the LAN ports.

Either a straight-through Ethernet cable (provided) or a

crossover cable can be used. The router automatically

determines the type of signal required.

➍

Attach the power adapter. The supplied power adapter

may look different than the one illustrated here.

See the user's guide on the CD for more information.

Table of Contents

Do you have a question about the 6212 and is the answer not in the manual?

Page 1 6212 and 6382 4-Port Routers Quick Installation Instructions Document Number 6212-A2-GZ11-00 September 2004 Installation ➊ Connect the ADSL line to the LINE jack using the provided RJ11 cable. ➋ Optionally, connect a phone to the PHONE jack. This phone does not require a POTS splitter.
Page 2 Software and destroy the original and all copies of the Software in the possession of Licensee together with all documentation and related materials. 10. This Agreement shall be governed by the laws of the State of Florida, without regard to its provisions concerning conflicts of laws. *6212-A2-GZ11-00* *6212-A2-GZ11-00*...
